Remote operation Via HART (e.g. using HART modem and FieldCare)
2
3
USB
31
32
CM44x/CM44xR/CSFxx/CSPxx/CA80
250 ... 500 W
1
A0024450

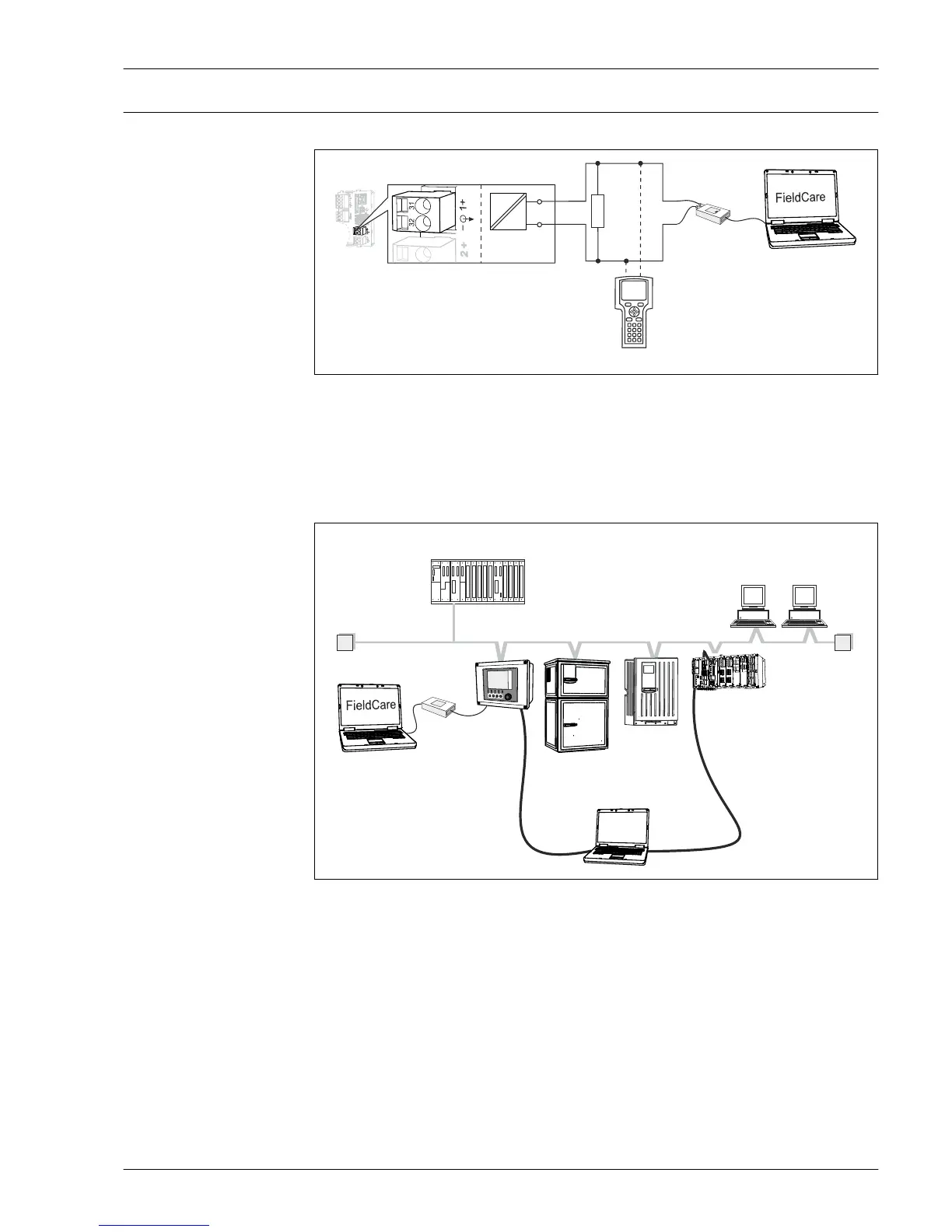

 37 HART using modem
1 Device module Base L, H or E: current output 1 with HART
2
HART modem to connect to PC, e.g. Commubox FXA191 (RS232) or FXA195
1)
(USB)
3 HART handheld terminal
1)
Switch position "on" (substitutes the resistor)
Via PROFIBUS DP
FXA291
Master class 1
(PLC, DCS)
T T
Ethernet
PROFIBUS DP
(RS485)
Master class 2 (FieldCare, PDM)
CM442/
CM444/
CM448
CSF48
FieldCare /
Webbrowser
CM442R/
CM444R/
CM448R
CA80
A0024451
 38 PROFIBUS DP
T Terminating resistor
