Deltabar S FOUNDATION Fieldbus Installation
Endress+Hauser 9
3.4 Assembling and mounting the "separate housing" version
P01-xMD7xxxx-11-xx-xx-xx-011

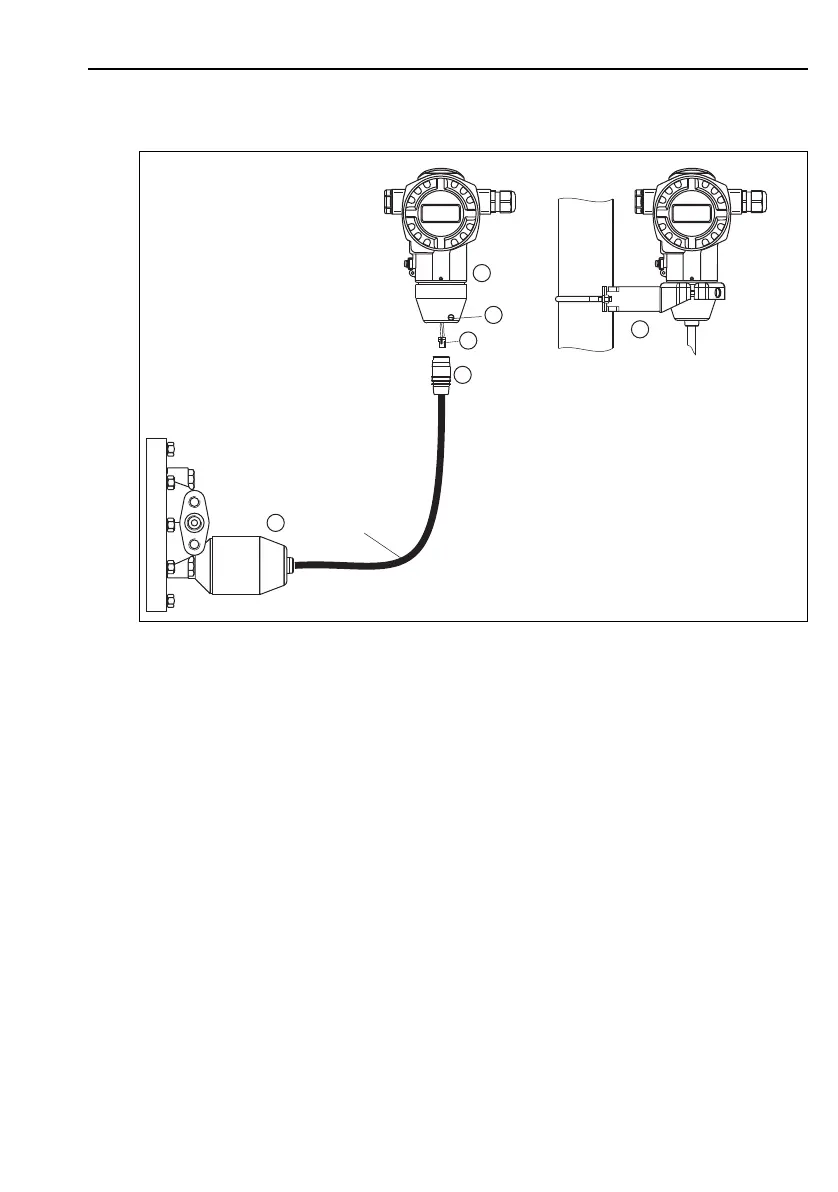

Fig. 4: "Separate housing" version
1 In the "separate housing" version, the sensor is supplied with process connection and cable fitted.
2 Cable with connection jack
4Plug
5Locking screw
6 Housing fitted with housing adapter, included
7 Mounting bracket suitable for wall and pipe mounting, included
Assembly and mounting
1. Connect plug (item 4) into the corresponding connection jack of the cable (item 2).
2. Plug the cable into the housing adapter (item 6).
3. Tighten the locking screw (item 5).
4. Mount the housing on a wall or pipe using the mounting bracket (item 7).
When mounting on a pipe, tighten the nuts on the bracket uniformly with a torque of at
least 5 Nm.
Mount the cable with a bending radius (r) 120 mm.
