Deltabar S FOUNDATION Fieldbus Operation
Endress+Hauser 15
5.2 Operating elements
5.2.1 Position of operating elements
With regard to aluminum housings and stainless steel housing (T14/T15), the operating key is
located either outside the device under the protection cap or inside on the electronic insert. In
hygienic stainless housings (T17), the operating key is always located inside on the electronic
insert. Additionally, three operating keys are located on the optional onsite display.
P01-PMx7xxxx-19-xx-xx-xx-075

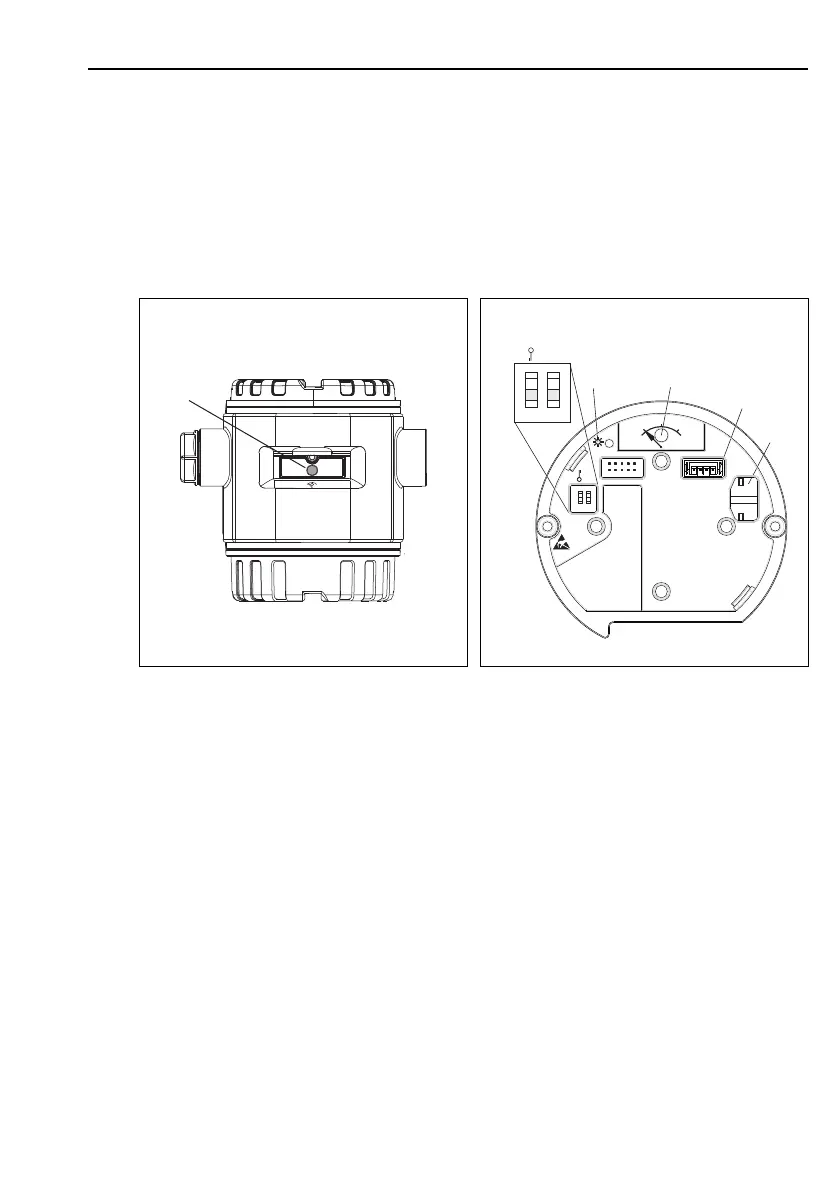

Fig. 6: Operating key, external under the protective flap
1 Operating key or position adjustment (zero
point-correction) or total reset
P01-xxxxxxxx-19-xx-xx-xx-106
Fig. 7: Operating key and operating elements, internal
1 Green LED to indicate value is accepted
2 Operating key for position adjustment (zero
point-correction)
3 Slot for optional display
4 Slot for optional HistoROM
®
/M-DAT
5 DIP-switch for locking/unlocking
measured-value-relevant parameters
6 DIP switch for simulation mode
HW
21
PC
1
2
➀➁
➃
on
off
➂
➄
➅
Sim.
Sensor
on
off
Simulation
0%
Zero
Display
Histo
ROM
