Deltabar S FOUNDATION Fieldbus Operation
Endress+Hauser 17
5.3 Onsite operation via onsite display
5.3.1 Structure of the operating menu
The menu is split into four levels. The three upper levels are used to navigate while you use the
bottom level to enter numerical values, select options and save settings. For the entire menu
see CD-ROM, Operating Instructions BA00301P.
The structure of the OPERATING MENU depends on the measuring mode selected, e.g. if the
"Pressure" measuring mode is selected, only the functions necessary for this mode are displayed.
P01-xxxxxxxx-19-xx-xx-xx-145

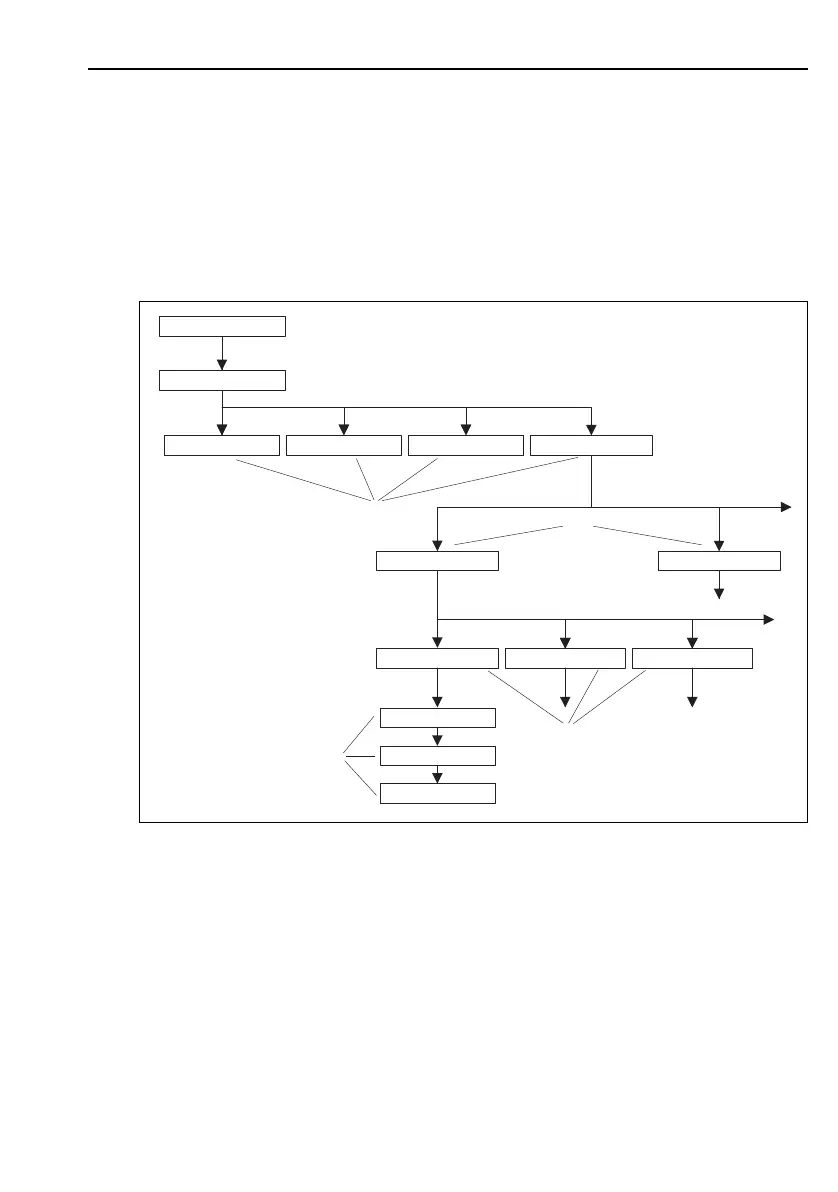

Fig. 8: Structure of the operating menu
1 1. Selection level
2 2. Selection level
3Function groups
4 Parameter
➀
➂
➁
➃
Measured value
GROUP SELECTION
DISPLAYSETTINGS
EXTENDED SETUP
POS. ZERO ADJUST
POS. INPUT VALUE
CALIB. OFFSET
POSITION ADJUSTMENT BASIC SETUP
OPERATING MENU
QUICK SETUP
MEASURING MODELANGUAGE
