Deltabar S FOUNDATION Fieldbus Commissioning
Endress+Hauser 31
6.5 Level measurement
6.5.1 Preparatory steps
Open container
!
Note!
• The Deltabar S PMD70, PMD75, FMD76 and FMD77 are suitable for level measurement in
an open container.
• FMD76 and FMD77: the device is ready for calibration immediately after opening the shutoff
valves (may or may not be present).
• PMD70 and PMD75: before calibrating the device, the impulse piping must be cleaned and
filled with fluid. See the following table.
Valves Meaning Installation
1 Fill container to a level above the lower tap.
P01-xMD7xxxx-11-xx-xx-xx-003

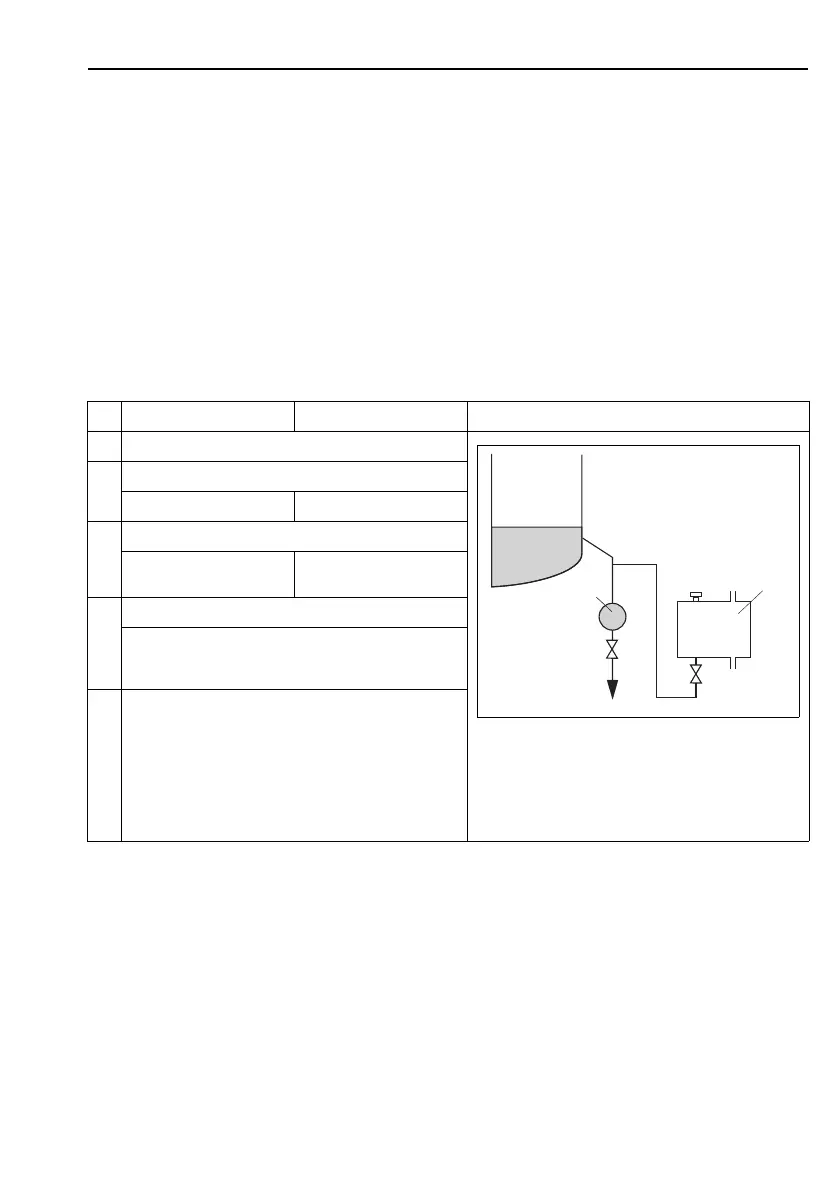

Fig. 11: Open container
I Deltabar S, PMD70 or PMD75
II Separator
6 Vent valves on Deltabar S
A Shutoff valve
B Drain valve
2 Fill measuring system with fluid.
Open A. Open shutoff valve.
3Vent device.
Open 6 briefly, then close it
again.
Fill device completely with
fluid and remove air.
4 Set measuring point in operation.
Now
– B and 6 are closed.
– A is open.
5 Carry out calibration.
See Page 34, Section 6.5.2.
+
A
B
6
II
I
+
–
p
atm
