Commissioning Deltabar S FOUNDATION Fieldbus
32 Endress+Hauser
Closed container
!
Note!
All Deltabar S versions are suitable for level measurement in closed containers.
FMD76 and FMD77: the device is ready for calibration immediately after opening the shutoff
valves (may or may not be present).
FMD78: the device is ready for calibration immediately.
PMD70 and PMD75: before calibrating the device, the impulse piping must be cleaned and
filled with fluid. See the following table.
Valves Meaning Installation
1 Fill container to a level above the lower tap.
P01-xMD7xxxx-11-xx-xx-xx-004

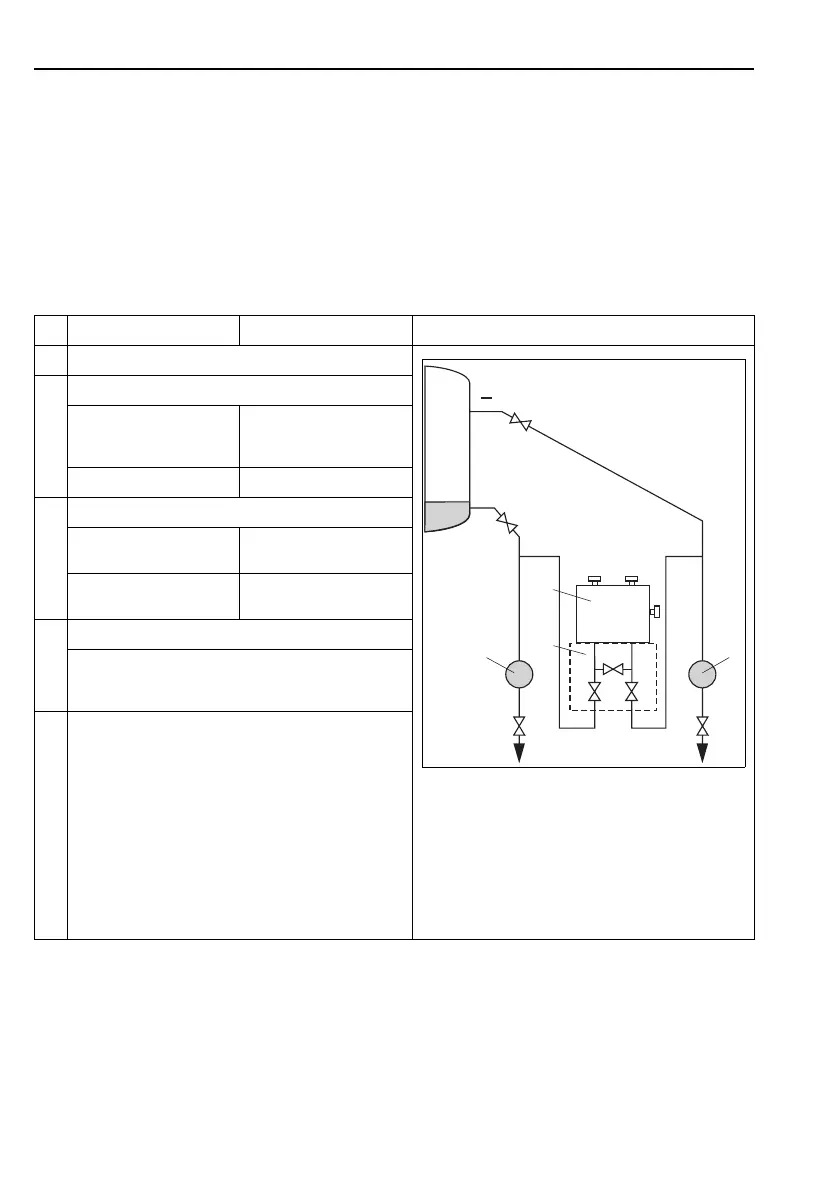

Fig. 12: Closed container
I Deltabar S, PMD70 and PMD75
II Three-valve manifold
III Separator
1, 2 Drain valves
2, 4 Inlet valves
3 Equalizing valve
6, 7 Vent valve on Deltabar S
A, B Shutoff valve
2 Fill measuring system with fluid.
Close 3. Shut off positive side from
negative side.
Open A and B. Open shutoff valves.
3 Vent positive side (empty negative side if necessary).
Open 2 and 4. Introduce fluid on positive
side.
Open 6 and 7 briefly, then
close them again.
Fill positive side completely
with fluid and remove air.
4 Set measuring point in operation.
Now
3, 6 and 7 are closed.
2, 4, A and B are open.
5 Carry out calibration.
See Page 34, Section 6.5.2.
