1.5 Unpacking
• Verify that the contents are undamaged!
Inform the post office or forwarding agent as
well as the supplier of any damage.
• Check that the delivery is complete and
agrees with the shipping documents as well
as the unit type and version matches the
nameplate (see fig. 1.1).
The scope of supply for Mycom CLM 121
(panel-mounted instrument) includes:
• 2 housing mounting kits
(order no. 50047795)
• 1 submin D connector
(only for instruments with digital interface;
order no. 50051998)
• Simulating resistor 3.3 Ω
(order no. 50061325)
• Operating instruction(s)
• Instrument identification card(s)
• Simulator for line balancing
2. Measuring system
The measuring system consists of:
• a 2-electrode conductivity measuring cell,
e.g. CLS 12, to be installed into pipe, tank
or vessel
• the appropriate conductivity measuring
cable, type KMK, SMK or CYK 7
The scope of supply for Mycom CLM 151
includes:
• 1 housing mounting kit
(order no. 50061357)
• 1 measuring point marking tag
(order no. 50061359)
• Operating instruction(s)
• Instrument identification card(s)
• Simulator for line balancing
If you have any questions, consult your
supplier or the Endress+Hauser sales agency
in your area (see back page of these
operating instructions for addresses).
• alternatively
– the conductivity transmitter Mycom
CLM 121 in panel-mounted housing
– the conductivity transmitter Mycom
CLM 151 in field housing

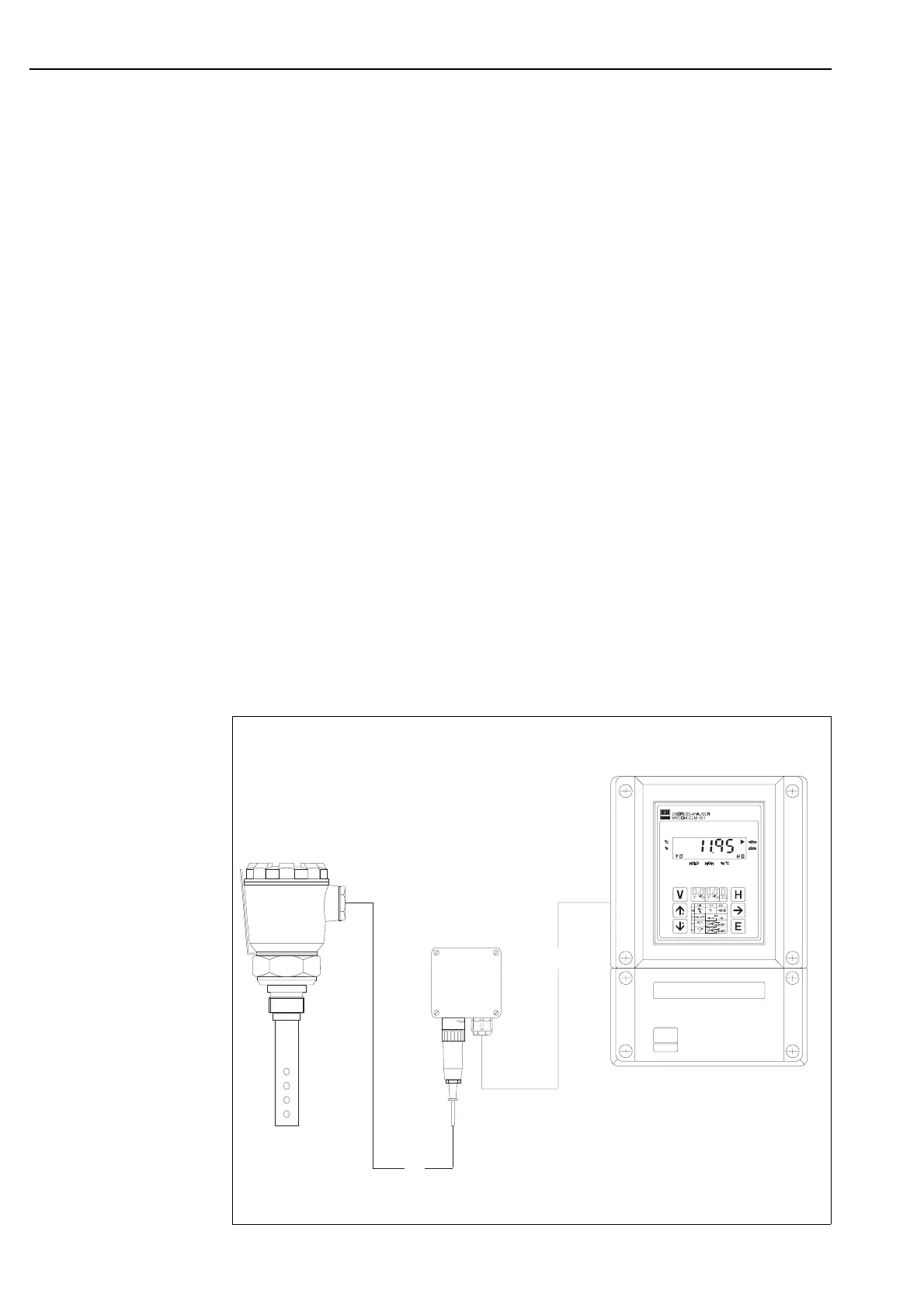

Fig. 2.1: Example of a complete
measuring system with:
➀
Conductivity transmitter
Mycom CLM 151
➁
2-electrode conductivity-
measuring cell. CLS 12 with Pg 16
cable gland
➂
Junction box VS (option)
with Pg 13.5 - cable gland
and SXP-plug, for plug-in
connection between Mycom and
measuring cell CLS 12
➃
Conductivity measuring cable,
e.g. SMK or KMK
➀
LM151SYS.EPS
➂
➃
➁
➃
