Endress+Hauser mycom CLM 121 - Types of Mounting

3.2 Types of mounting
3.2.1 Panel mounting of
Mycom CLM 121
The required cutout according to DIN 43 700
is 92
+0,5
x 92
+0,5
mm.
The instrument is mounted by means of the
supplied housing mounting kit.
3.2.2 Panel mounting of
Mycom CLM 151
The instrument is mounted by means of the
supplied housing mounting kit (see fig. 3.4).
The sealing of the panel cutout requires a flat
packing (see chapter 9.1).
Panel mounting requires a cutout of
161
+0,5
x 241
+0,5
mm (W x H).
3.2.3 Wall mounting of
Mycom CLM 151
Install mounting brackets on rear of unit
according to fig. 3.3.
For housing and mounting dimensions of the
field housing see figures 3.2 and 3.5.

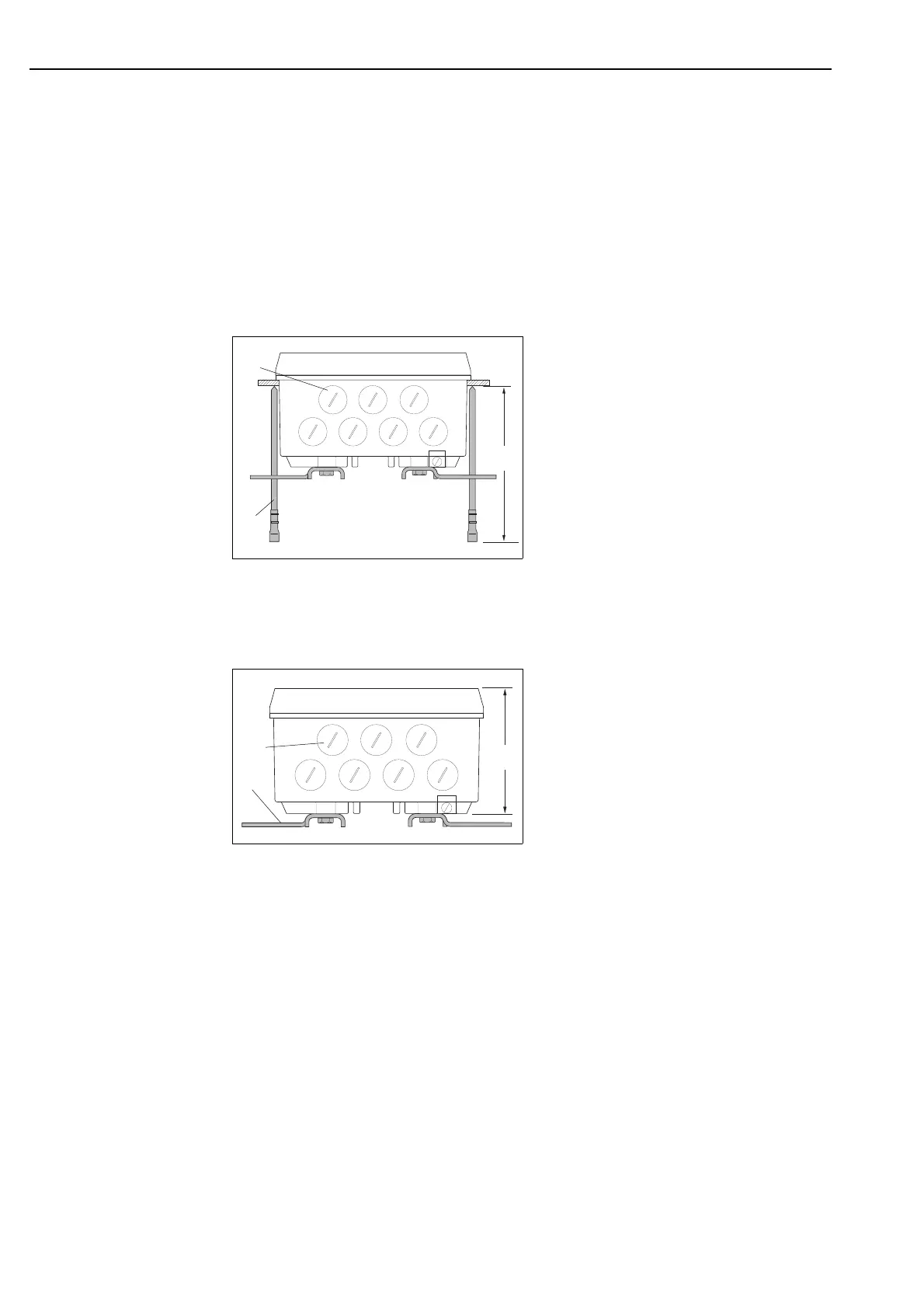

Fig. 3.4: Bottom of field housing
with straining screws
installed for panel
mounting
➀
Screw plugs for Pg 13,5
➁
Straining screws
Fig. 3.5: Bottom of field housing
with brackets installed for
wall mounting
➀
Screw plugs for Pg 13.5
➁
Mounting brackets
PM151A06.EPS
➀
➁
111
132
PM151A05.EPS
➀
➁
3. Installation
mycom CLM 121 / 151 - CD/MM
6
