3.2.4 Post mounting
The field housing Mycom CLM 151 can be
mounted on vertical or horizontal tubing with
max. diameter of 70 mm by means of the
supplied housing mounting kit.
Warning:
Field mounting
Do not expose the front of the
device to direct sunlight.
In this case use the weather
protection cover
(see chapter 3.3.1).
The parts of the housing mounting kit have to
be installed at the rear of the unit in
accordance with fig. 3.6 and 3.7.
For further accessories available for Mycom
CLM 151 please refer to chapter 9.1.
PM151A12.EPS
➀
➁
➂
➃
max.
∅
70
PM151A11.EPS
max.
∅
70
PM151A13.EPS
max.
∅
70
92
➀
➁
➂
➃
PM151A10.EPS
max.
∅
70

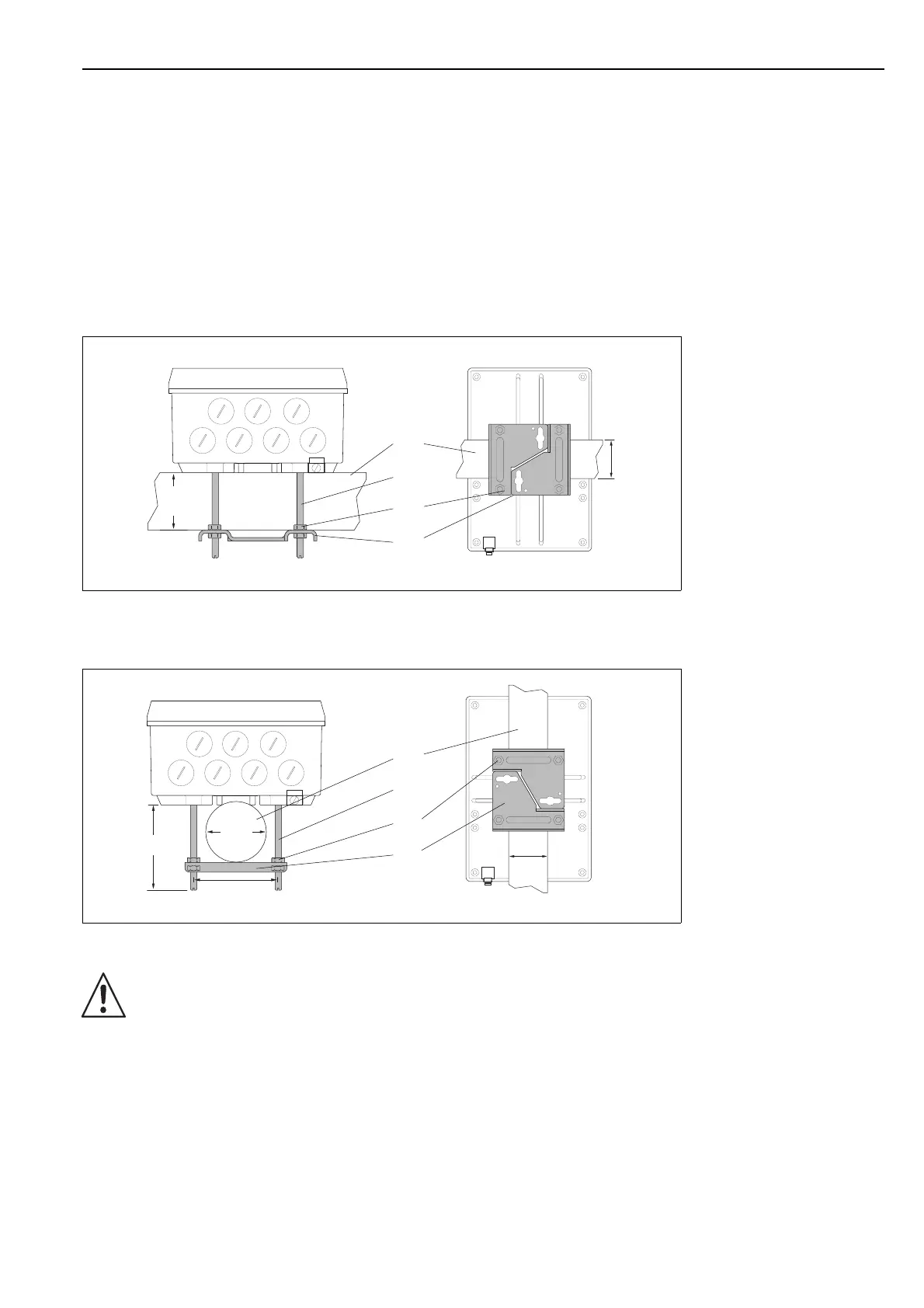

Fig. 3.6: Installation of field housing
on horizontal tubing
left: bottom side
right: rear side
➀
Horizontal tubing
➁
Threaded rods M6 x 92
➂
Mounting screw M6
➃
Mounting brackets
Fig. 3.7: Installation of fied housing
on vertical tubing
left: bottom side
right: rear side
➀
Vertical tubing
➁
Threaded rods M6 x 92
➂
Mounting screws M6
➃
Mounting brackets
BE1LM151.CHP
mycom CLM 121 / 151 - CD/MM
3. Installation
