3.3 Accessories for installation
3.3.1 Weather protection cover
CYY 101
The weather protection cover CYY 101 can be
installed directly on upright post of assembly
holder CYH 101 by means of 2 screws (M8),
see fig. 3.7, mounting position ➀ .
Installation on vertical or horizontal tubing and
upright posts (max. diameter 70 mm) requires
an additional round post mounting kit (see
chapter 9.1).
3.3.2 Junction box VS
The installation of junction box VS with plug-in
socket is required to connect the signal line of
the 2-electrode conductivity measuring cell,
e.g. CLS 12 with the transmitter Mycom
CLM 151.
The junction box VS has a 7-pole plug (type
SXP) for connection of measuring cell to VS
junction box.
Ingress protection of junction box VS is IP 65.
∅
8
90
70
M6
30
66
55
YH-101-7.EPS
80
160
VS-B02.EPS
82
➁➀
300
270
320
➂
➃
➀
YH-101-6.EPS
➁
➁ ➁
➁
➃
CYH101-1.EPS

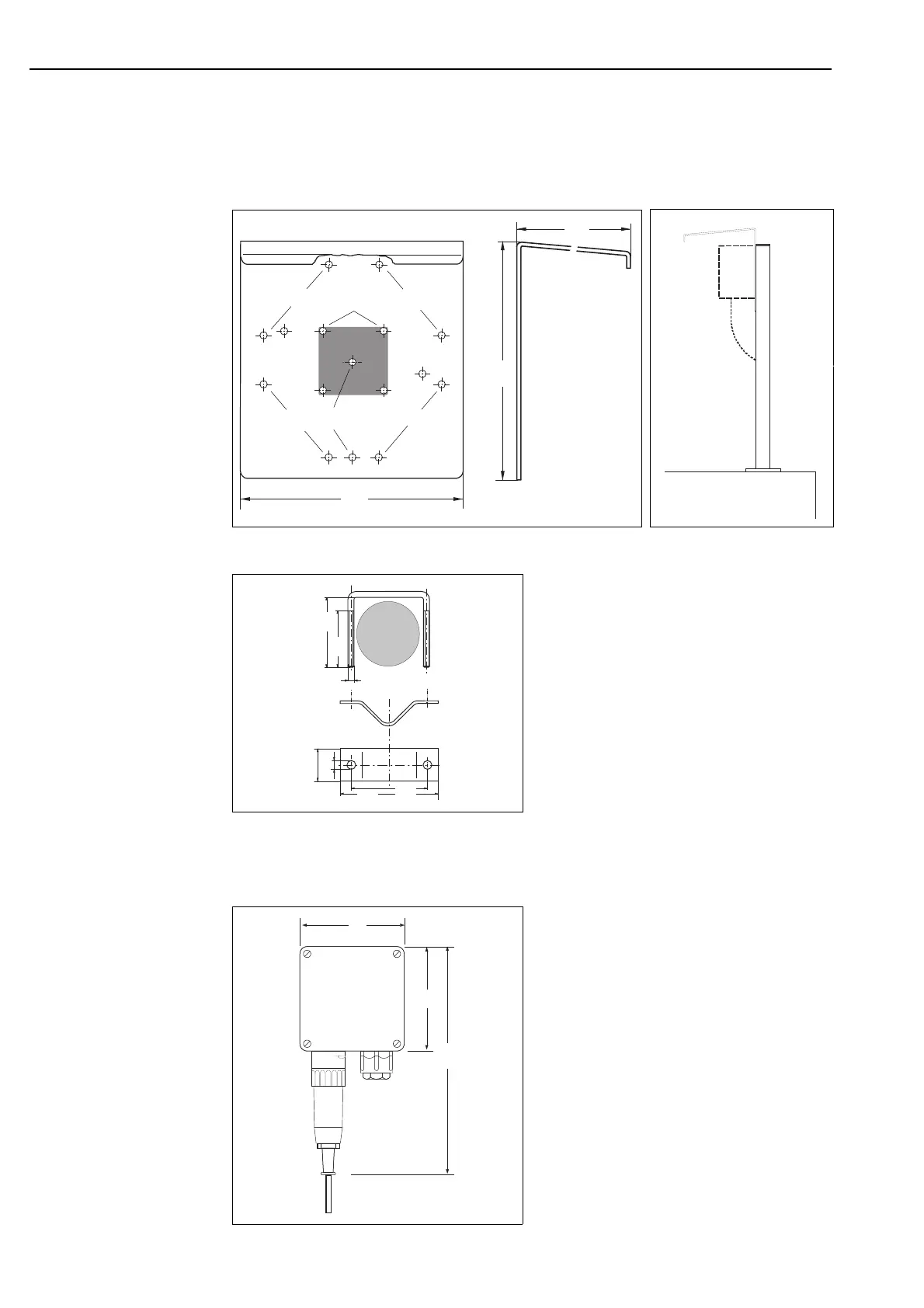

Fig. 3.8: Weather protection cover
(left) CYY 101 with dimensions
and mounting positions for
➀
Installation on upright post with
2 screws M8
➁
Installation on vertical or horizontal
pipe with 2 round post mounts
➂
Installation of conductivity
transmitter Mycom CLM 151
➃
Wall mounting of conductivity
transmitter Mycom CLM 151
Fig. 3.9 Weather protection cover
(right) CYY 101
with Mycom CLM 151
mounted on upright post
Fig. 3.10: Post mounting kit for
weather protection cover
CYY 101, if not mounted to
assembly holder CYH 101
Fig. 3.11: Junction box VS for
connection of signal line of
2-electrode conductivity
measuring cell with the
transmitter
➀
SXP plug
➁
Pg 13.5 cable gland
