Conversion transmitter Promag 50/53 W, P, H to Promag 55 remote version
Endress + Hauser 5
E Assembly the transmitter
F Commissioning the device
• The measuring period and especially the integration time, depending on pipe diameter and the main frequency (50Hz/60Hz), have
to be set according to the table in chapter I. (Some parameter requiere the service code)
• Fill in the added form "Storage" and send it to the given adress for archiving (Data storage in the data base of Endress+Hauser).
• When Promag 50 is converted: Enter the data from the parameter list.
• When Promag 53 is converted: Function T-DAT SAFE/LOAD
→ use LOAD Selection.
• If necessary make an empty-pipe/full-pipe adjustment according to the description in the Operating Instructions.
• The conversion is complete.
G Changing the identification
1. After conversion the label has to be changed!

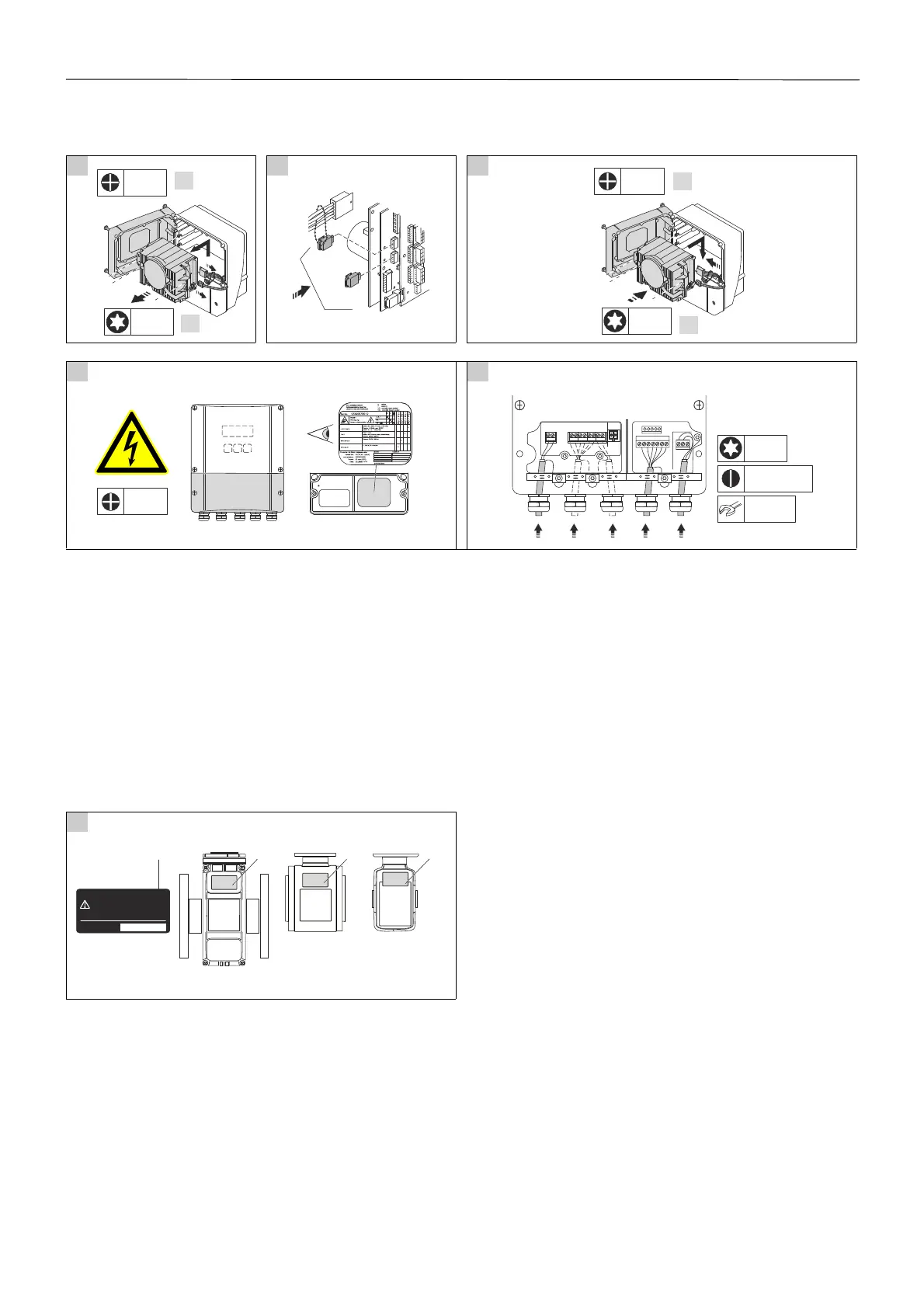

Affix the notice label (1) as indicated in the graphic.
1 2 3
A0011684 A0014645 A0011961
4 5
A0011963 A0011964
1
A0014774
H
DN 40...100
(1 ...4")
1/2
H
DN 2...25
(1/12"...4")
W/P/S
1
1
1
Instrument modified,
for the new Order-Code specifications of the
transmitter, see nameplate on transmitter.
für die neue Order-Code-Ausprägungen des
Messumformers ist das Typenschild auf
dem Messumformer zu beachten
Gerät wurde umgebaut,
Instrument modifié,
pour les nouvelles spécifications du code de
commande du transmetteur, observez
l’etiquette signalétique sur le transmetteur
Date of modification:
Umbaudatum:
Date de modification:
1
