Endress+Hauser Soliphant M FTM51 Technical Information

Soliphant M FTM50, FTM51, FTM52
Endress+Hauser 11

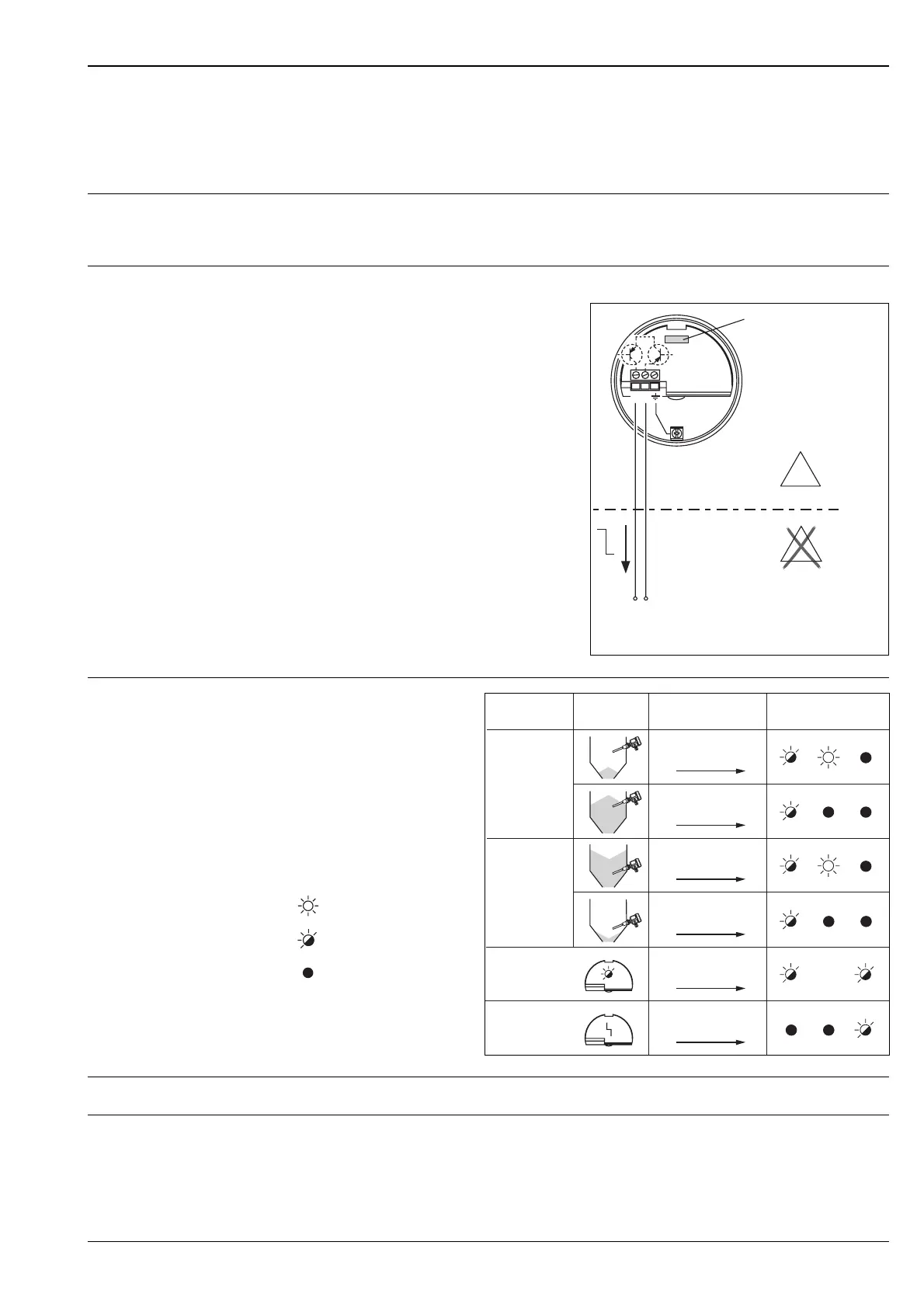

FEM58 electronic insert (NAMUR H-L edge)
!
Note!
Only in combination with standard fork (fork length 155 mm).
Power supply Power consumption: < 6 mW at I < 1 mA; < 38 mW at I = 2.2...4 mA
Separation voltage: 0.5 kV
Connection data interface: IEC 60947-5-6
Electrical connection Two-wire connection for separate switching unit
Output signal
Signal on alarm Output signal in event of device failure: < 1.0 mA
Connectable load • See Technical Data of isolating amplifier connected according to IEC 60947-5-6 (NAMUR)
• Connection also to isolating amplifier with safety engineering (I = 3...4.8 mA)
For connecting to isolating amplifiers
acc. to NAMUR (IEC 60947-5-6),
e.g. FTL325N, FTL375N from Endress+Hauser.
Output signal jump from high to low current
on limit.
(H-L edge)
Additional function:
Test button on the electronic insert.
Pressing the button breaks the connection
to the isolating amplifier.
!
Note!
For Ex-d applications, the additional function
can only be used if the housing is not exposed
to an explosive atmosphere.
!
Note!
Connecting to multiplexer:
Set clock time to min. 5 s.
L00-FTM5xxxx-04-05-xx-en-005
I
H
L
EEx ia
12
E
X
E X
FEM58
+ –
Isolating amplifier
to
(NAMUR)
IEC 60947-5-6
L00-FTL5xxxx-07-05-
xx-xx-000
= lit
= flashes
= unlit
L00-FTM5xxxx-04-05-xx-en-012
* See also "Operating elements"
on Page 22.
+
21
+
21
+
21
+
21
+
21
+
21
0.4 …
1.0 mA
0.4 …
1.0 mA
0.4 …
1.0 mA
2.2 …
4.0 mA
2.2 …
4.0 mA
0.4 …
4.0 mA
MAX
MIN
MAX
MIN
Instrument failure
Maintenance
required *
Safety mode
Level
Output signal
LEDs
green yellow red
