Endress+Hauser Soliphant M FTM51 Technical Information

Soliphant M FTM50, FTM51, FTM52
8 Endress+Hauser

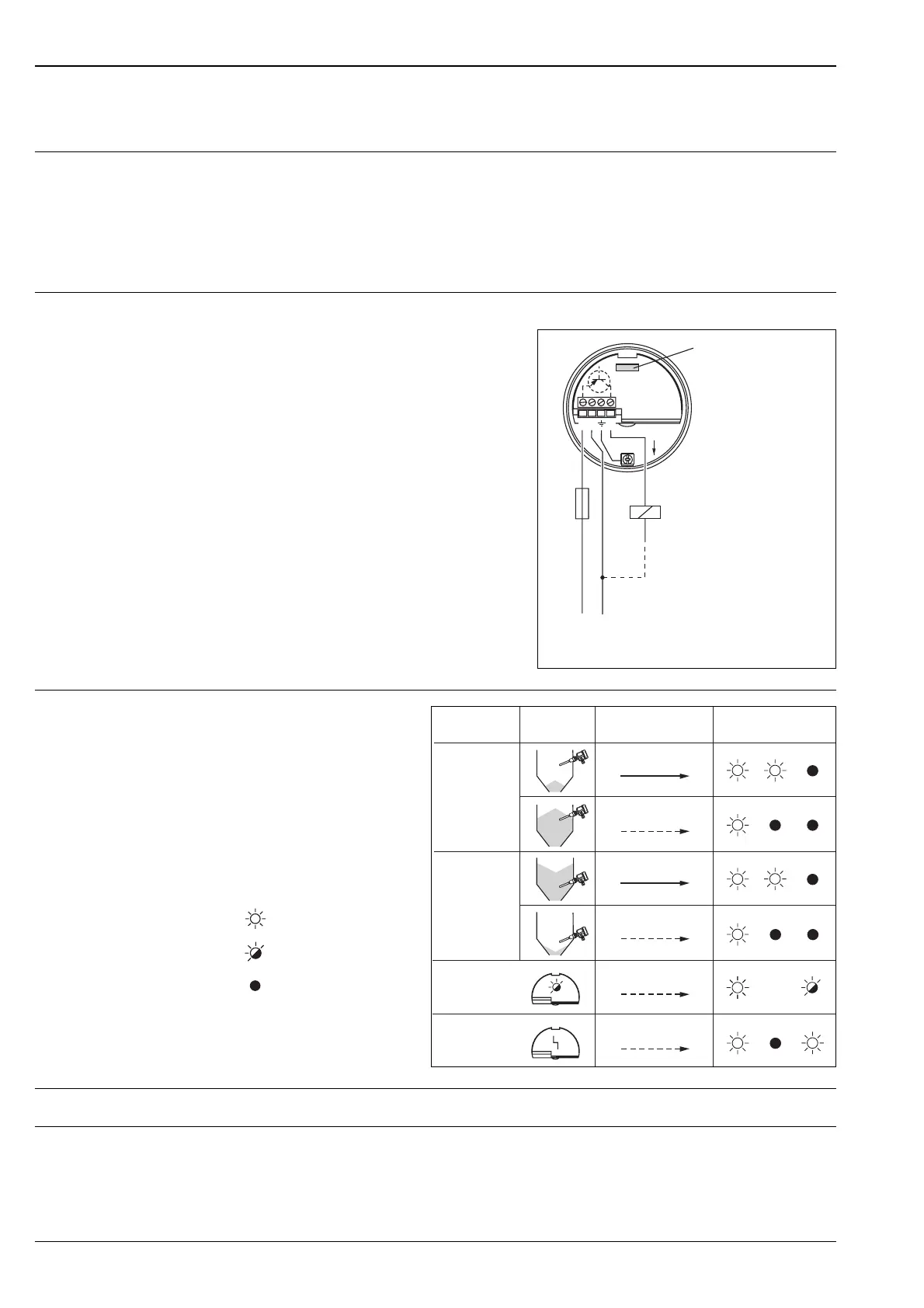

FEM52 electronic insert (DC PNP)
Power supply DC voltage: 10 V…55 V
Ripple: max. 1.7 V, 0…400 Hz
Current consumption: max. 16 mA
Power consumption: max. 0.86 W
Reverse polarity protection
Separation voltage: 3.7 kV
FEM52 overvoltage protection: overvoltage category III
Electrical connection Three-wire DC connection
Output signal
Signal on alarm Output signal on power failure or in the event of device failure: < 100 µA
Connectable load • Load switched via transistor and separate PNP connection, max. 55 V
• Load current max. 350 mA (cyclical overload and short-circuit protection)
• Residual current < 100 µA (with transistor blocked)
• Capacitive load max. 0.5 µF at 55 V, max. 1.0 µF at 24 V
• Residual voltage < 3 V (for transistor switched through)
Preferably used with programmable logic controllers
(PLC), DI module as per EN 61131-2.
Positive signal at switching output of the
electronics (PNP).
L00-FTM5xxxx-04-05-xx-xx-007
12 3
L+ L–
(+)
–
F
0.5A
R
FEM52
U – 10 V … 55 V (DC)
…
I
L
I
R
L00-FTL5xxxx-07-05-
xx-xx-000
= load current
(switched through)
= residual current
(blocked)
= lit
= flashes
= unlit
L00-FTM5xxxx-04-05-xx-en-007
* See also "Operating elements"
on Page 22.
L+ +
13
L+ +
13
13
13
13
13
I
L
I
L
I
R
I
R
I
R
I/I
L
R
MAX
MIN
MAX
MIN
Instrument failure
Maintenance
required *
Safety mode
Level
Output signal
LEDs
green yellow red
