Soliphant M FTM50, FTM51, FTM52
Endress+Hauser 23

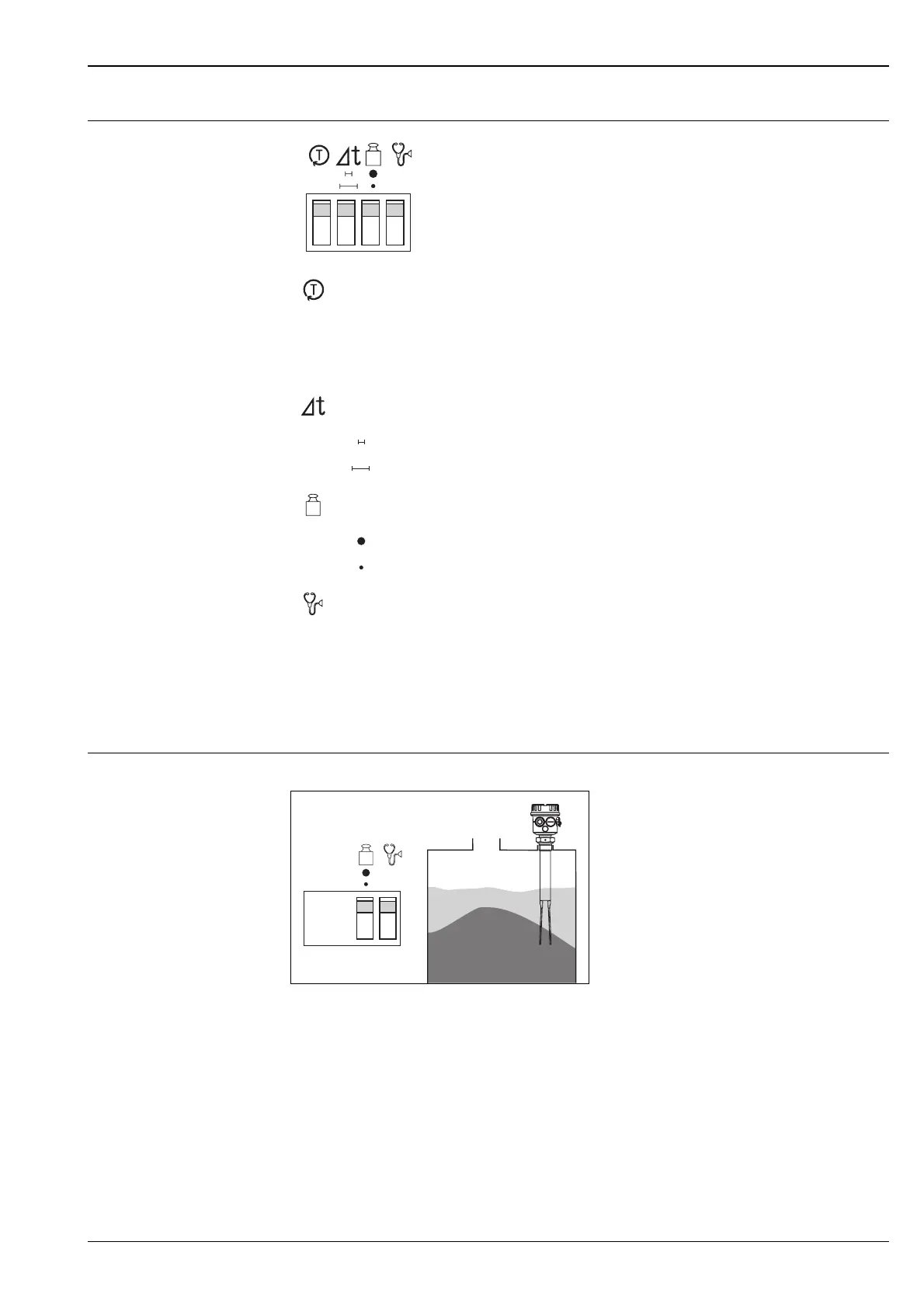

Operating elements for
FEM57 electronic insert
Sediment detection
FTM50, FTM51
Detection of solids under water
L00-FTM5xxxx-19-05-xx-xx-002
(factory setting)
One switch for recurrent testing
OFF Recurrent testing switched OFF
ON At the same time, switching delay 0.5 s when covered, density setting low
bulk density and diagnosis ON (see also Page 12):
Perform recurrent proof test when voltage returns.
One switch for switching delay
0.5 s when covered, 1.5 s when uncovered (short fork 1 s)
5 s when covered, 5 s when uncovered
One switch for bulk density/density setting
50 g/l standard fork, 200 g/l short fork (high bulk density)
10 g/l standard fork, 50 g/l short fork (low bulk density)
One switch for diagnosis
OFF Diagnosis of abrasion and build-up switched OFF.
ON Diagnosis of abrasion and build-up switched ON.
• For additional density setting to high bulk density:
abrasion and build-up are indicated per LED at the electronic insert only
• For additional density setting to low bulk density:
output of "signal on alarm" for abrasion and build-up
OFF
ON
ON
OFF
L00-FTM5xxxx-19-05-xx-xx-014
With this device setting, the system only senses
if the unit is actually covered by bulk solids.
The system does not detect coverage by liquids
similar to water.
ON
OFF
HO
2
