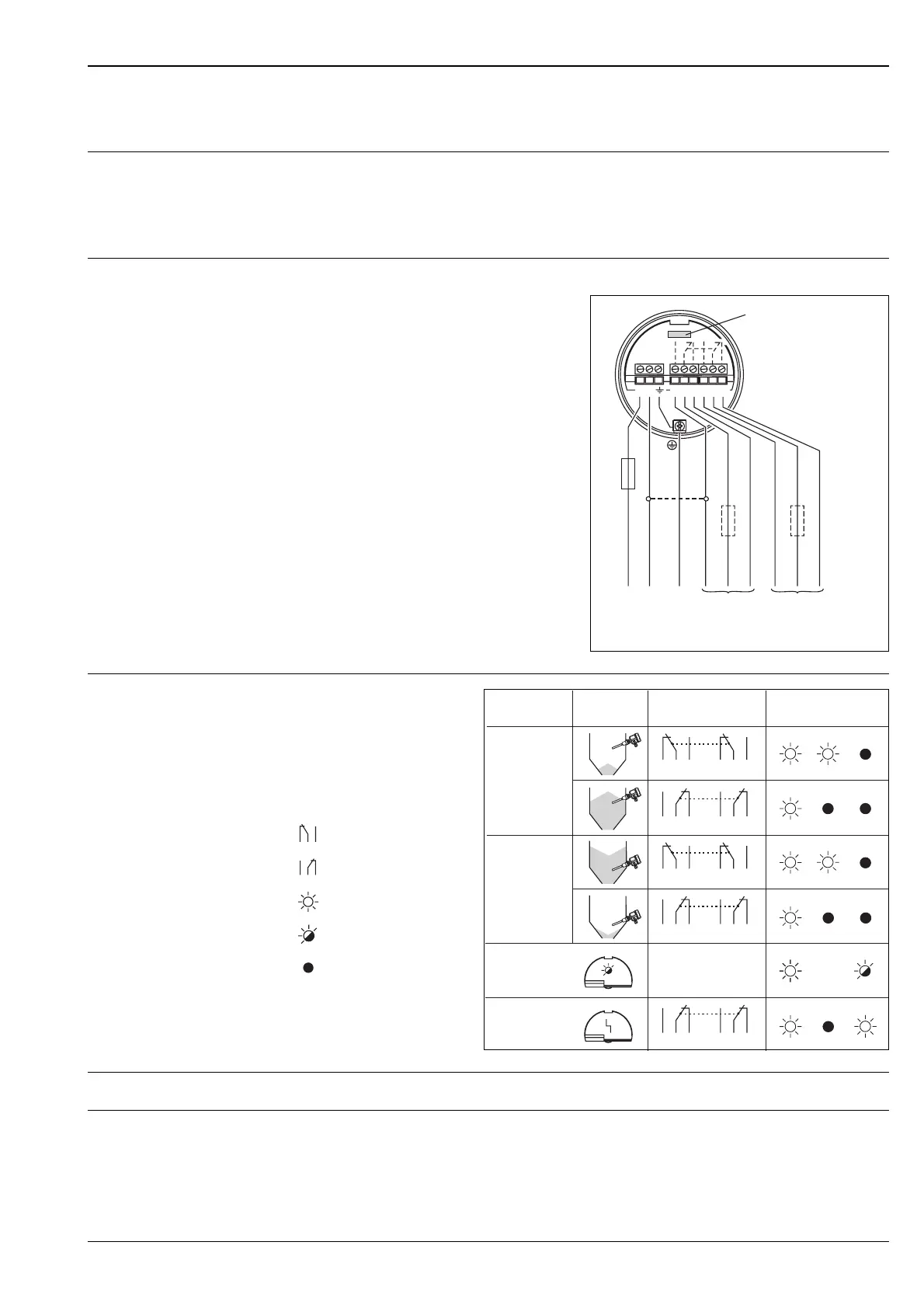

Soliphant M FTM50, FTM51, FTM52
Endress+Hauser 9
FEM54 electronic insert (AC/DC with relay output)
Power supply Alternating voltage 19 V…253 V, 50/60 Hz or DC voltage: 19 V…55 V
Power consumption: max. 1.5 W
Reverse polarity protection
Separation voltage: 3.7 kV
FEM54 overvoltage protection: overvoltage category III
Electrical connection Universal current connection with relay output (DPDT)
Output signal
Signal on alarm Output signal on power failure or in the event of device failure: relay de-energised
Connectable load • Loads switched via 2 floating change-over contacts (DPDT)
• I~ max. 6 A (EEx de 4 A), U~ max. 253 V; P~ max. 1500 VA, cos ϕ = 1, P~ max. 750 VA, cos ϕ > 0.7
• I- max. 6 A (EEx de 4 A) to 30 V, I- max. 0.2 A to 125 V
• The following applies when connecting a functional low-voltage circuit with double isolation as per
IEC 1010: Sum of voltages of relay output and power supply max. 300 V
Power supply:
Please note the different voltage ranges
for AC and DC.
Output:
When connecting an instrument with
high inductance, provide a spark arrester
to protect the relay contact.
A fine-wire fuse (depending on the
load connected) protects the relay
contact on short-circuiting.
Both relay contacts switch simultaneously.
* When jumpered, the relay
output works with NPN logic.
** See below "Connectable load"
!
Note!
Please note the different voltage ranges
for AC and DC.
L00-FTM5xxxx-04-05-xx-xx-004
*
U~ 19…253 V U– 19… 55 V(AC) (DC)
L1
L+
a
NO
a
NO
u
C
u
C
r
NC
r
NC
**
N
L–
PE
(Ground)
F
0.5A
12 678345
FEM54
**
L00-FTL5xxxx-07-05-
xx-xx-001
= relay energised
= relay de-energised
= lit
= flashes
= unlit
L00-FTM5xxxx-04-05-xx-en-008
* See also "Operating elements"
on Page 22.
354687
354687
354
354
687
687
354687
MAX
MIN
MAX
MIN
Instrument failure
Maintenance
required *
Safety mode
Level
Output signal
LEDs
green yellow red
