Soliphant M FTM50, FTM51, FTM52
20 Endress+Hauser

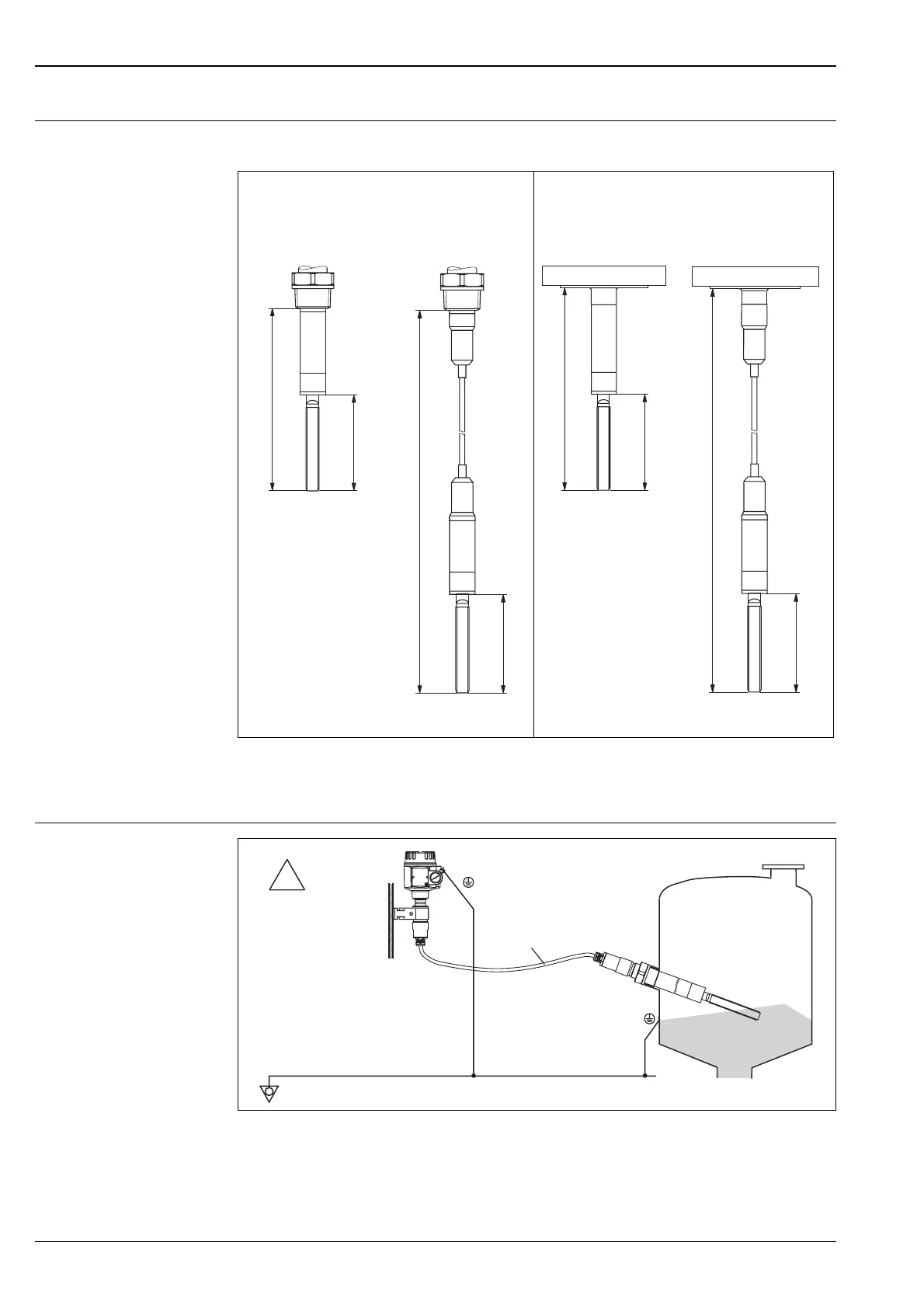

Overall length For FTM51, depends on process connection and selected pipe extension,
for FTM52, depends on process connection and selected rope length
L = overall length, X = fork length
Further informations to overall length/fork length see "Measuring range" on Page 5.
Separate housing
L00-FTM5xxxx-15-05-xx-xx-002
x °C = (1.8 x + 32) °F
Application: for extended ambient temperature and applications with confined installation location
(e.g. filling nozzle applications).
The cable between the separate housing and sensor can be shortened at the customer's.
Thread: NPT 1½
NPT 1¼
R 1½
Flange and Tri-Clamp
FTM51
L00-FTM5xxxx-06-05-xx-xx-009
FTM52
L00-FTM5xxxx-06-05-xx-xx-011
FTM51
L00-FTM5xxxx-06-05-xx-xx-010
FTM52
L00-FTM5xxxx-06-05-xx-xx-012
From lower edge of thread
L
X
L
X
L
X
L
X
E
X
T max. = 150 °C
Zone 0
Zone 20
a
Tmax. = 70 °C
Zone 1
Zone 21
Tmax. = 120 °C
L=6m
