Note!
Test button - breaks the cable connection

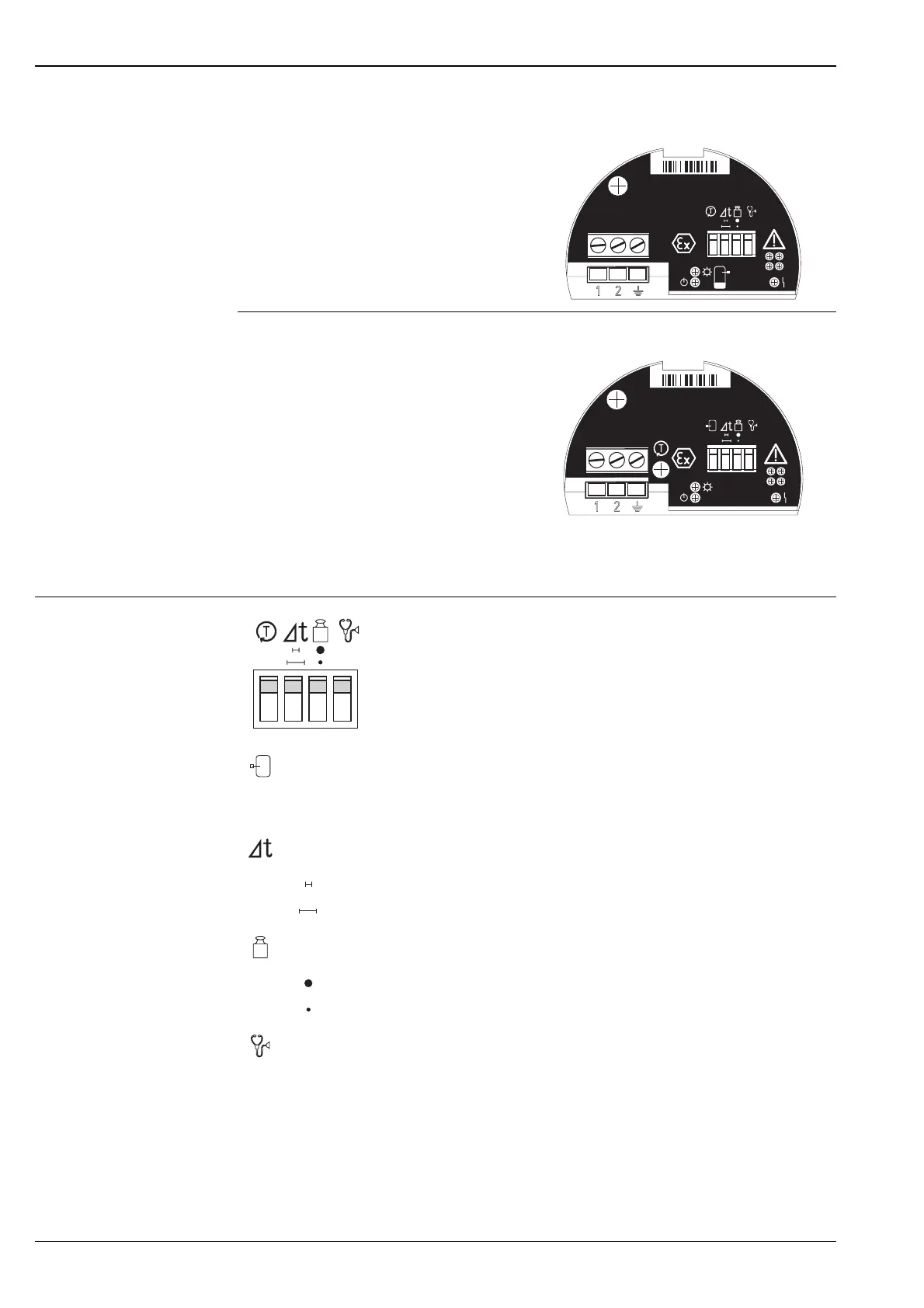

Operating elements of
electronic inserts
FEM51, FEM52, FEM54,
FEM55, FEM58
A green LED:
Indicates operational status
A yellow LED:
Indicates covered status
A red LED:
flashing - indicates maintenance is required
lit - indicates device failure
L00-FTM5xxxx-03-05-xx-xx-007
A green LED:
flashing - indicates operational status
A yellow LED:
Indicates switching status
A red LED:
flashing - alternately with green LED
if maintenance is required
flashing - indicates device failure
L00-FTM5xxxx-03-05-xx-xx-008
-
+
OFF
ON
FEM57
ON
OFF
PFM
-
+
NAMUR
IEC 60947-5-6
FEM58
MAX
MIN
> 2,2mA
ON
OFF
L00-FTM5xxxx-19-05-xx-xx-002
(factory setting)
One switch for safety mode
MAX Overfill protection
MIN Dry running protection
One switch for switching delay
0.5 s when covered, 1.5 s when uncovered (short fork 1 s)
5 s when covered, 5 s when uncovered
One switch for bulk density/density setting
50 g/l standard fork, 200 g/l short fork (high bulk density)
10 g/l standard fork, 50 g/l short fork (low bulk density)
One switch for diagnosis
OFF Diagnosis of abrasion and build-up switched OFF.
ON Diagnosis of abrasion and build-up switched ON.
• For additional density setting to high bulk density:
abrasion and build-up are indicated per LED at the electronic insert only
• For additional density setting to low bulk density:
output of "signal on alarm" for abrasion and build-up
OFF
ON
ON
OFF
