Soliphant M FTM50, FTM51, FTM52

14 Endress+Hauser

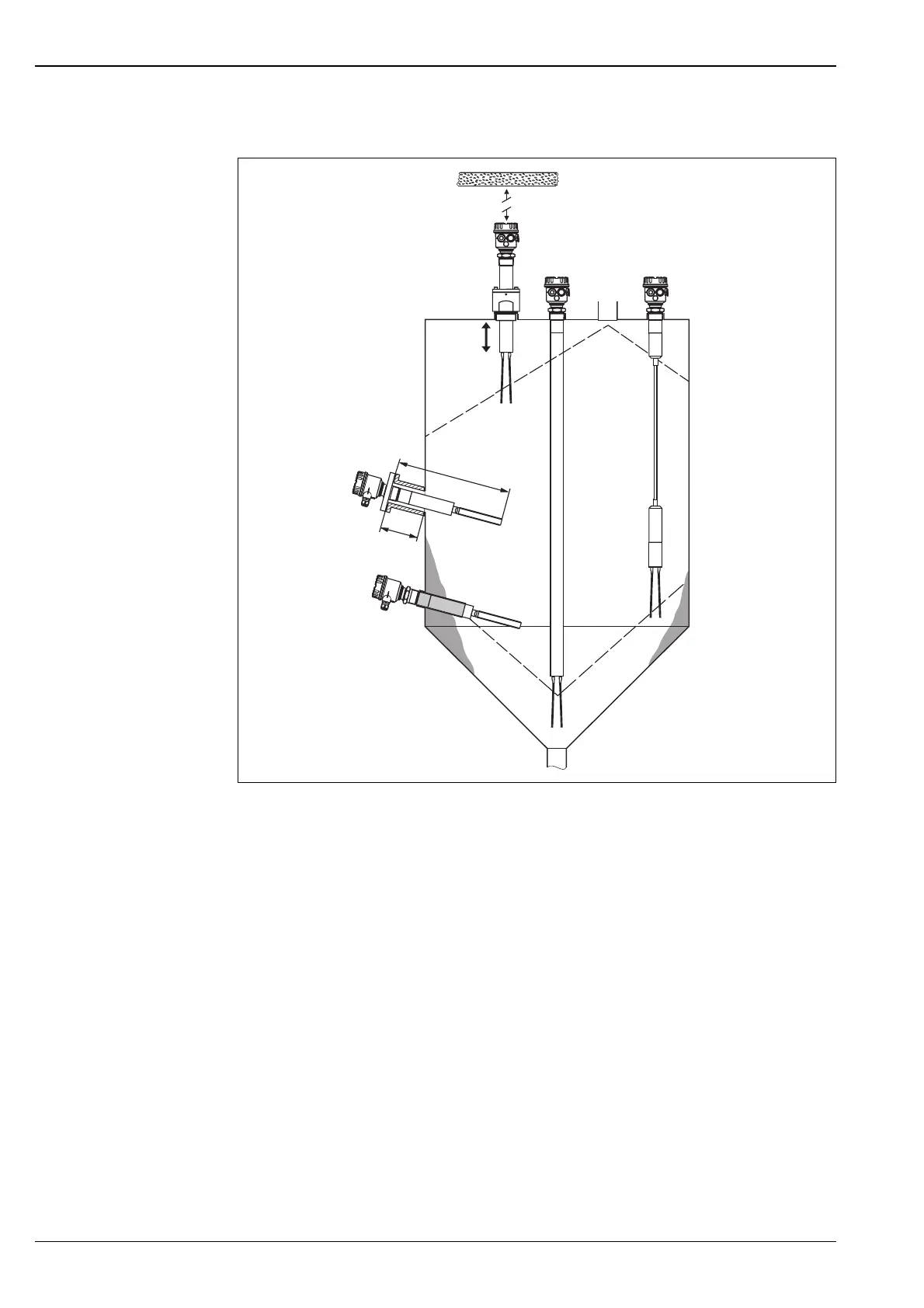

Orientation FTM51, FTM52

L00-FTM5xxxx-11-06-xx-en-001

Horizontal installation / Vertical installation

* Nozzle length: max. L - 145 mm for short fork or L - 200 mm for standard fork

** Supporting tube (to be provided by customer)

FTM51

FTM51 FTM52

Clearance

Sliding sleeve

Default Chapter2
- Table of Contents2
Function and System Design4
- Measuring Principle4
- Measuring System4
- Electronic Versions for Level Limit Switch5
- Electronic Versions for Level Sensor5
Cable Specifications5
- Connecting Cables5
- Cable Entry5
Input5
- Measured Variable5
- Measuring Range(Detection Range)5
- Input Signal5
- Measuring Frequency5
Output6
- Galvanic Isolation6
- Switch Behaviour6
- Power-On Behaviour6
- Fail-Safe Mode6
- Switching Delay6
- Ex Specifications6
FEM51 Electronic Insert (AC 2-Wire)6
- Power Supply6
- Electrical Connection7
- Output Signal7
- Signal on Alarm7
- Connectable Load7
FEM52 Electronic Insert8
(DC Pnp)8
- Power Supply8
- Electrical Connection8
- Output Signal8
- Signal on Alarm8
- Connectable Load8
FEM54 Electronic Insert (AC/DC with Relay Output)9
- Power Supply9
- Electrical Connection9
- Output Signal9
- Signal on Alarm9
- Connectable Load9
FEM55 Electronic Insert (8/16 Ma H-L Edge)10
- Power Supply10
- Electrical Connection10
- Output Signal10
- Signal on Alarm10
- Connectable Load10
FEM58 Electronic Insert (NAMUR H-L Edge)11
- Power Supply11
- Electrical Connection11
- Output Signal11
- Signal on Alarm11
- Connectable Load11
FEM57 Electronic Insert12
Pfm12
- Power Supply12
- Electrical Connection12
- Output Signal12
- Signal on Alarm12
- Connectable Load12
Operating Conditions13
- Installation Instructions13
Environment15
- Ambient Temperature Range15
- Storage Temperature15
- Climate Class15
- Degree of Protection15
- Vibration Resistance15
- Electrical Safety15
- Electromagnetic Compatibility15
Process15
- Medium Temperature Limits15
- Bulk Density16
- Lateral Load (Static)16
- Tensile Strength Rope FTM5216
Mechanical Construction17
- Design, Dimensions17
- Weight18
- Material18
- Process Connections19
- Overall Length20
- Separate Housing20
Human Interface21
- Display Elements21
- Operating Elements of Electronic Inserts FEM51, FEM52, FEM54, FEM55, FEM5822
- Operating Elements for FEM57 Electronic Insert23
- Sediment Detection FTM50, FTM5123
Certificates and Approvals24
- CE Mark, Declaration of Conformity24
- Ex Approval24
- Type of Protection24
- Other Standards and Guidelines24
Ordering Information25
- Soliphant M FTM5025
- Soliphant M FTM5127
- Soliphant M FTM5229
Accessories31
- Sliding Sleeve31
- Rope Shortening Kit31
- Spare Parts31
Supplementary Documentation32
- Operating Instructions32
- Certificates32
