Mounting Turbimax CUS51D
16 Endress+Hauser
Compressed air cleaning
Ø 40.1 (1.58)
Ø 50 (1.97)
72 (2.83)
77.3 (3.04)
17.8
(0.70)
11.5 (0.45)
65.8 (2.59)
17.8
(0.70)
48 (1.89)
A
B
A0030854

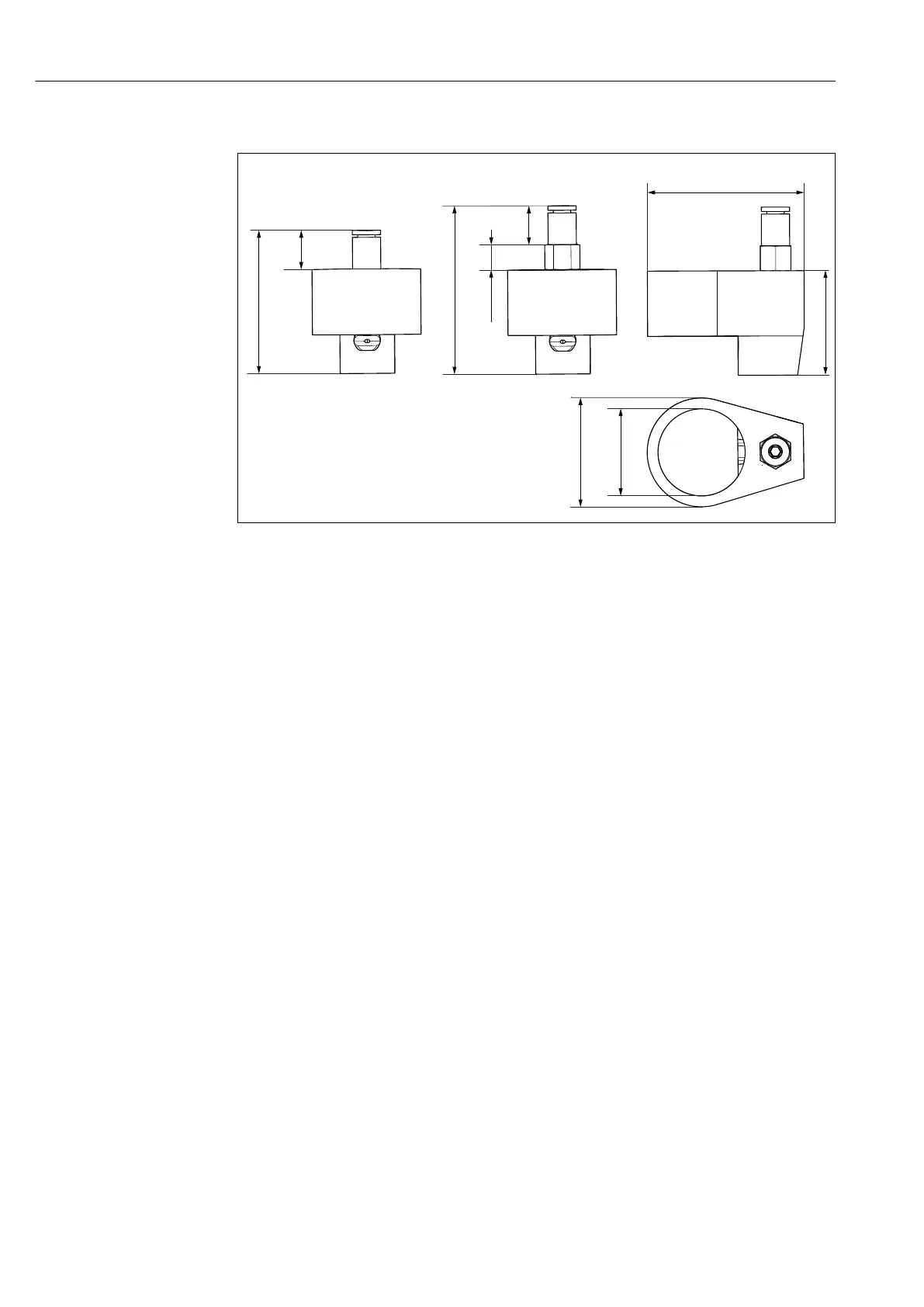

 9 Compressed air cleaning. Engineering unit: mm (in)
A Version 6 mm (0.24 in)
B Version 6.35 mm (0.25 in)
5.2 Mounting the sensor
The sensor can be installed with different assemblies or directly in a pipe connection.
However, the CYA112 immersion assembly must be used for continuous operation of the
sensor under water.
5.2.1 Measuring system
A complete measuring system comprises:
• Turbimax CUS51D turbidity sensor
• Liquiline CM44x multi-channel transmitter
• Assembly:
• Flexdip CYA112 assembly and Flexdip CYH112 holder or
• Retractable assembly, e.g. Cleanfit CUA451
