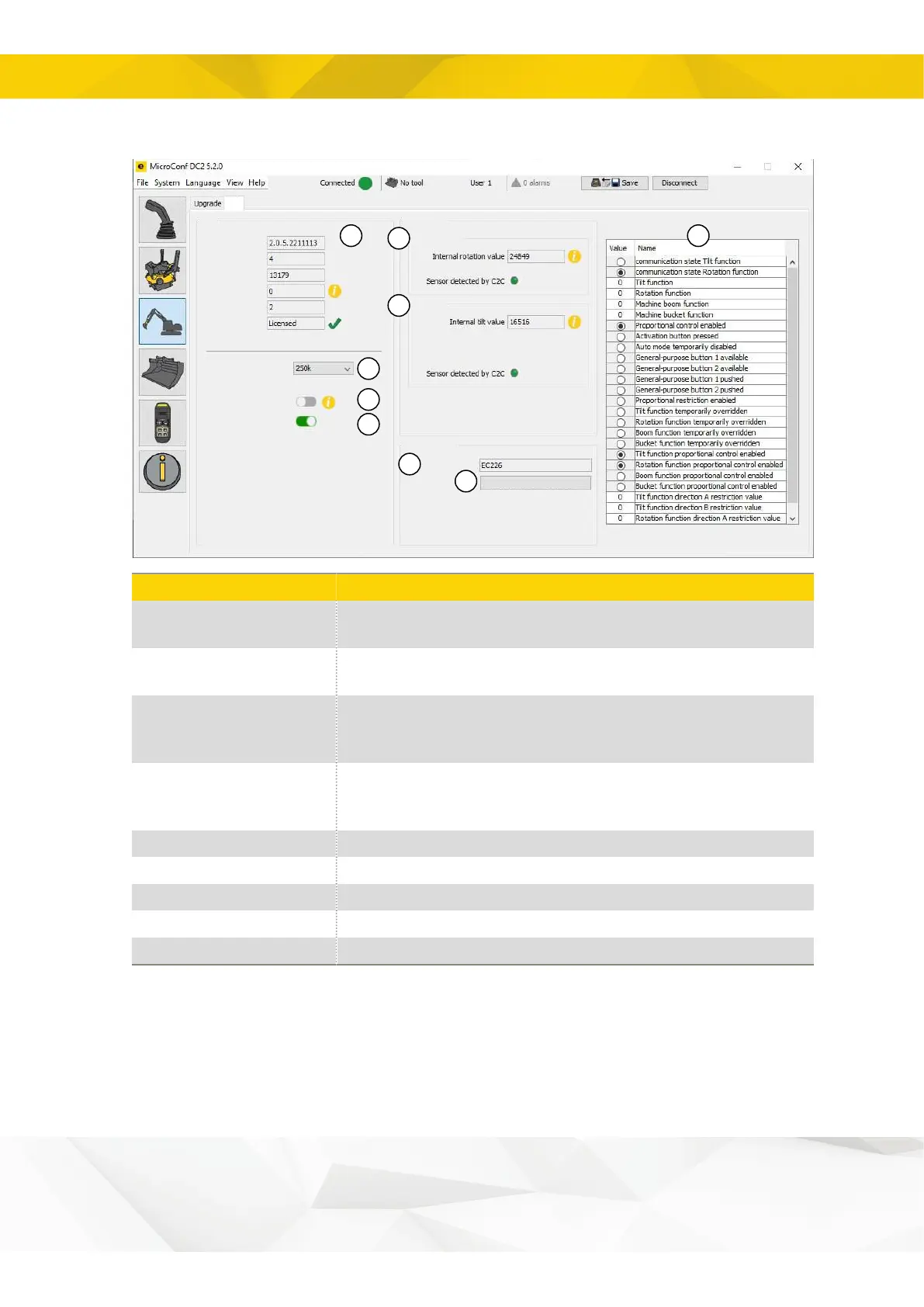

4.4.3. Overview - ePS v2
1
2
3
7
9
4
Software version
Hardware revision
Serial Number
Error code
ePS version
ePS v2 license
External Bus Baus rate
Legacy mode
CAN termination
C2C
ePS
Sensor Data
Rotation sensor
Tilt sensor
Sensor Settings
Tiltrotator model
Configure ePS v2 sensors
8
5
6
Position
Description
1
C2C module information: SW/HW versions, serial number and error code
(see trouble shooting section)
2
Select X1 J1939 communication bit rate (click Save and restart C2C for the
change to be completed)
3
Legacy mode. Activated if the external excavator guidance system is not
compatible with ePS v2. A slimmed-down ePS v1 protocol is used to send
rotation data only to the external excavator guidance system.
4
CAN termination active or inactive. The manufacturer of the installed
excavator guidance system decides whether CAN termination needs to be
active or not.
5
Rotation sensor information: rotation data, CAN status and C2C status.
6
Tilt sensor information: tilt data, CAN status and C2C status.
7
Tiltrotator model
8
Configuration of ePS v2 sensors.
9
DC2 control system settings.
