3 Installation
3. Installation

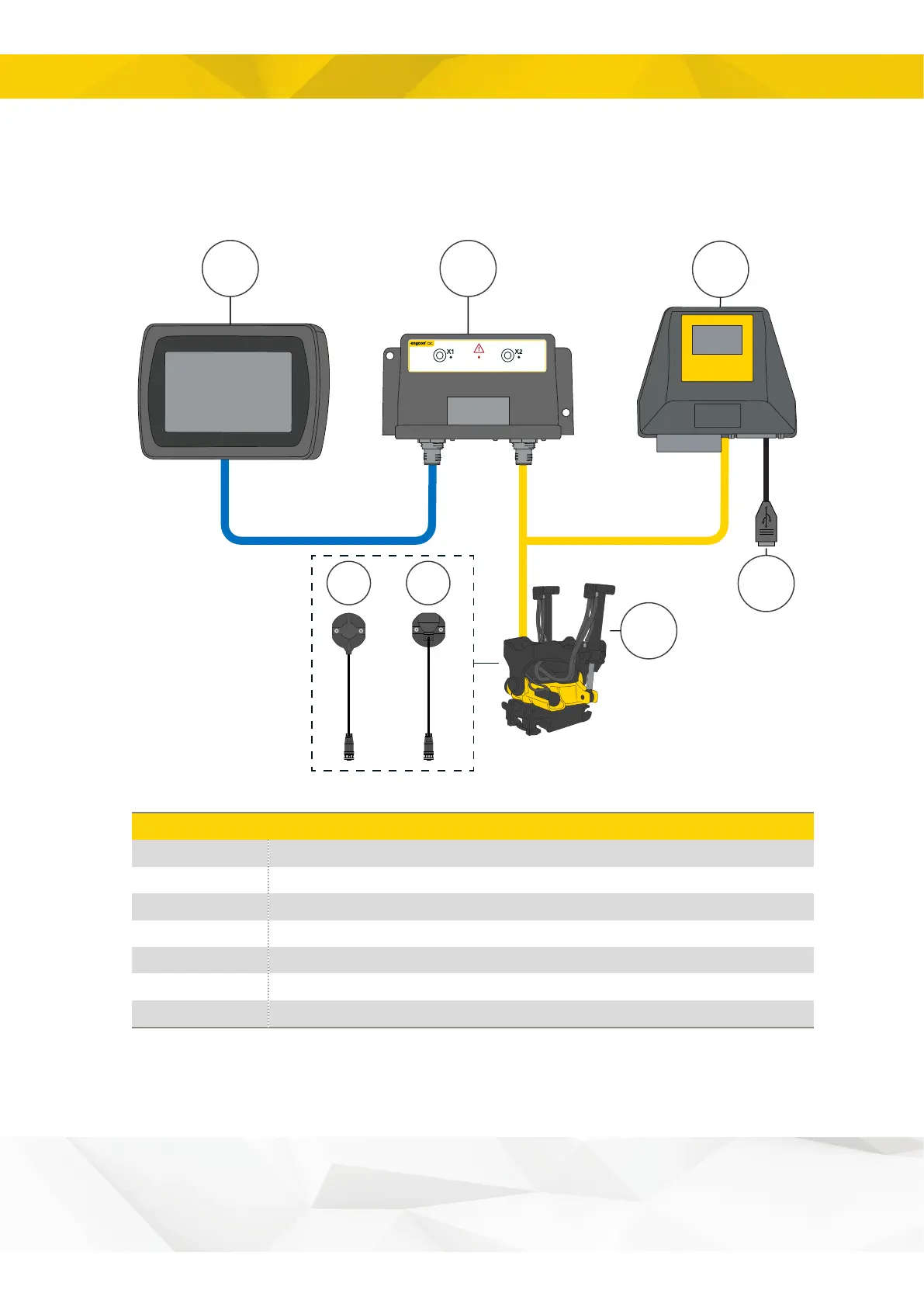

3.1. System overview
1 2
3
4
5
6
7
External CAN interface (X1) Internal CAN interface (X2)
Position
Description
1
External excavator guidance system
2
C2C (CAN to CAN bridge)
3
Cabin module
4
USB cable (connection to MicroConf)
5
Tiltrotator
6
Rotation sensor
7
Tilt Sensor (optional extra)
