7 Technical data
7. Technical data
7.1. Electronics module C2C
Description
Power supply
9-32 Vdc
Temp. range
-40 – +85 °C
Ingress protection rating
IP44
Weight
110g
Size
137 ×70 × 29 mm

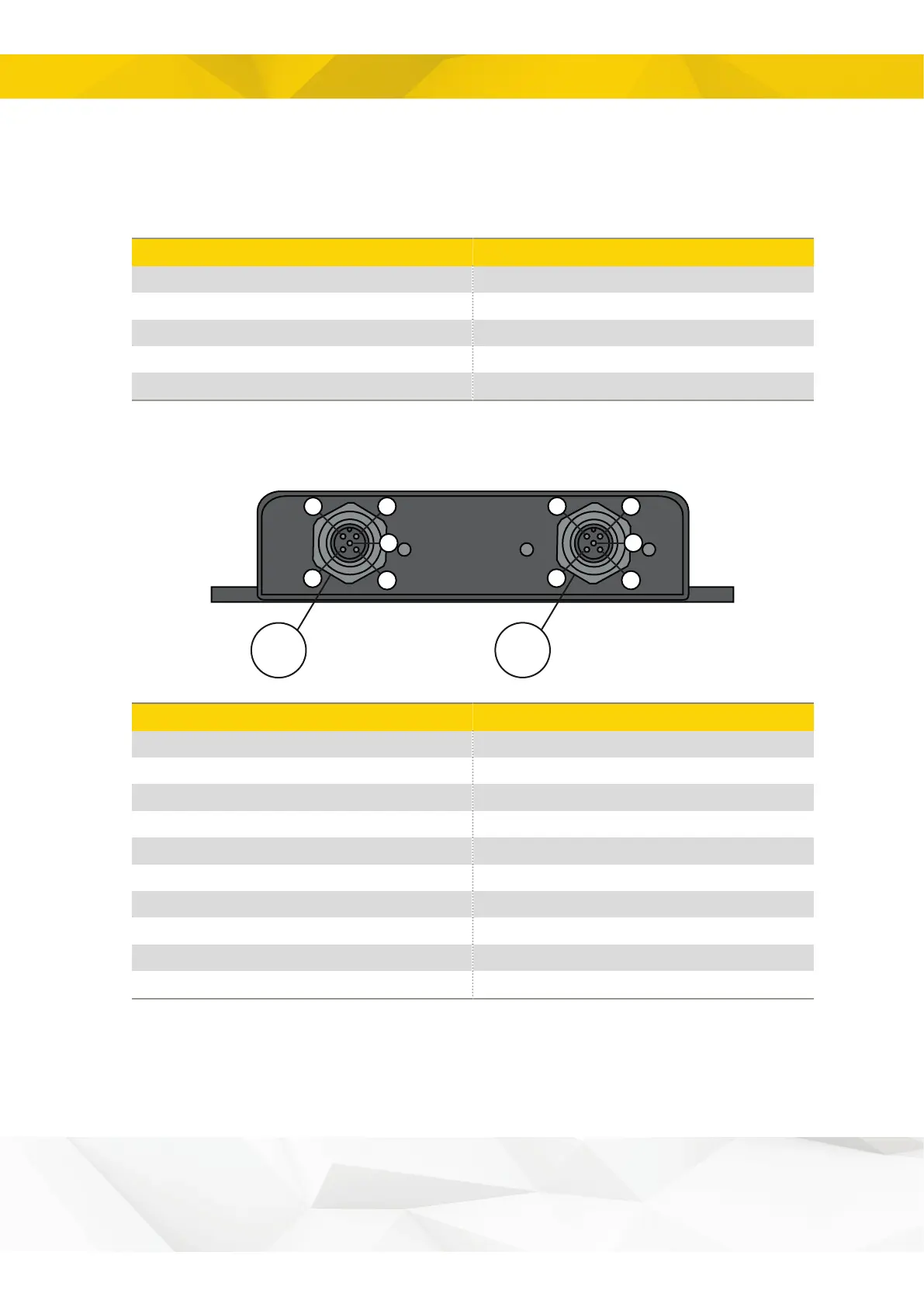

7.2. Connector overview
X1
2 1
4
3
5
X2
2 1
4
3
5
Output
Function
X1:1
No function
X1:2
VCC
X1:3
GND
X1:4
CAN-H
X1:5
CAN-L
X2:1
No function
X2:2
+12/24V
X2:3
GND
X2:4
CAN-H
X2:5
CAN-L
