INSTALLATION
C1 Rake assembly
As already mentioned, the equipment is delivered entirely disassembled. Detailed instructions allow the customer to assemble it fast and easily. For this operation it
is necessary to place the rake on a flat surface. Operators must be aware of all safety rules for the installation and carefully perform the operation.
Once the rake is assembled, install it to the tractor.
C2 Installation to tractor
The equipment can be installed to any agricultural tractor. For this, the operator must slowly near the tractor to the rake, positioning it in order to facilitate the
centring.
IMPORTANT
The alignment of the holes of the tractor's coupling with
those of the hay rake (operation defined centering), must
be carefully and cautiously carried out.

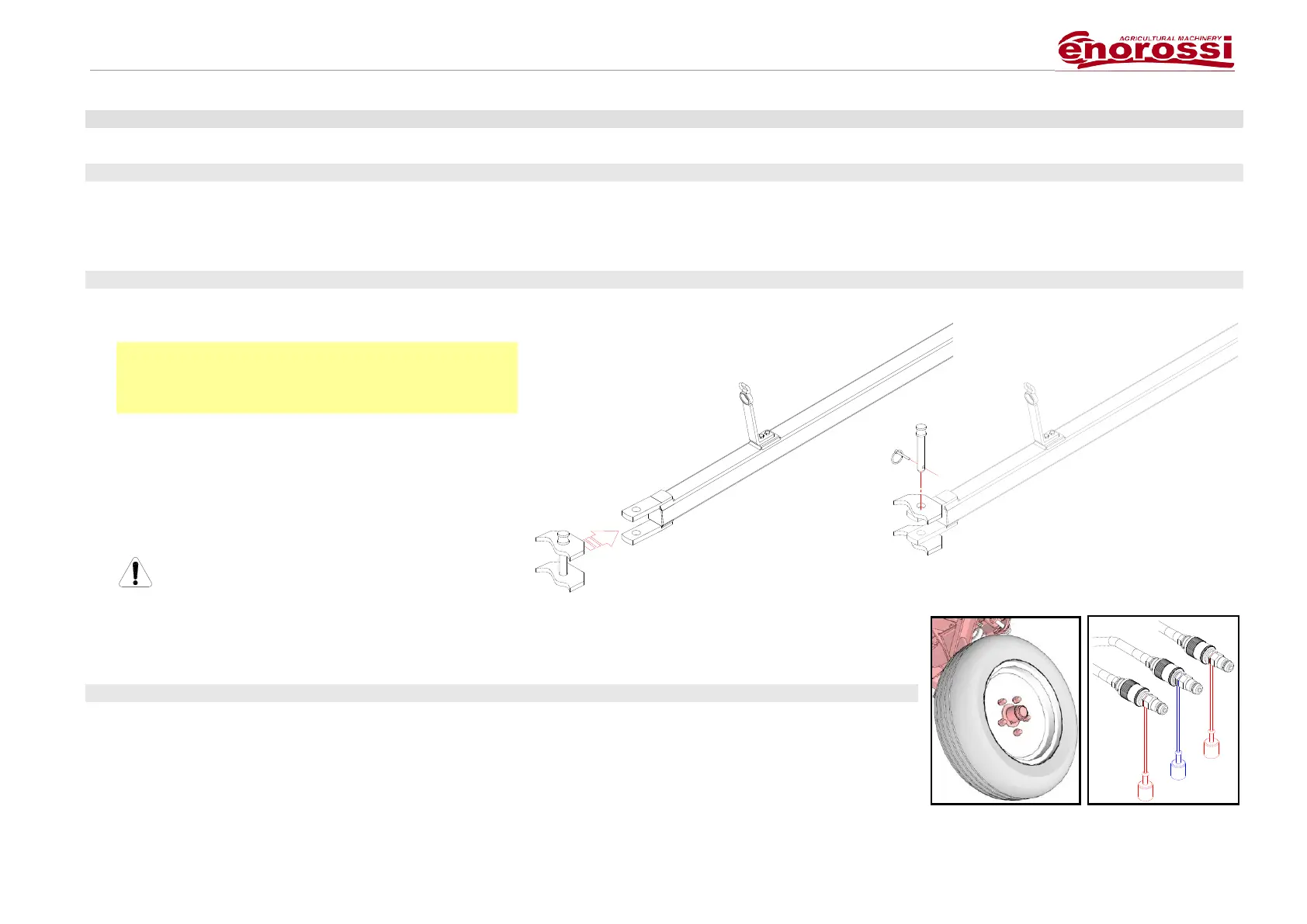

When the tractor is very near to the rake connections (1),
raise the rake connection so that it coincides with the
tractor one. Once it is attached, insert the locking pin (2)
into the holes of the connections, as shown in figure, and
then fasten it using the corresponding pin or safety pin
(3).
WARNING
After the first installation to the tractor, verify that the
wheel hubs result greased and, if necessary, do it. - After the first installation to the tractor, grease the
wheel hubs in accordance with the task times and methods indicated in the chap. Maintenance.
C3 Hydraulic connections
The movement of the hay wheel (lifting and lowering), and in the hydraulic version the alignment of the rear wheel to
the tractor, are executed through hydraulic jacks. These jacks are powered by the auxiliary hydraulic system of the
tractor by means of pipes with fast couplings, and therefore controlled by the corresponding lever in the cabin.
Therefore, you cannot perform these functions until the jack pipes are connected (with quick couplings, as shown in
the figure) to the corresponding connectors auxiliary system of the tractor.
