IQ System Controller 3/3G Quick Install Guide
15
Step 3:
Open the dead front
Before removing the dead front, ensure the IQ System Controller
is completely de-energized.
Risk of equipment damage. Do not wire the IQ System
Controller when it is energized.
• Risk of equipment damage. Do not remove the pre-installed
solar shield attached to the enclosure door.
• Risk of electric shock. Do not modify the dead front other
than to remove or replace ller plates, as needed. The product
warranty can be aected in case of modication.

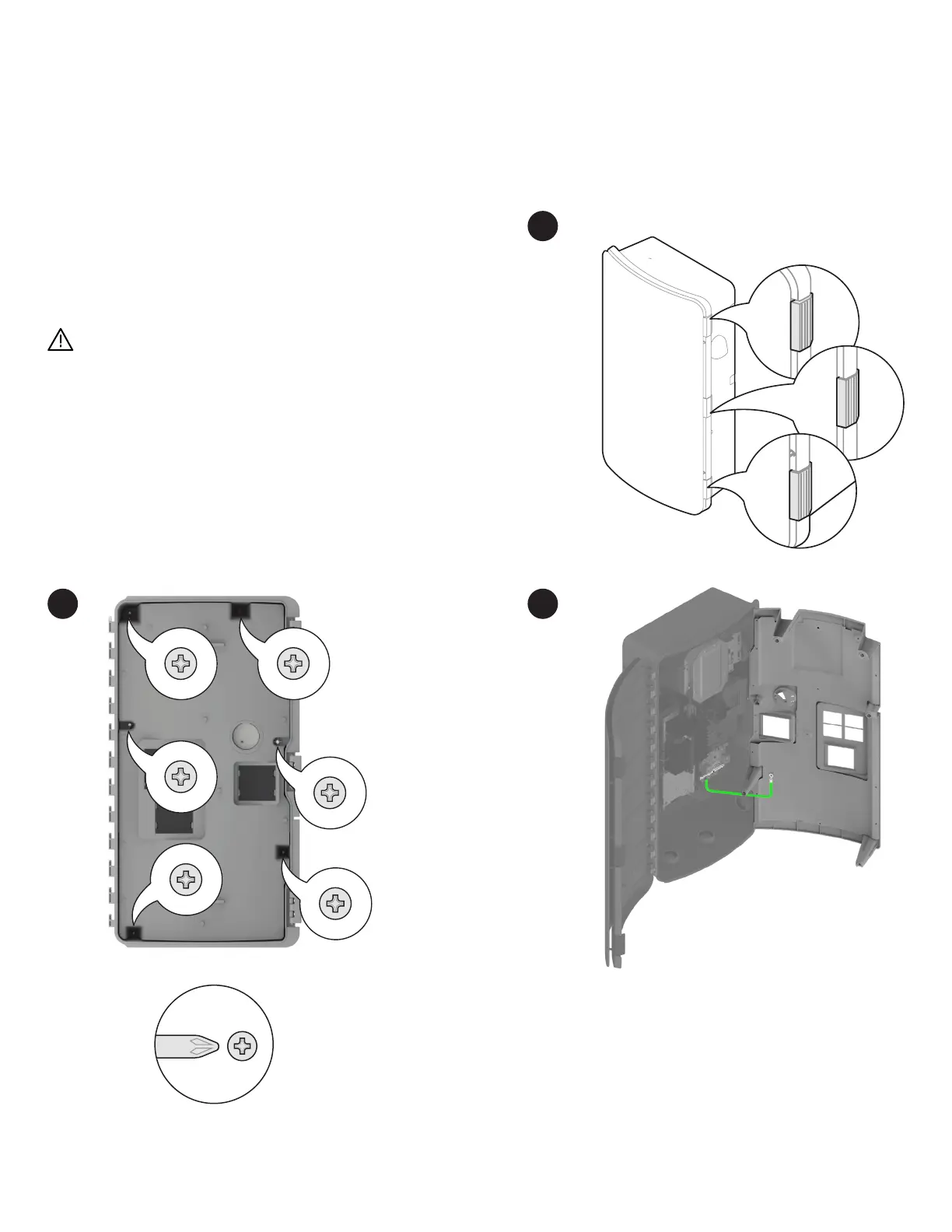

Philips screw #2
Section A - Mounting the product
1
2 3
The ground connection to the dead front needs to
be carefully disconnected before the dead front can
be dismantled from the IQ System Controller.
