IQ System Controller 3/3G Quick Install Guide

Scenario 2

Partial Home backup with

IQ System Controller 3

This is the preferred conguration for partial home backup with

PV and IQ Batteries.

The microinverter ranges supported in this conguration are IQ8 or

IQ6/7 or M Series.

Note: The System Shutdown Switch is not used for IQ6, IQ7, and M Series

systems. Refer to the System Shutdown wiring section for details.

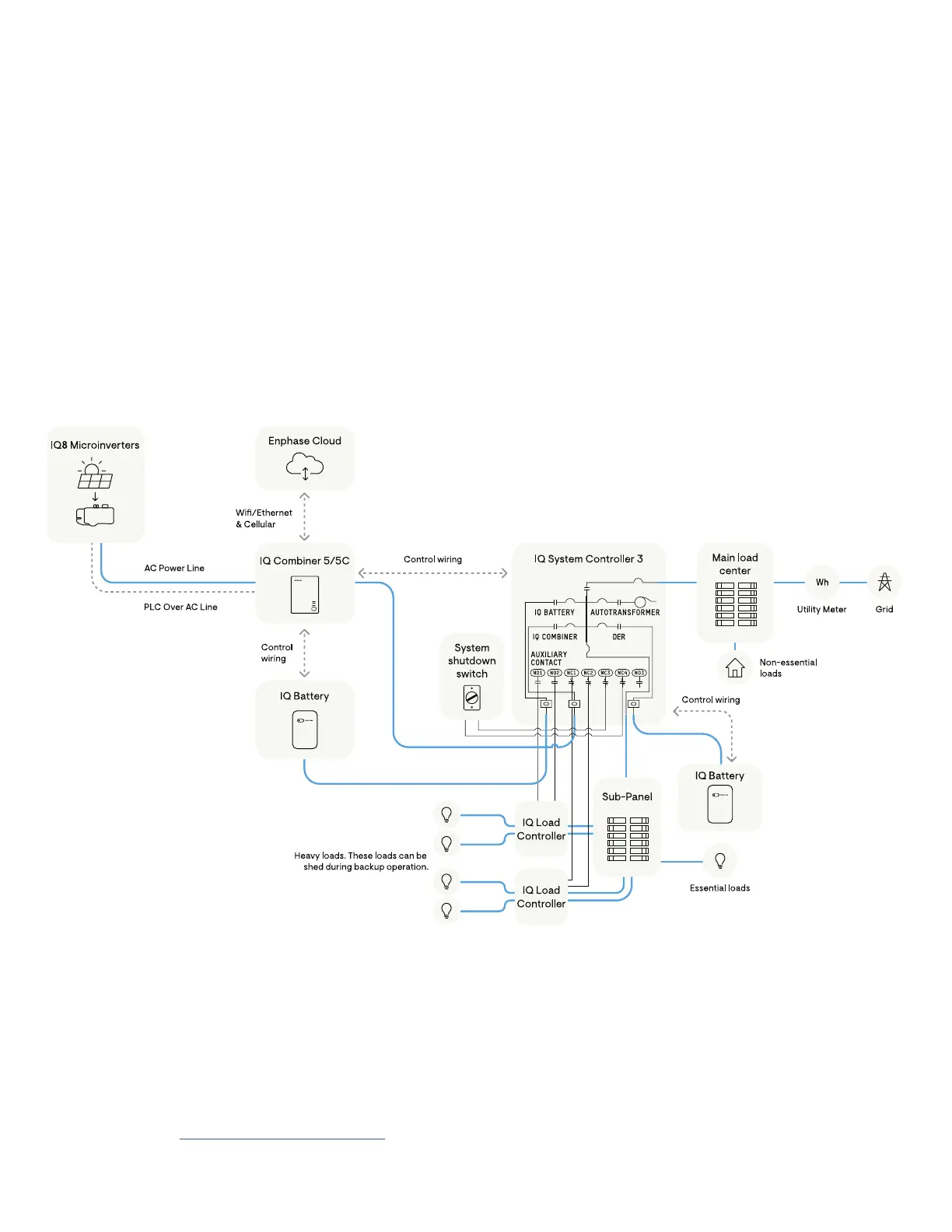

This gure shows the system conguration. For wiring,

follow the details in the wiring section.
