enphase IQ System Controller 3 - Wiring for Service Entrance

IQ System Controller 3/3G Quick Install Guide
17

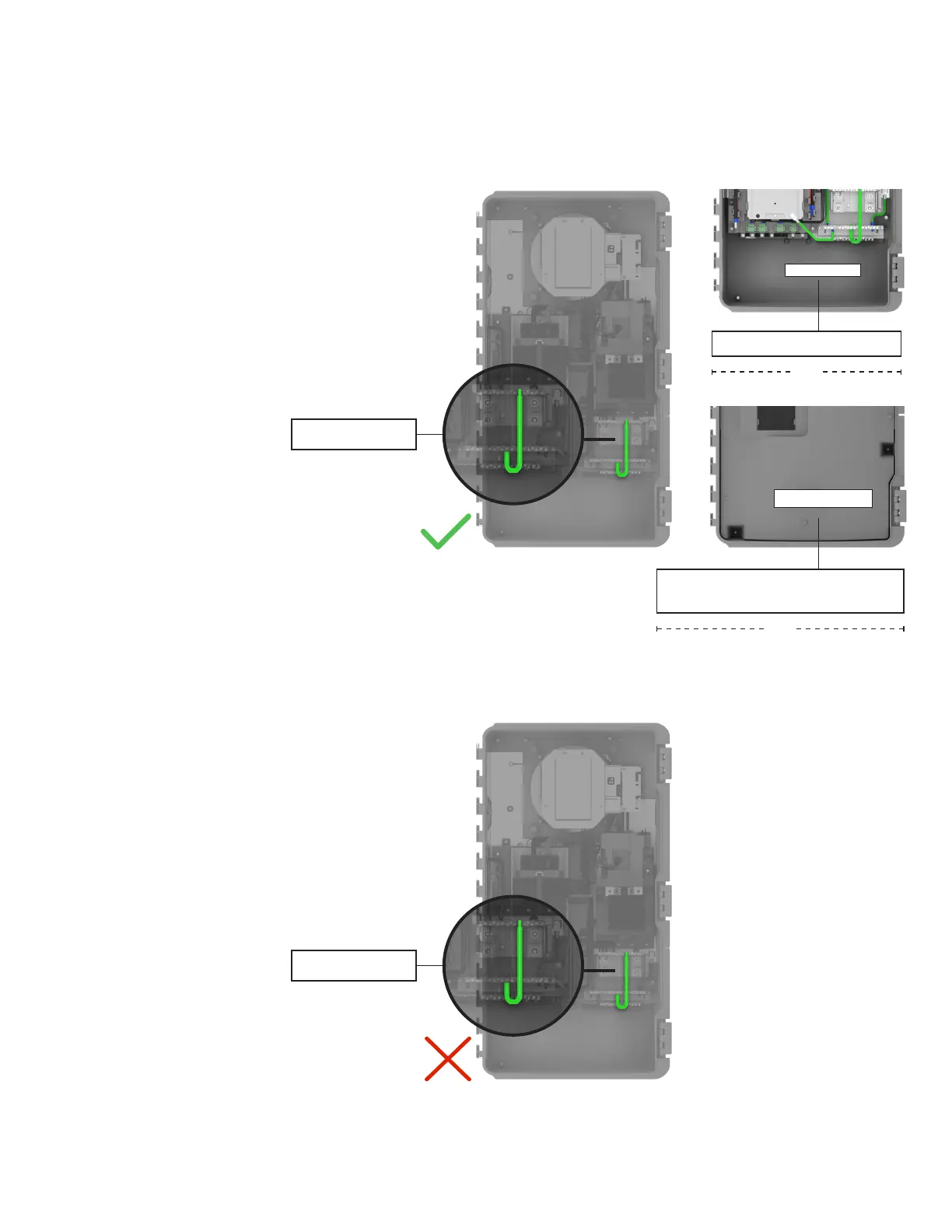

If the IQ System Controller is used as service entrance
equipment:
• Do not remove the green-colored system bonding jumper
• Paste labels provided in the accessory kit
If the IQ System Controller is NOT used as a service entrance
equipment:
• Remove the system bonding jumper wire
Grounding Electrode Terminal
Grounding Electrode Terminal
Main/Service Disconnect
Suitable for use as Service Equipment
Magnied view
Main/Service Disconnect
Suitable for use as Service Equipment
Wiring for service entrance
Section B - Mounting the breakers
Magnied view
Label
Label
