Enterasys 08G20G4-48 - Figure 1-7 08 G20 G4-24 Front Panel; Figure 1-8 08 G20 G4-24 P Front Panel; Figure 1-9 08 G20 G4-48 Front Panel; Figure 1-10 08 G20 G4-48 P Front Panel

Overview
1-4 Introduction

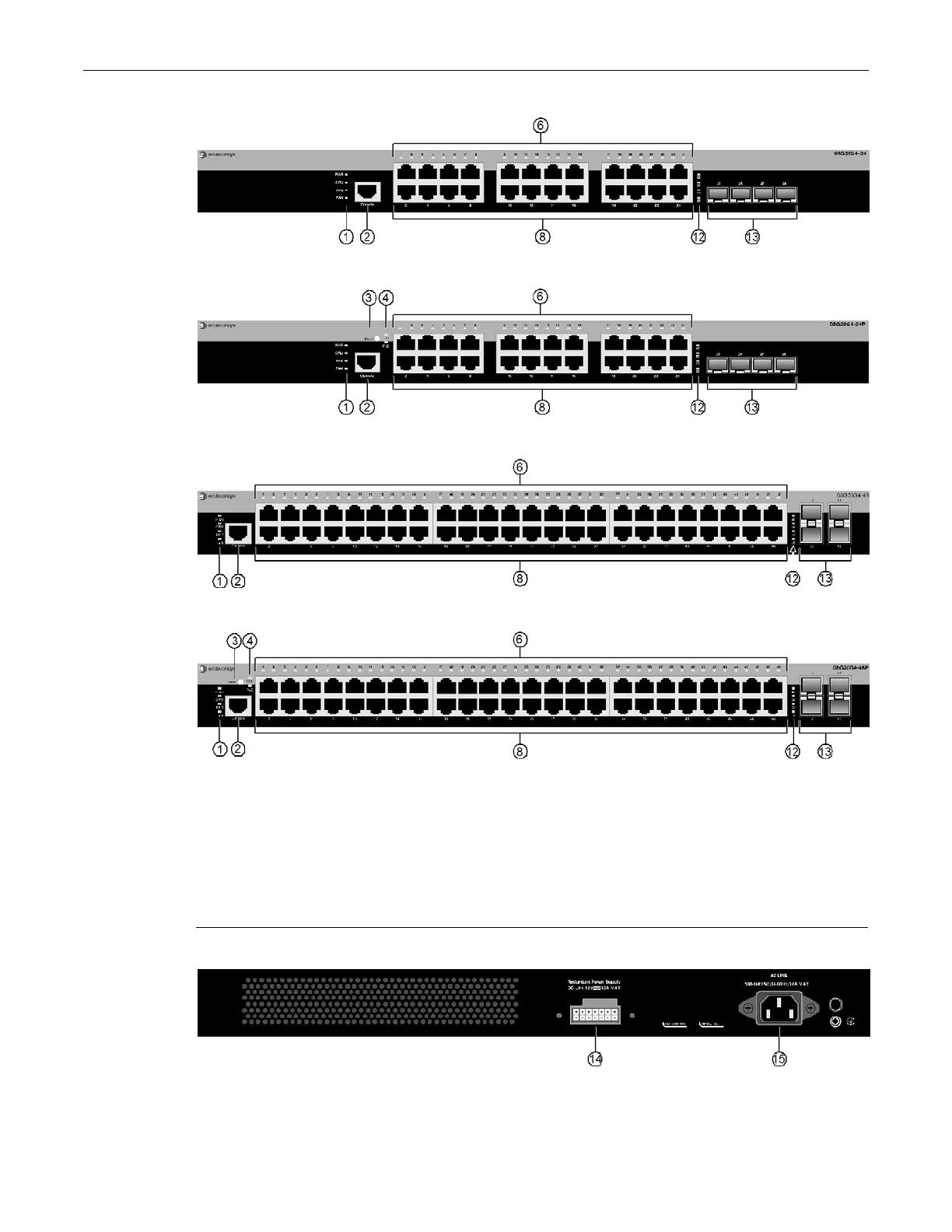

Figure 1-7 08G20G4-24 Front Panel
Figure 1-8 08G20G4-24P Front Panel
Figure 1-9 08G20G4-48 Front Panel
Figure 1-10 08G20G4-48P Front Panel
Figure 1-11 08H20G4-24 Back Panel
1 Switch status LEDs 8 Copper 10/100/1000 Mbps ports
2 Console port. 9 Combo Copper/SFP 10/100/1000 Mbps port
status LEDs
3 Link/PoE+ Mode button 10 Combo Copper 10/100/1000 Mbps ports
4 Link/PoE+ Mode status LEDs 11 Combo SFP 100/1000 Mbps port slots
5 Copper 10/100 Mbps port status LEDs 12 SFP 100/1000 Mbps port status LEDs
6 Copper 10/100/1000 Mbps port status LEDs 13 SFP 100/1000 Mbps port slots
7 Copper 10/100 Mbps ports 14 Redundant power supply connector
