Connecting to the Network
2-38 Installation

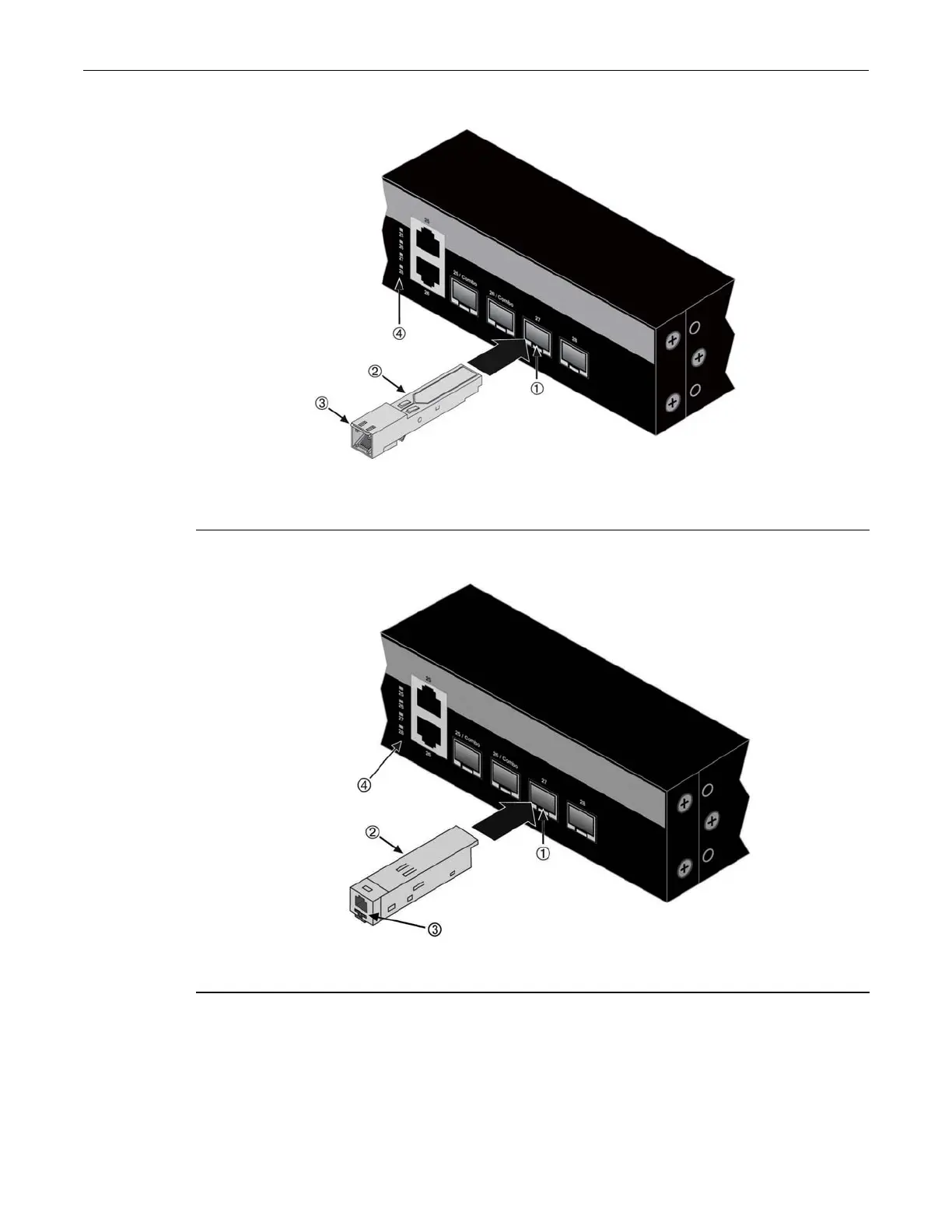

Figure 2-32 Installing an SFP Transceiver with RJ45 Connector
Figure 2-33 Installing an SFP Transceiver with MT-RJ Connector
1 SFP slot 3 Release tab
2 SFP transceiver 4 Link/Activity LED
1 SFP slot 3 Release tab
2 SFP transceiver 4 Link/Activity LED
