Redundant Power Supply Specifications
Enterasys 800-Series Hardware Installation Guide A-9
08A-RPS-130P Specifications
Table A-7 provides the specifications for the 08A-RPS-130P.
08A-RPS-150P Redundant Power Supply Connector
For pin location and function, refer to Figure A-1 and Table A-8, respectively.

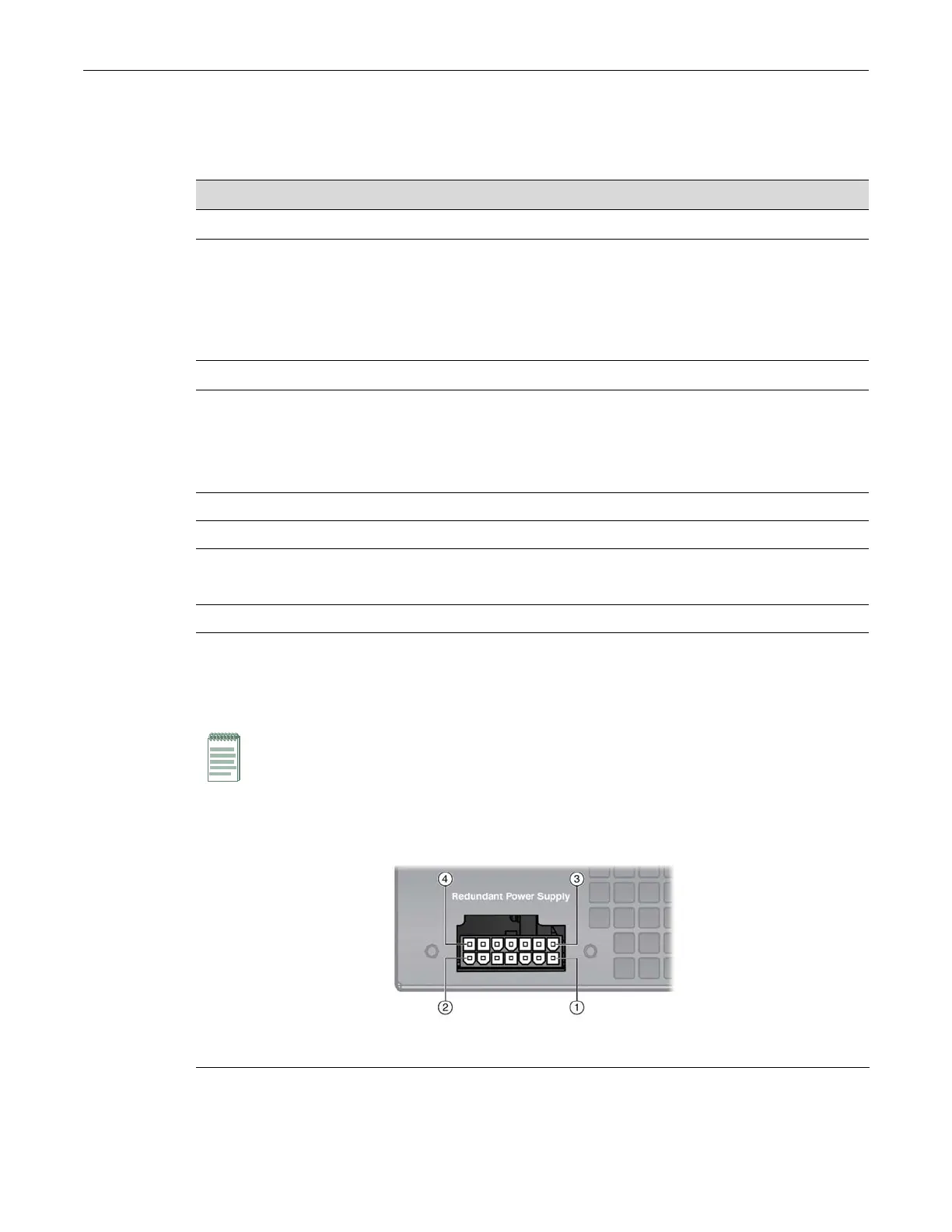

Figure A-1 08A-RPS-150P Power Supply Connector Pin Locations
Table A-7 08A-RPS-130P
Specifications
Item Specification
Electrical
AC Input Frequency Range
AC Input Voltage Range
Output Voltage
Output Current
Maximum Output Power
47–63 Hz
90–260 Vac
55Vdc
1.18 A min., 2.36 A max.
130 Watt
Physical
Dimensions 5.1 H x 8.8 W x 19.6 D (cm)
2.0 H x 3.5 W x 7.7 D (in.)
Net Weight (Unit Only)
Gross Weight (Packaged Unit)
0.86 kg (1.9 lb)
1.36 kg (3.00 lb)
MTBF 100,000 Hours
Environmental
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Relative Humidity 0% to 95%
Note: The following information is for troubleshooting purposes only. For proper operation, do not
use any other cable except the RPS cable supplied with the 08A-RPS-150P. This cable is specially
designed for this application and meets all necessary regulatory and safety standards. The use of
non-approved cables will void your warranty.
1 Pin 1 2 Pin 7 3 Pin 8 4 Pin 14
