Mounting the 8 Port Switches
2-20 Installation

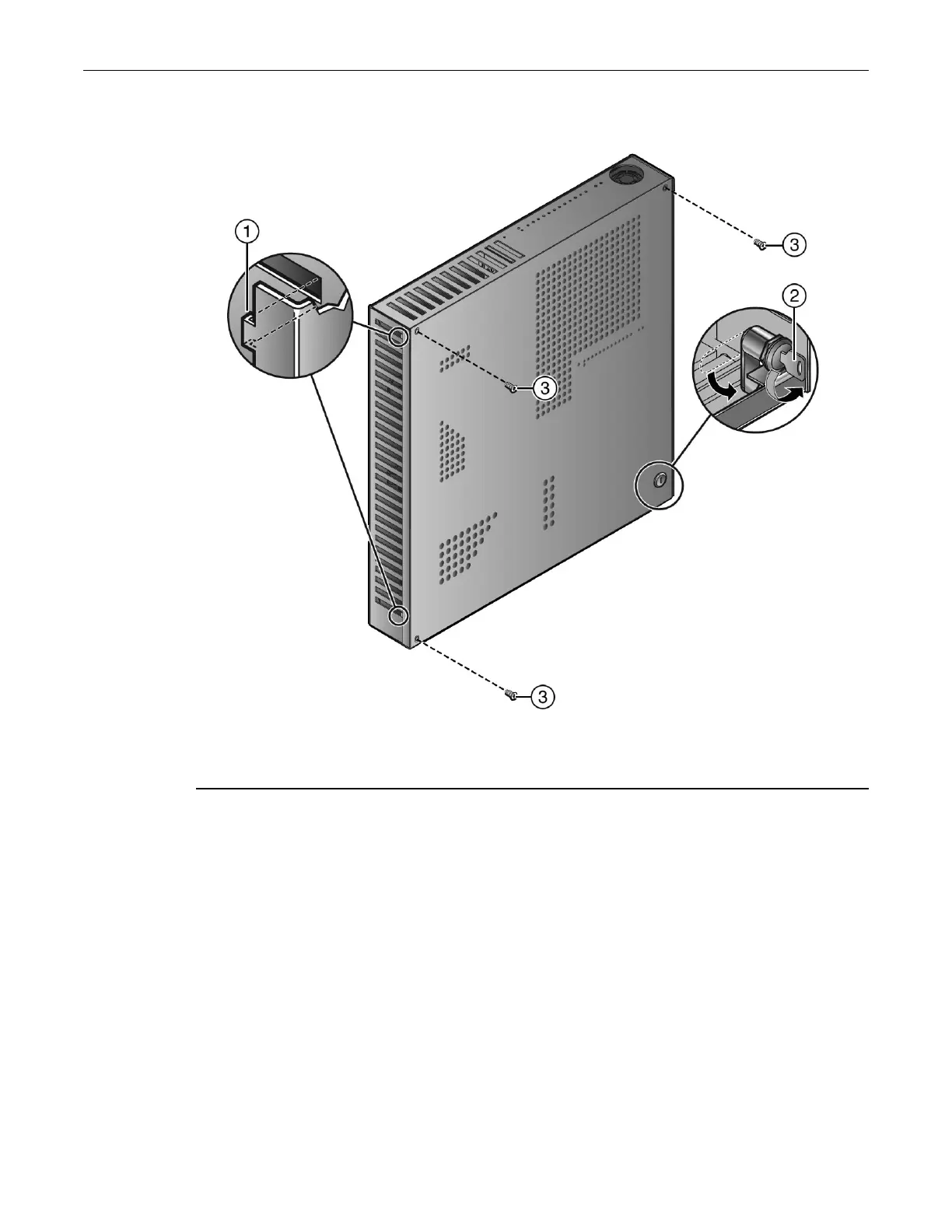

Figure 2-16 Attaching the 08G20G2-08 and 08G20G2-08P Lockbox Cover
1. Secure the cover over the top of the lockbox assembly by locking the mounting tabs over the
lip in the side of the mounting tray.
2. Slide the latch on the lock assembly to the position shown until it clicks into place.
3. Lock the lockbox by turning the provided key in the lock counter-clockwise.
4. Insert the three cover screws (provided) in the positions shown and tighten securely.
5. Return the lockbox key to a secure location.
Removing the Lockbox Cover
Remove the lockbox cover to access the 08G20G2-08 or 08G20G2-08P switch as follows:
1. Unlock the lock using your provided key.
2. Slide the latch on the lock assembly to the unlocked position.
3. Remove the three cover screws.
4. Unhook the cover from the mounting tabs and remove the cover.
1 Cover locking tabs 3 Cover fastening screws (three)
2 Latch and lock assembly (locking position)
