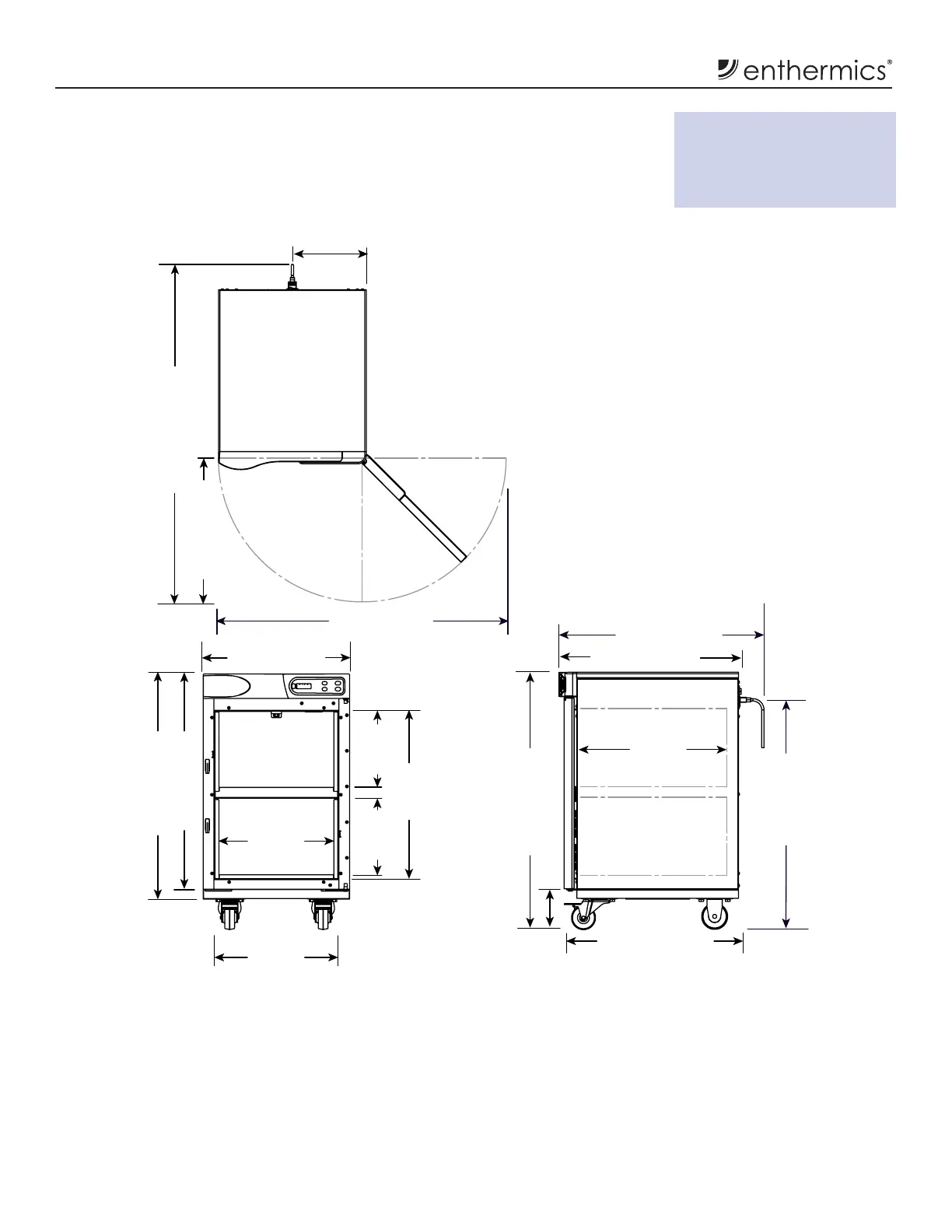

Dimension Drawings
DC350 with optional plate and casters
22.8" (580mm)
18.5" (470mm)
CAVITY
22.2" (563mm)
15.5" (394mm)
CAVITY
14.5" (369mm)
INSERT
18.5" (470mm)
21.1" (537mm)
CAVITY
9.6" (244mm)
INSERT
27.2" (691mm) 28.4" (722mm)
9.6" (244mm)
INSERT
5.0" (128mm)
32.2" (819mm)
9.3 " (235mm)
IEC Cord Inlet
18.0" (457mm)
42.3" (1073mm)
36.0" (914mm)
Cord length: 6 ft (1.83m) (est.)
28.8
" (730mm)
IEC Cord Inlet
25.7" (653mm)
Clearance requirements:
3" (76mm) from rear
1" (25mm) from top and sides
3/4" (19mm) from bottom
#5017542 (white epoxy coated) – 3" (76mm) casters (2 rigid, 2 swivel with brake)
#5017544 (stainless steel) – 3" (76mm) casters (2 rigid, 2 swivel with brake)
