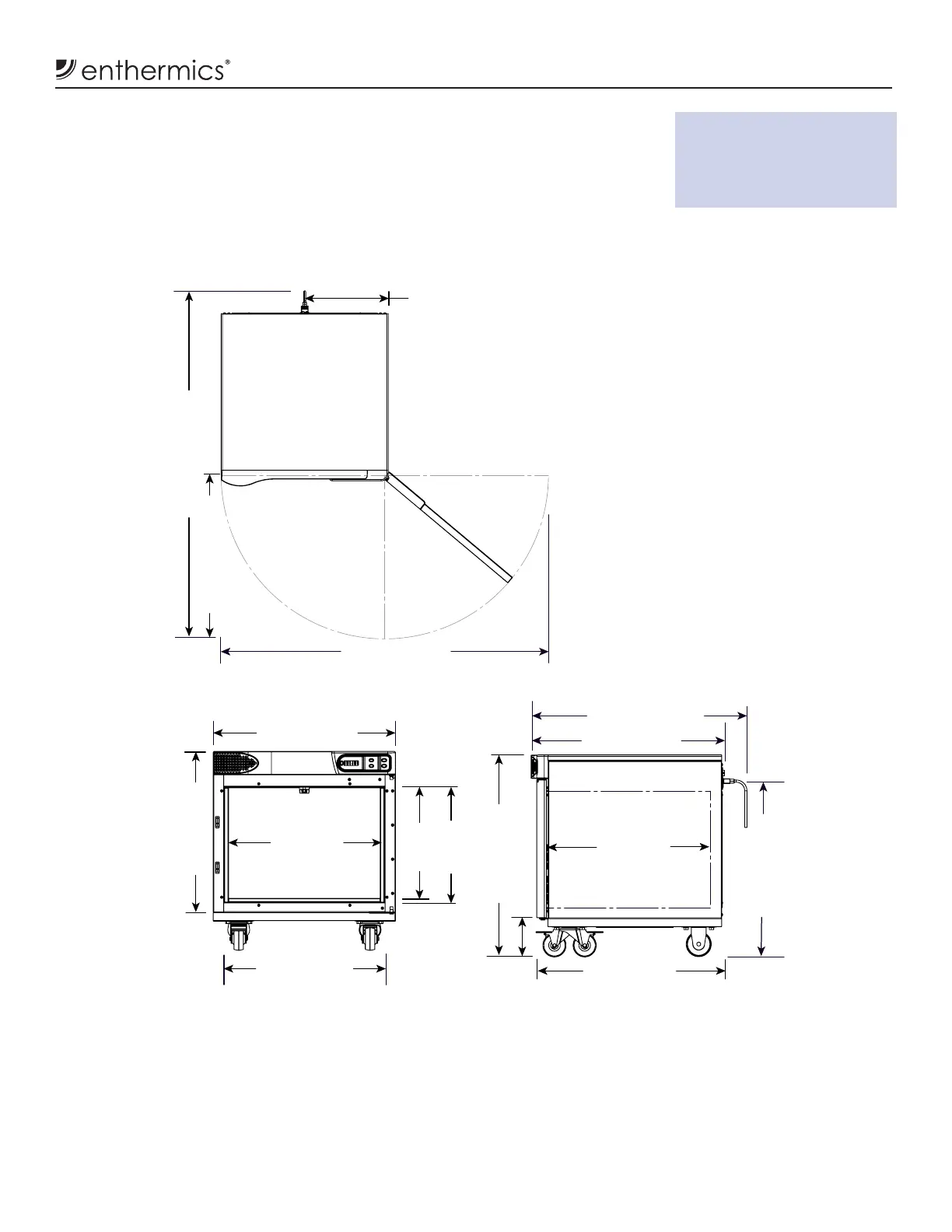

Dimension Drawings
DC400 with optional plate and casters
21.2" (538mm)
21.0" (533mm)
CAVITY
20" (507mm)
INSERT
14.6" (372mm)
INSERT
15.1" (384mm)
CAVITY
25.1" (638mm)
5.0" (128mm)
26.1" (664mm)
24.4" (621mm)
21" (533mm)
CAVITY
12 " (305mm)
IEC Cord Inlet
23.5" (597mm)
50.0" (1270mm)
47.0" (1194mm)
Cord length: 6 ft (1.83m) (est.)
22.8
" (578mm)
IEC Cord Inlet
28.0" (712mm)
24.0" (610mm)
Clearance requirements:
3" (76mm) from rear
1" (25mm) from top and sides
3/4" (19mm) from bottom
#5017543 (white epoxy coated) – 3" (76mm) casters (2 rigid, 2 swivel with brake)
#5017545 (stainless steel) – 3" (76mm) casters (2 rigid, 2 swivel with brake)
