35
MN-37072 • Rev 2 • 05/16 • Designer Series Blanket Warmer
Service
Part numbers and drawings are subject to change without notice.
Serial number is required for all inquiries.
Always include both model and serial number(s) in any
correspondence regarding the appliance.
Model: ______________________________________________
Serial Number: ______________________________________________
Purchased From: ______________________________________________
Date Installed: ____________________ Voltage: _____________

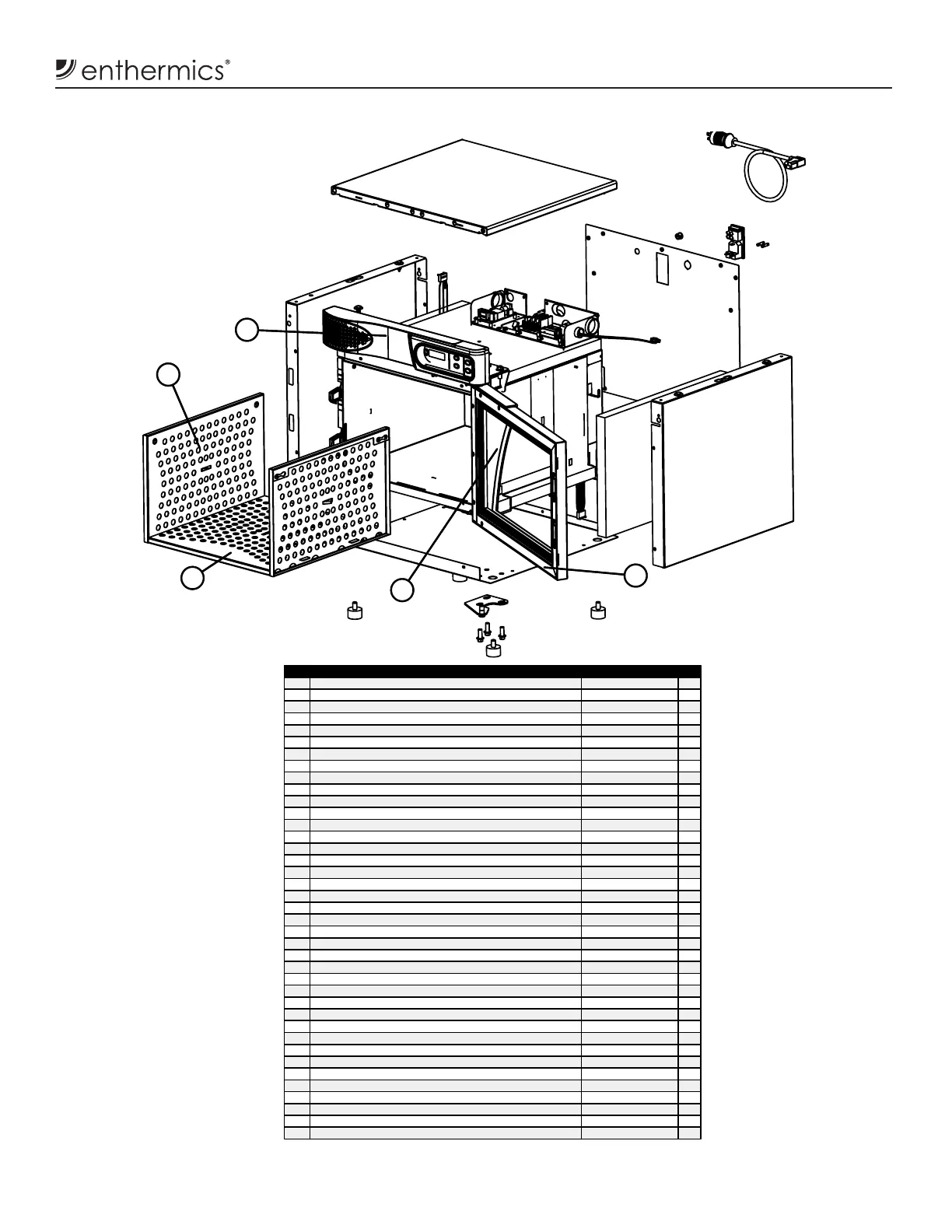

Full Assembly B
7
22
6
8
5
7
22
6
8
5
Item Description Part Qty
5 Blanket support bottom, 1.5
3
1011045 1
5a Blanket support bottom, 2.5
3
1011265 1
5b Blanket support bottom, 3.5
3
1011265 2
5c Blanket support bottom, 4.0
3
1011471 1
5d Blanket support bottom, 7.5
3
1011471 2
6 Blanket support side, 1.5
3
1012865 2
6a Blanket support side, 2.5
3
1012866 2
6b Blanket support side, 3.5
3
1012867 4
6c Blanket support side, 4.0
3
1011470 2
6d Blanket support side, 7.5
3
1011587 4
Interface assembly, 18.5" standard, painted 5015217 1
7a Interface assembly, 18.5" timer, painted 5015218 1
7b Interface assembly, 18.5" standard, stainless steel 5016719 1
7c Interface assembly, 18.5" timer, stainless steel 5016723 1
7d Interface assembly, 24" standard, painted 5015714 1
7e Interface assembly, 24" timer, painted 5015715 1
7f Interface assembly, 24" standard, stainless steel 5016720 1
7g Interface assembly, 24" timer, stainless steel 5016724 1
8 Door assembly, painted, 1.5
3
5018245 1
8a Door assembly, stainless steel, 1.5
3
5018250 1
8b Door assembly, painted w/ lock, 1.5
3
5018255 1
8c Door assembly, stainless steel w/ lock, 1.5
3
5018260 1
8d Door assembly, painted 2.5
3
5018246 1
8e Door assembly, stainless steel, 2.5
3
5018251 1
8f Door assembly, painted w/ lock, 2.5
3
5018256 1
8g Door assembly, stainless steel w/ lock, 2.5
3
5018261 1
8h Door assembly, painted, 3.5
3
5018247 1
8i Door assembly, stainless steel, 3.5
3
5018252 1
8j Door assembly, painted w/ lock, 3.5
3
5018257 1
8k Door assembly, stainless steel w/ lock, 3.5
3
5018262 1
8l Door assembly, painted, 4.0
3
5018248 1
8m Door assembly, stainless steel, 4.0
3
5018253 1
8n Door assembly, painted w/ lock, 4.0
3
5018258 1
8o Door assembly, stainless steel w/ lock, 4.0
3
5016410 1
8p Door assembly, painted, 7.5
3
5018249 1
8q Door assembly, stainless steel, 7.5
3
5018254 1
8r Door assembly, painted w/ lock, 7.5
3
5018259 1
8s Door assembly, stainless steel w/ lock, 7.5
3
5018264 1
22 Cover, door CONTACT FACTORY 1
7
