37
MN-37072 • Rev 2 • 05/16 • Designer Series Blanket Warmer
Service
Part numbers and drawings are subject to change without notice.
Serial number is required for all inquiries.
Always include both model and serial number(s) in any
correspondence regarding the appliance.
Model: ______________________________________________
Serial Number: ______________________________________________
Purchased From: ______________________________________________
Date Installed: ____________________ Voltage: _____________

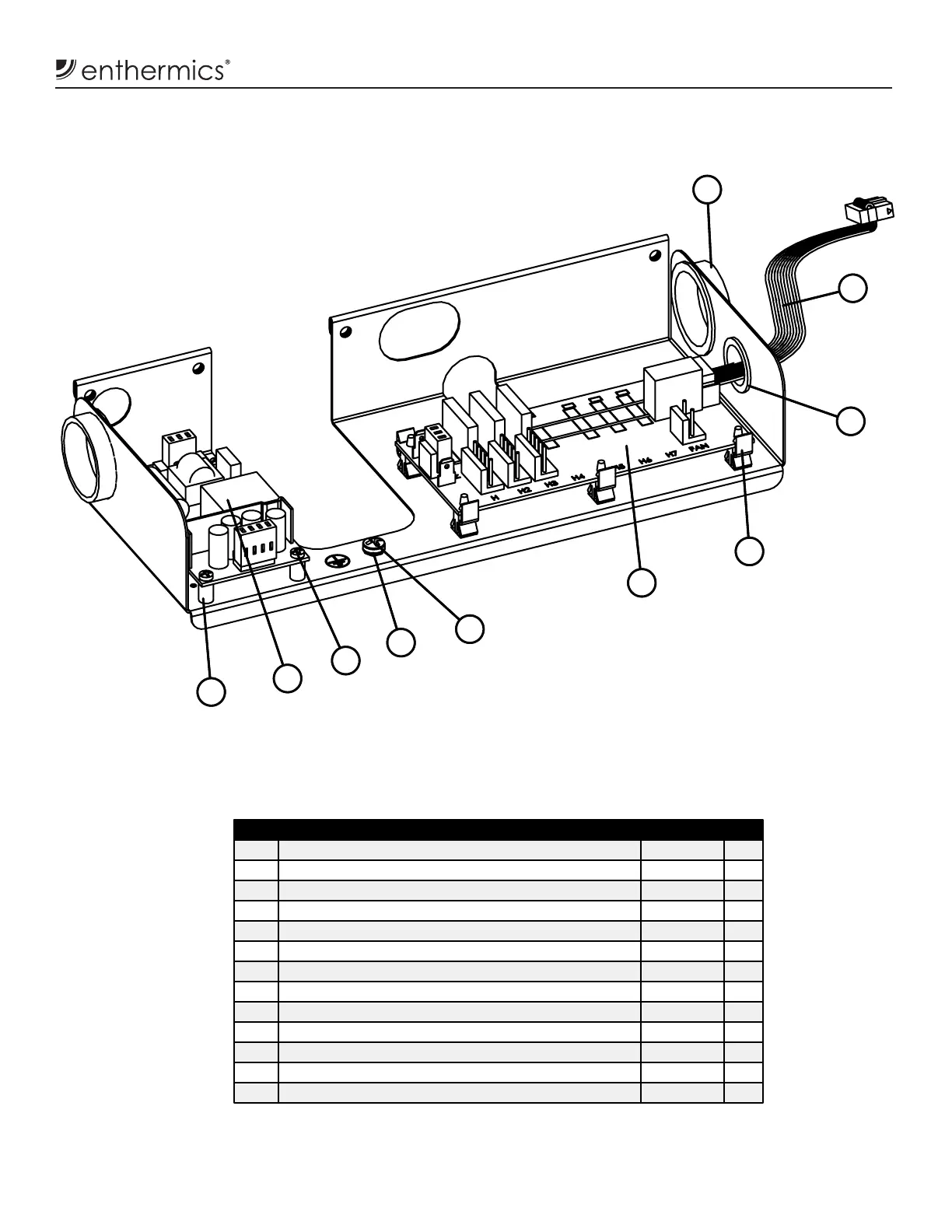

Electrical Chassis
4
10
11
5
3
9
7
2
6
8
4
10
11
5
3
9
7
2
6
8
Item Description Part Qty
2 Power supply, 20W, 5 volt DC BA-34965 1
3 Relay board, 3-zone, 120V, 1.5ft
3
/2.5ft
3
BA-35106 1
3a Relay board, 4-zone, 120V, 3.5ft
3
/4.0ft
3
/7.5ft
3
BA-35107 1
3b Relay board, 3-zone, 230V, 1.5ft
3
/2.5ft
3
BA-35109 1
3c Relay board, 4-zone, 230V, 3.5ft
3
/4.0ft
3
/7.5ft
3
BA-35110 1
4 Cable, relay board CB-35193 1
5 Clip, edge holding CL-35031 5
6 Screw, M3-0.5 x 16mm, phillips head SC-22270 4
7 Screw, pan phillips head, metric, M5 SC-36973 1
8 Spacer, 1/4" dia x 3/8" nylon SP-29425 4
9 Washer, interlocking WS-2467 1
10 Bushing, snap, 1-1/2" BU-3013 2
11 Bushing, snap, 7/8", black BU-3007 1
