MN-37072 • Rev 2 • 05/16 • Designer Series Blanket Warmer
Service
Part numbers and drawings are subject to change without notice.
Serial number is required for all inquiries.
Always include both model and serial number(s) in any
correspondence regarding the appliance.
Model: ______________________________________________
Serial Number: ______________________________________________
Purchased From: ______________________________________________
Date Installed: ____________________ Voltage: _____________

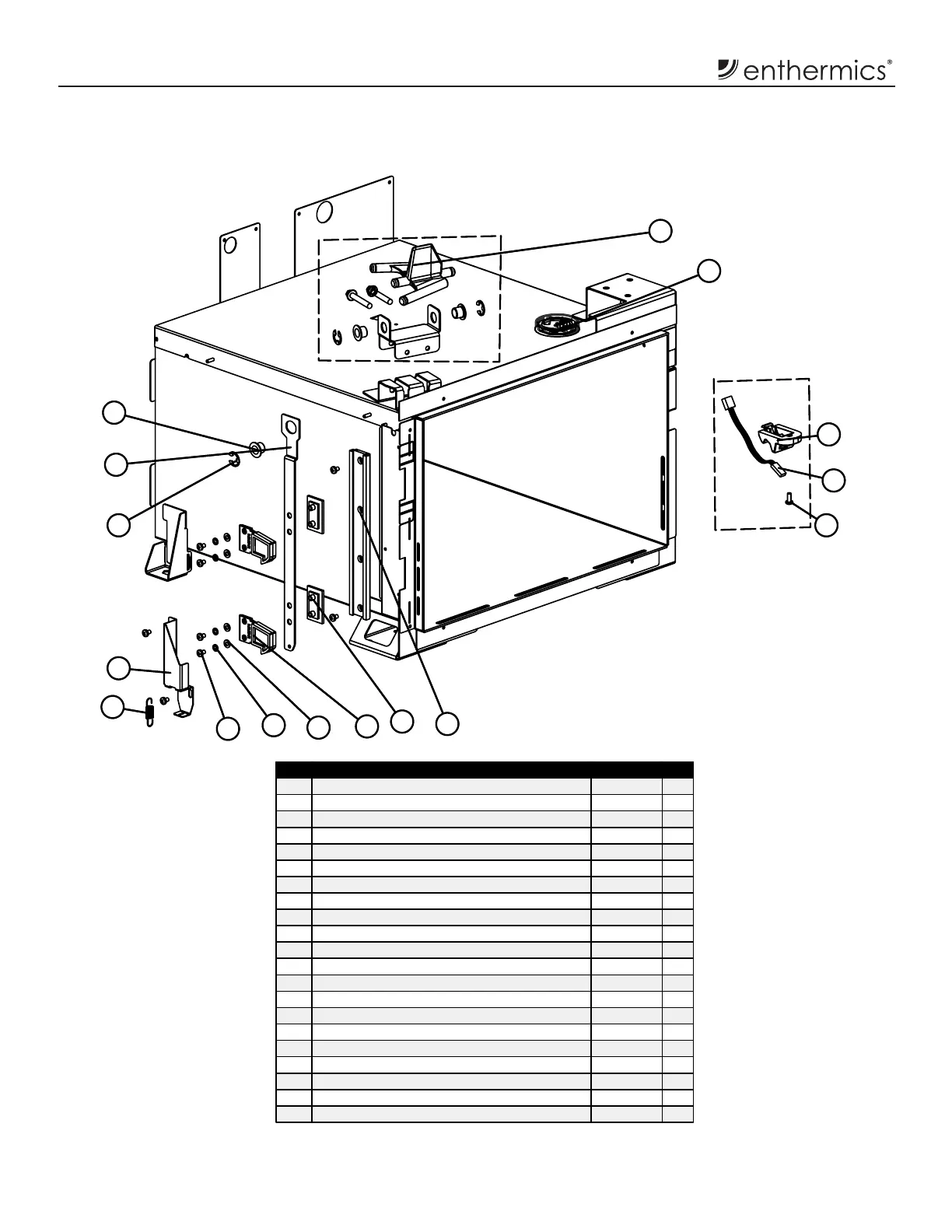

Door Latch & Sensor
10
4
2
12
3
1
13
15
8
6
7
9
16
5
14
11
10
4
2
12
3
1
13
15
8
6
7
9
16
5
14
11
Item Description Part Qty
1 Plate, latch pull, 1.5
3
1011197 1
1a Plate, latch pull, 2.5
3
/4.0
3
1011263 1
1b Plate, latch pull, 3.5
3
1011295 1
1c Plate, latch pull, 7.5
3
1011850 1
2 Guide, low profile rail, 1.5
3
GI-29204 1
2a Guide, low profile rail, 2.5
3
/3.5
3
/4.0
3
GI-29254 1
2b Guide, low profile rail, 7.5
3
GI-29409 1
3 Service kit, door button latch pivot assembly 5013640 1
4 LED assembly 5014852 1
5 Bushing BU-29206 1
6 Screw, M4 x 0.7 x 10mm pan SC-22273 1
7 Block, sensor mount BK-29882 1
8 Cavity sensor PR-37140 1
9 Screw, M4 x 0.7 x 6mm pan SC-22271 8
10 Washer, M4 split lock WS-22300 4
11 Clip CL-29257 1
12 Guide, low profile carriage GI-29205 2
13 Latch, hook LT-29174 2
14 Spring, extension SD-28513 1
15 Washer, flat M4 18-8 s/s WS-22294 4
16 Housing, latch spring support 1011163 1
