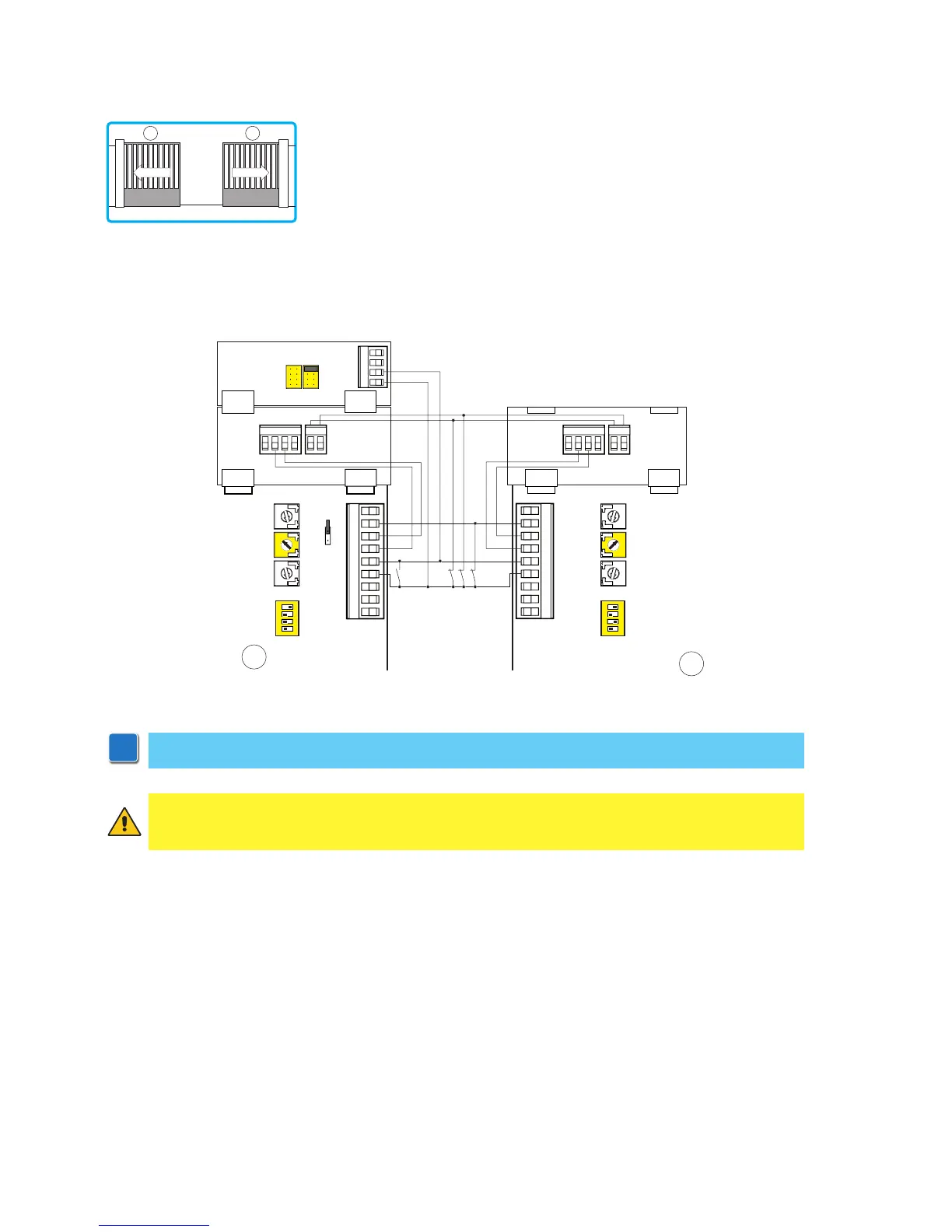

It is possible to command two automations [A] and [B] side by side,
making the connections indicated in figure.
Commands 1-5 and the remote control (with DIP1=ON) are equivalent
to a total opening command.
To manage both automations with a single remote control, do not use
the radio receivers on the control panels, but insert a BIXLR22 receiver.
The automatic closing is obtained by regulating the TC trimmer not at the maximum, and in the
same position in both control panels.
11. Example of automation in parallel
R1
<MAX
TMTC
JR3
12 11 01568941
1
ON
234
R1
<MAX
TM TC
121101568941
1
ON
234
0
6841
6
8
SWT
OUT2
0
6841
6
8
SWT
BIXLR22
JR1 JR2
E1A
A
E1A
B
A B
i
NOTE: the opening and closing movements are not synchronised.
ATTENTION: in the absence of safety edges SOFA1-SOFA2, connect commands 1-6 and
1-8 to the SWT card.
