40
IP2045EN - 2014-09-22
R1
MAX
TC TM
12
12 011
11 01568941
1
ON
234
6>4
Closing
Opening
Limit switch
Limit switch
A
C
J12
PT3
JR6
R1
MAX
TC TM
12
12 011
11 01568941
1
ON
234
6>4
Closing
Opening
Limit switch
Limit switch
A
C
J12
PT3
AUX
SOFA1
OUT1
141IN1
JR6

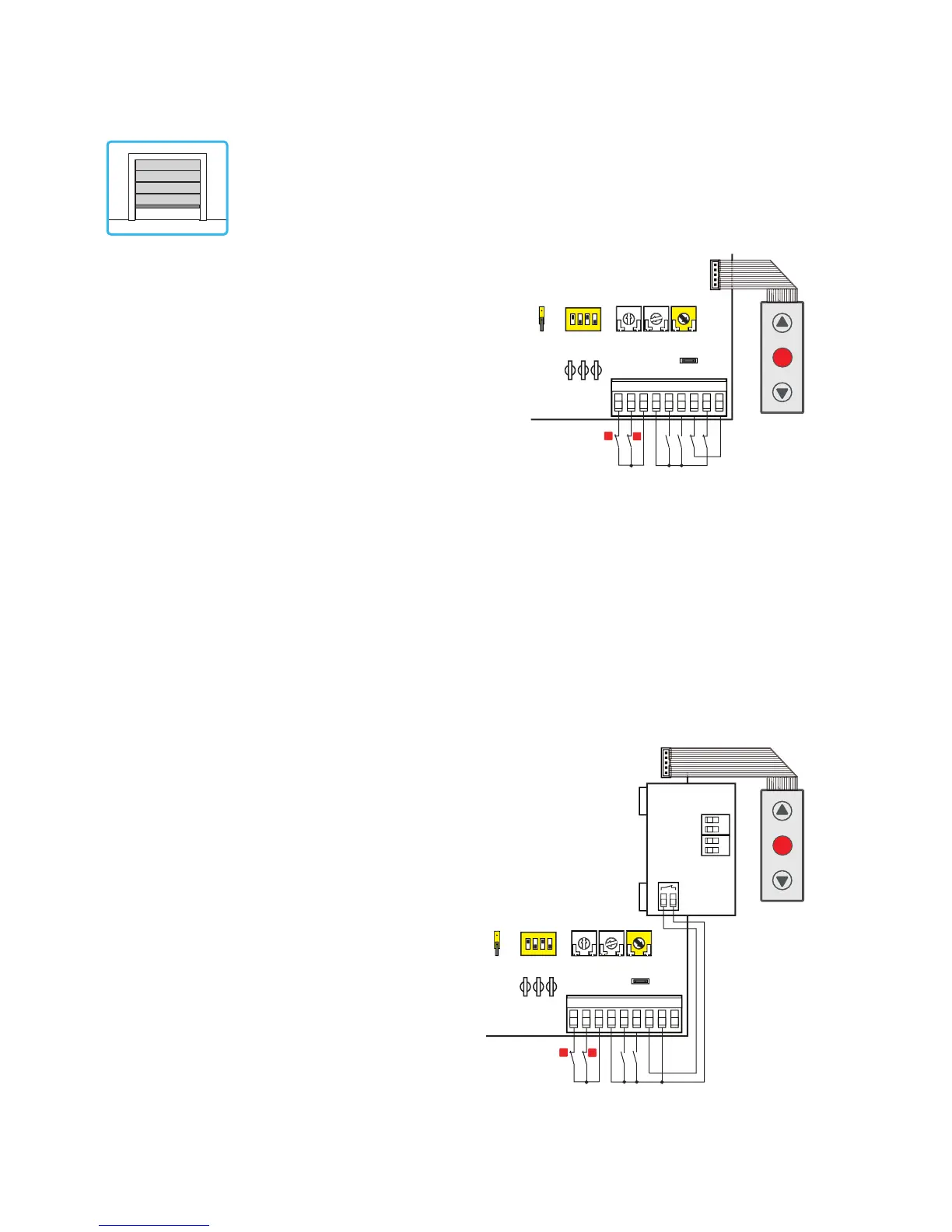

14. Application example for sectional
overhead doors
(Example 1)
When the control panel is used in applications for
sectional automations:
- set TM=MAX;
- connect opening and closing limit switches N.C.
contacts to terminals 0-11-12:
- select the opening control by means of DIP1=ON;
- select the direction of the movement by means of
DIP2=OFF;
- select the closing control by setting 6→4=OFF.
- set JR6=ON;
NOTE: to use electronic control panel in hold to run
mode, disconnect terminal 9.
In this case, the opening (1-5) and the closing (1-6)
controls operate only if kept pressed, if released the
automation will stop.
Automatic closing and radio remote controls are
disabled.
(Example 2)
If you have connected the self-controlled safety edge
SOFA1 in closing, it is possible to make the following
connections:
- set TM=MAX;
- connect opening and closing limit switches N.C.
contacts to terminals 0-11-12:
- select the opening control by means of DIP1=ON;
- select the direction of the movement by means of
DIP2=OFF;
- select the closing control by setting 6→4=OFF;
- set SO=OFF.
