2.2.1 Outline dimensions
 For the outline dimensions of the unit, please refer to Fig.2-1 and Table 2-3.

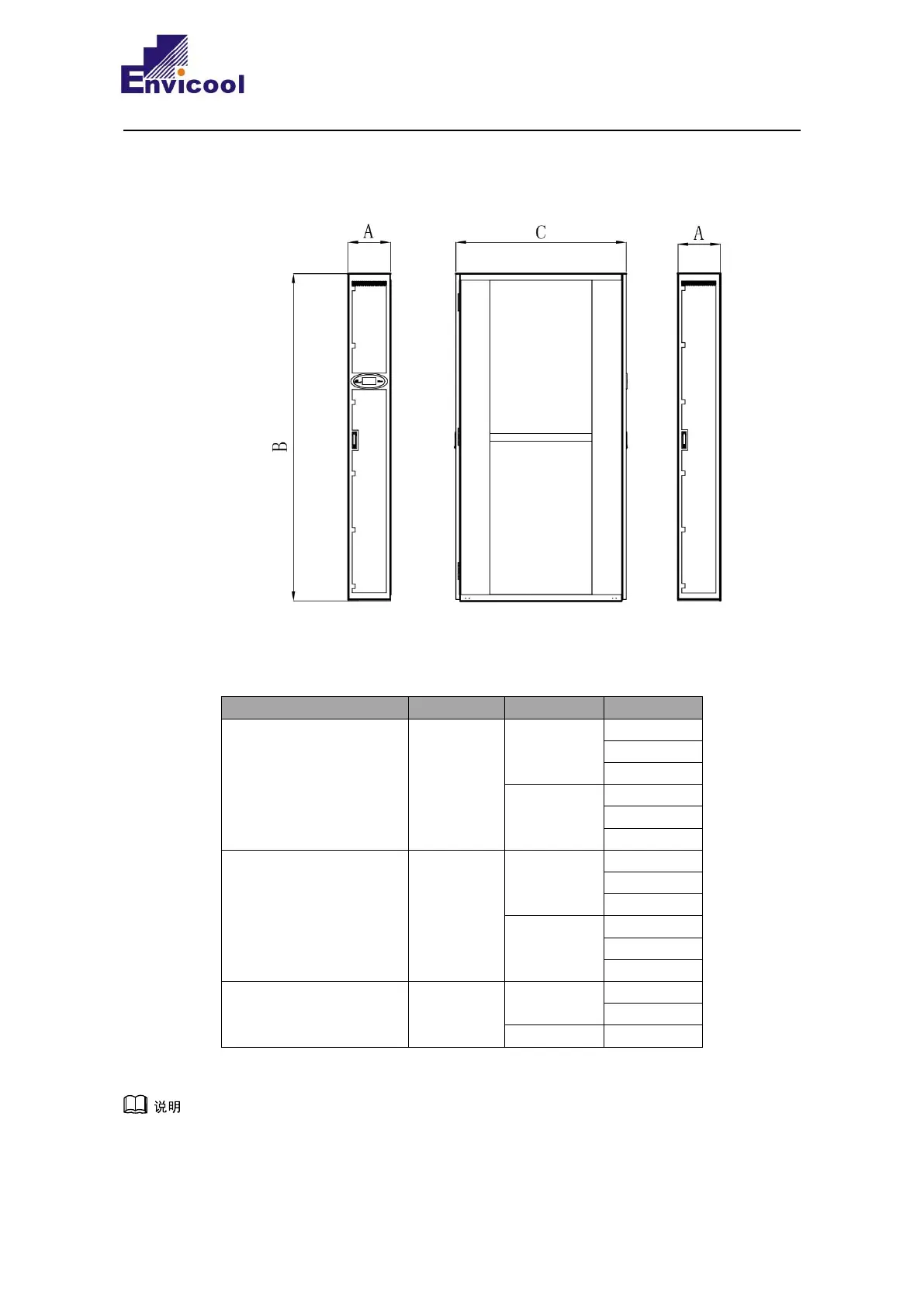

Fig. 2-1 Schematic diagram of the overall dimensions of the indoor unit
Table 2-3 Dimensions of the indoor unit (unit: mm)
机型
A
B
C
XR023A
300
2000
1000
1100
1200
2200
1000
1100
1200
XR040A
600
2000
1000
1100
1200
2200
1000
1100
1200
XR050A
600
2000
1100
1200
2200
1200
At present, the depth of the indoor unit is 1200mm in the unit with pump cabinet system.
