2.3 Installation of indoor/outdoor unit
2.3.1 Fixing of indoor unit / IF pump cabinet
Remove the indoor unit/pump cabinet case and transport pallet, and move the unit to the
installation site. The indoor unit is reliably fixed on the indoor floor through the foot cup and is
leveled. In order to ensure the normal operation of the unit, the entire unit must be kept level.
2.3.2 Fixing of outdoor unit
Remove the outdoor unit chassis and transport pallet, and secure the outdoor unit on the
outdoor ground with expansion bolts. The location of the outdoor unit should be as safe as
possible and easy to maintain. Do not place it on the ground floor in public places.
In order to ensure sufficient heat dissipation, the outdoor unit should be placed horizontally in
a clean place, away from dust and foreign objects, because they may block the coil. The
outdoor unit cannot be placed near steam, hot steam, or waste hot steam, and a distance of more
than 500mm from walls, obstacles or nearby equipment should be kept. The equipment should
not be placed where heavy snow may accumulate at the air inlet and outlet.
2.3.3 Installation of cryogenic components
The low-temperature component is installed between the indoor unit and the outdoor unit (see
schematic diagram), and the low-temperature component is reliably fixed to the
outdoor/indoor bracket with expansion bolts. The location of low-temperature components
should be as safe as possible and easy to maintain. Do not place it on the ground floor in public
places.
The installation dimensions are shown in Figure 2-17. It is recommended to use 4 M8 screws
for installation and fixation.

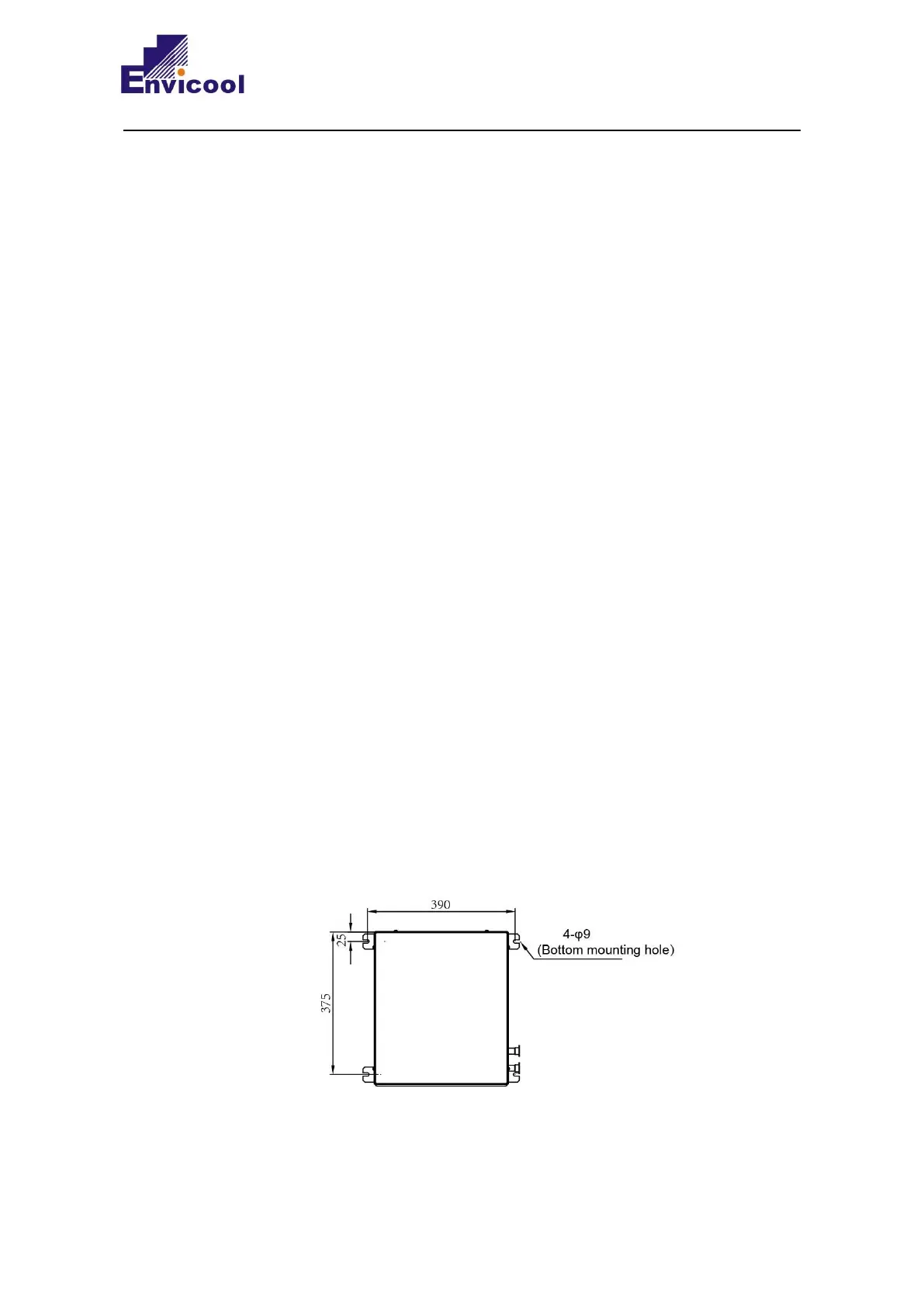

Fig. 2-17 Schematic diagram of installation at the bottom of cryogenic components(unit: mm)
