Shenzhen Envicool Technology Co., Ltd.
The space requirements for installation and maintenance of XRow series inter-row
air-conditioning pump cabinet units are shown in Figure 2-16.

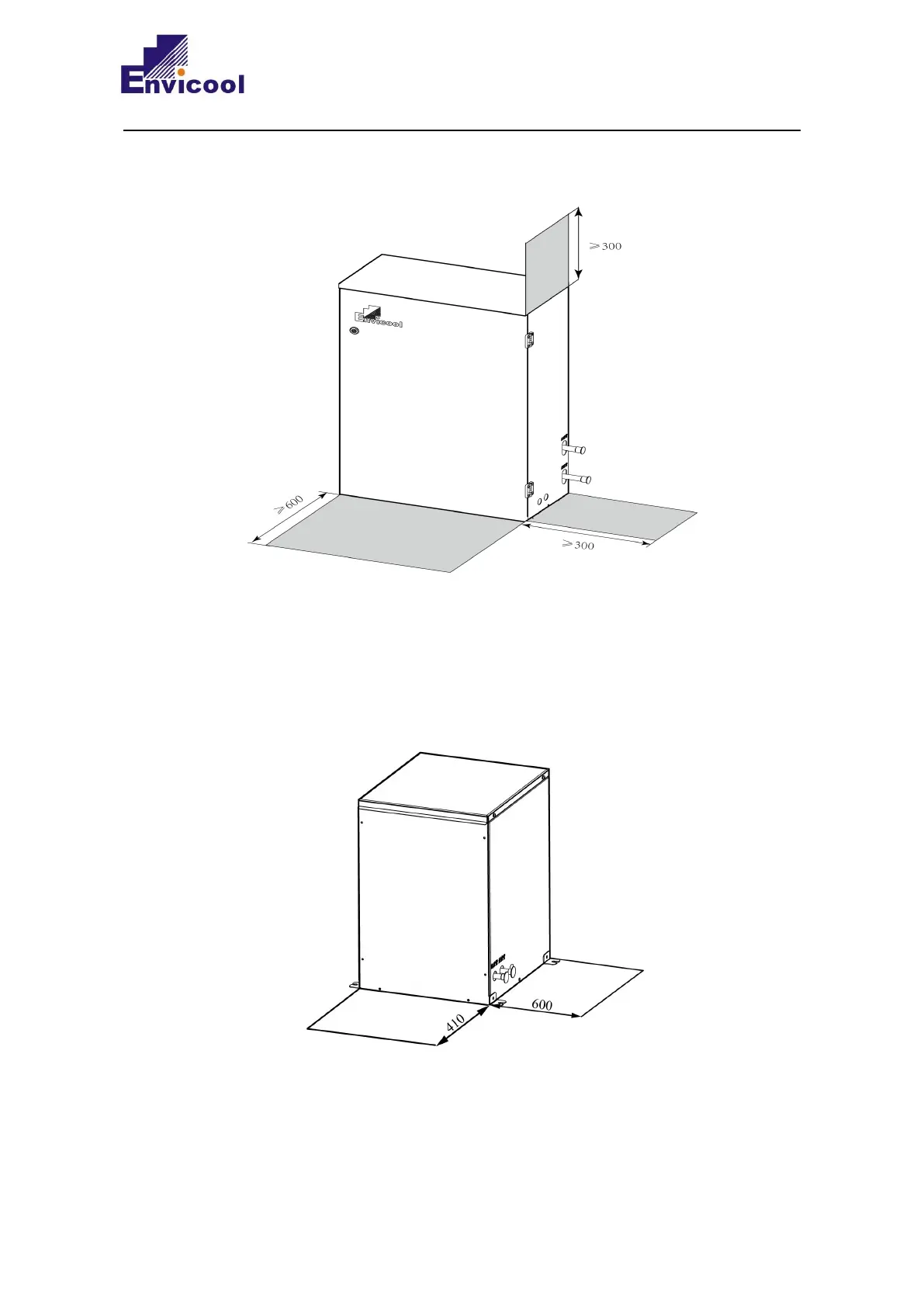

Fig. 2-15 Schematic diagram for the installation and maintenance space of the IF pump
cabinet(unit: mm)
XRow air conditioner low-temperature components installation and maintenance space
requirements, as shown in Figure 2-16.
Fig. 2-16 Schematic diagram of installation and maintenance space for cryogenic components
(unit: mm)
