Pulse oximeter MySign
®
S

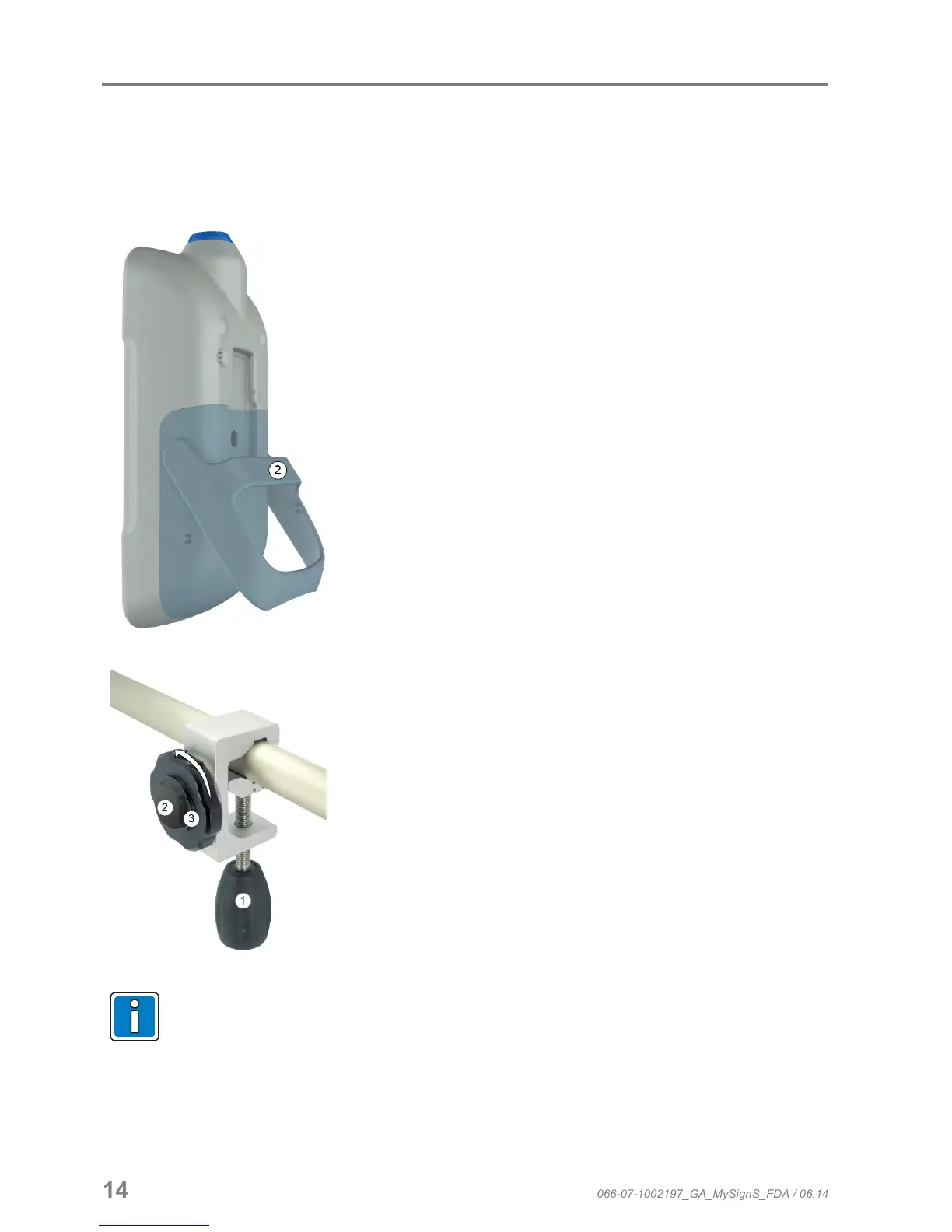

4.6 Set up / mounting
The MySign
®
S must be set up / mounted as per the requirements at the place of use, on an even surface or using
the universal holder (optional, Part No. 1001801) for all profiles.
Fold out the support provided on the MySign
®
S d and set up the
unit.
Hold the fixed tension arm against the bed frame, for example, and
attach the holder by turning the threaded spindle c in a clockwise
direction.
Now insert the holder’s mounting plate into the guide d on the back
of the MySign
®
S and fasten by turning the hand wheel e in a
counter-clockwise direction.
The device must be positioned so that the optical and acoustic alarm signals can be recognized from
a minimum distance of 4 m.
14 066-07-1002197_GA_MySignS_FDA / 06.14
