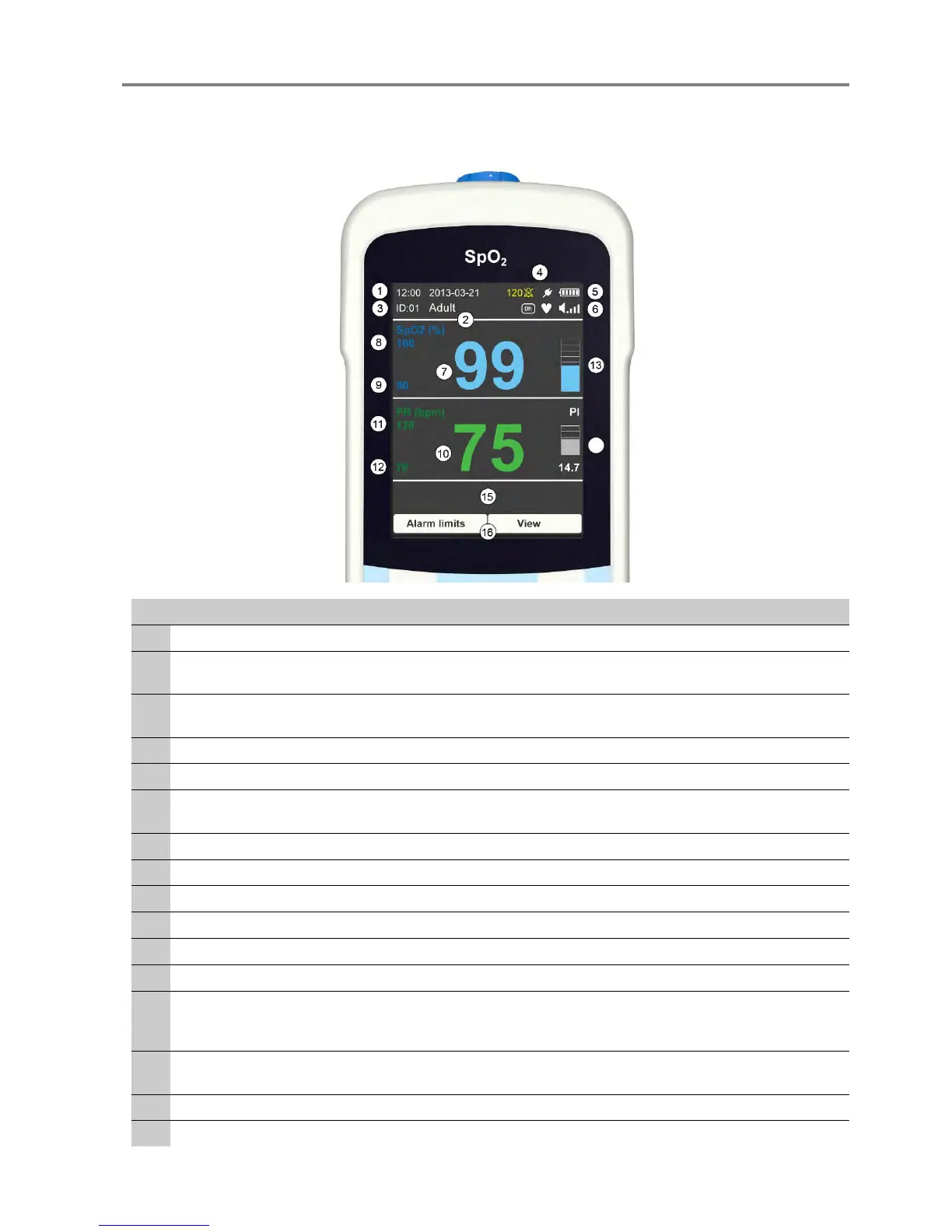

No. Description
1 Date and time indicator
2
Patient type: Shows the preset patient type (adult or child).
Also see section “Patient type”.
3
ID (identification): Shows the current measurement series number.
Also see section “Measurement series”
4 Symbols: See additional table for explanation (5.4)
5 Battery status indicator: See section “Alarm messages”
6
Pulse sound volume: Shows the current volume of the pulse sound. This can be adjusted or switched
off with the select keys “UP” and “DOWN”.
7 Current SpO2 measurement value
8 Upper SpO2 alarm limit
9 Lower SpO2 alarm limit
10 Current pulse measurement value
11 Upper pulse alarm limit
12 Lower pulse alarm limit
13
Bar graph: Shows the plethysmogram as a bar graph and indicates the signal quality with color changes.
Blue means good signal quality, yellow moder
disruptions”
14
Pulsation index (PI): A the ratio of the pulsatile signal (i.e. due to blood pulsation) to the non-pulsatile
signal obtained at the measuring site. < 1 means poor/low pulsation at the measurement site.
15 Information field: Also see “Information” section.
16 Description of the function keys
066-07-1002197_GA_MySignS_FDA / 06.14 17
