Epever MPPT - Connection Diagrams; Model Numbering System; Wiring Diagram: Battery Mode

7

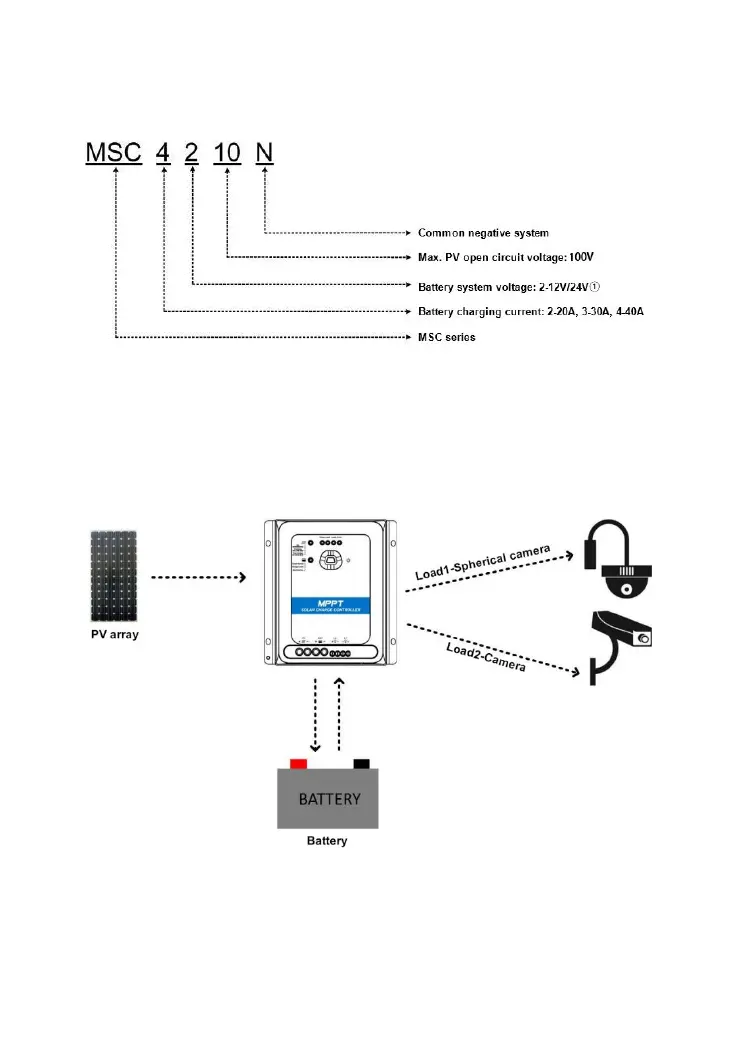

1.3 Naming rules
① For MSC4210N and MSC4215N, the rated voltage of the battery supports 24V only. For other MSC-
N types, the rated voltage of the battery supports both 12V and 24V.
1.4 Connection diagram
1.4.1 Battery mode
