Epever MPPT User Manual

6

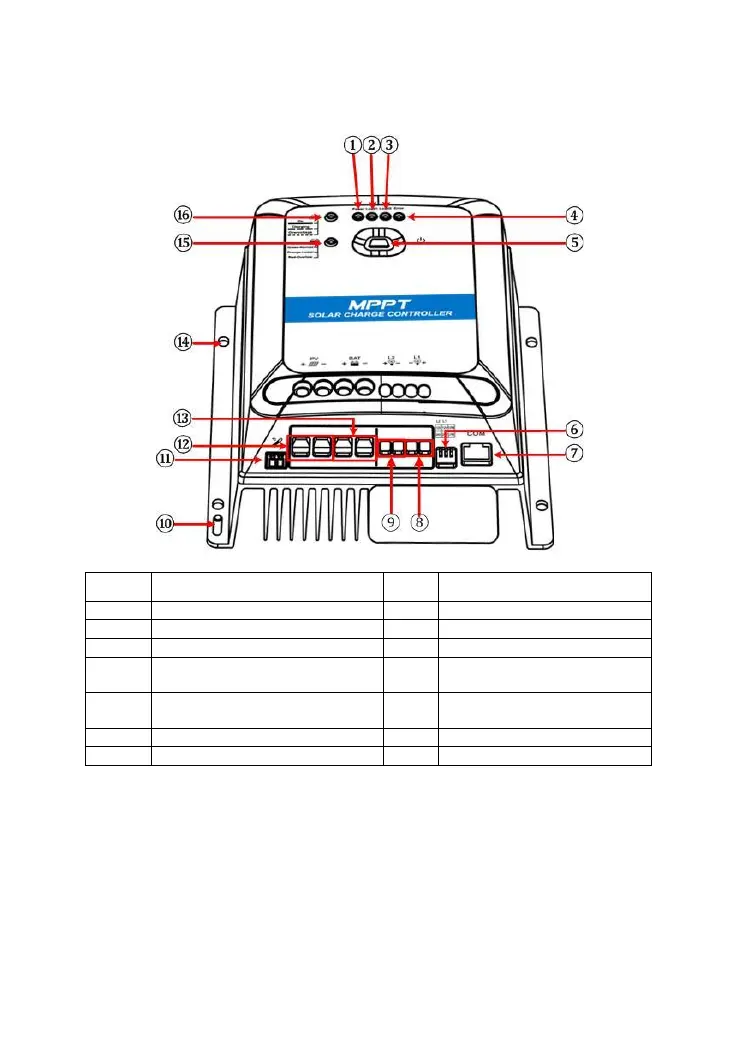

1.2 Identification of parts
①
Power Indicator
⑨
Load 2 Terminals
②
Load 1 indicator
⑩
Grounding terminal
③
Load 2 indicator
⑪
RTS interface
④
Error codes
⑫
PV Terminals
⑤
Load ON/OFF and setting
button
⑬
Battery Terminals
⑥
Load 1/Load 2/Prior Mode
enable switch
⑭
Mounting Hole *4
⑦
RS485 communication port
⑮
Battery indicator
⑧
Load 1 Terminals
⑯
PV Indicator
If the remote temperature sensor is not connected to the controller or
damaged, the controller will charge or discharge the battery at the default
temperature setting of 25 ºC(no temperature compensation).

Epever MPPT Specifications

General

Display	LCD
Type	Solar Charge Controller
Nominal System Voltage	12V/24V Auto (depending on the model)
Max Charging Current	10A to 40A (depending on the model e.g., 10A for Tracer1210AN)
Communication	RS485
Rated Battery Voltage	12V/24V Auto
Protection Features	Over Voltage, Reverse Polarity, Over Discharge, Over Heating, Over Load
Efficiency	Up to 98%
Dimensions	Varies with model.
Model	Tracer AN series (e.g., Tracer1210AN, Tracer2210AN, Tracer3210AN, Tracer4210AN, Tracer1215AN, Tracer2215AN, Tracer3215AN, Tracer4215AN)
