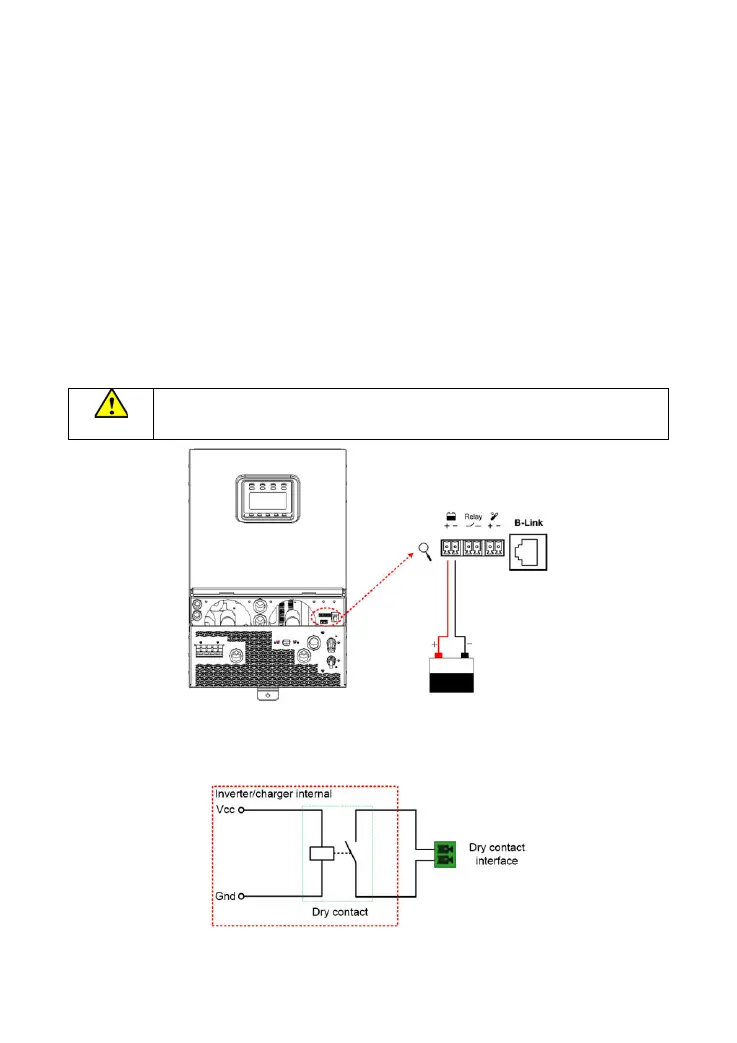

7) Connect accessories
A. RBVS interface
Function
：
This interface can be connected to the battery voltage sampling wire to detect the battery voltage
accurately. The sampling distance is no longer than 20 meters.
Needs:
3.81-2P terminal 1 pcs
Positive and negative(red+, black-) wire 1 pcs each (determine the length and wire size of the connecting
wire according to the customer's actual needs.)
Making the RBVS wire:
One end of the positive and negative wire is connected to the 3.81-2P terminal. The other end is connected
to the positive and negative terminals of the battery.
When connecting the RBVS wire, ensure the positive and negative poles (red +, black
-).
B. Dry contact interface
Function
：
The dry contact interface can turn on/off the generator and is connected parallel with the generator's switch.
