2.5 Wiring
1) Remove the terminal cover

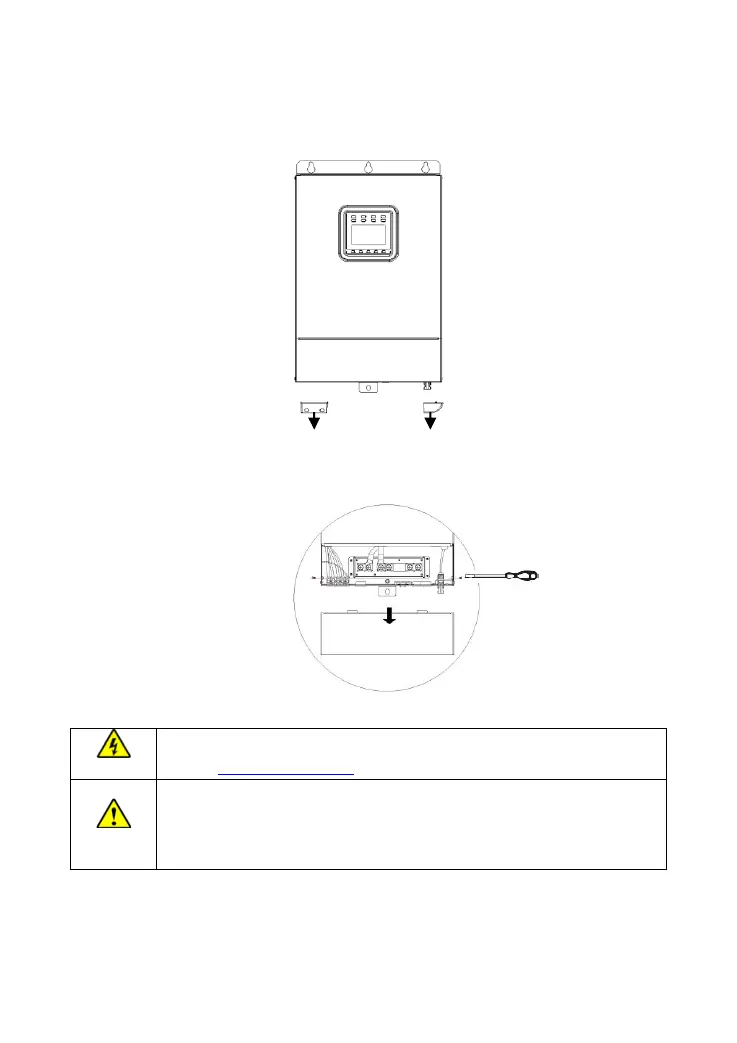

Remove covers of the AC output /AC input/utility input terminal with a screwdriver, as shown below:
2) Remove the inverter/charger cover
Remove the screws beside the inverter/charger with a screwdriver, as shown below:
3) Connect the battery
A circuit breaker must be installed on the battery side. For selection, please refer to
chapter "
2.2.2 Prepare modules ".
When wiring the battery, please disconnect the circuit breaker and ensure that the
leads of "+" and "-" poles are connected correctly.
A circuit breaker current is 1.25 to 2 times the rated current must be installed on the
battery side away from the battery not longer than 200mm.
Connection sequence of the battery
Step1: Remove the screw of the inverter/charger positive terminal with a sleeve, the torque of which is
3.5N.M.
