13
 User manual 1ps
 Included accessories 1pcs(Details refer to the "Accessories list" file shipped with the
inverter/charger.)
2.2.2 Prepare modules
1) Battery

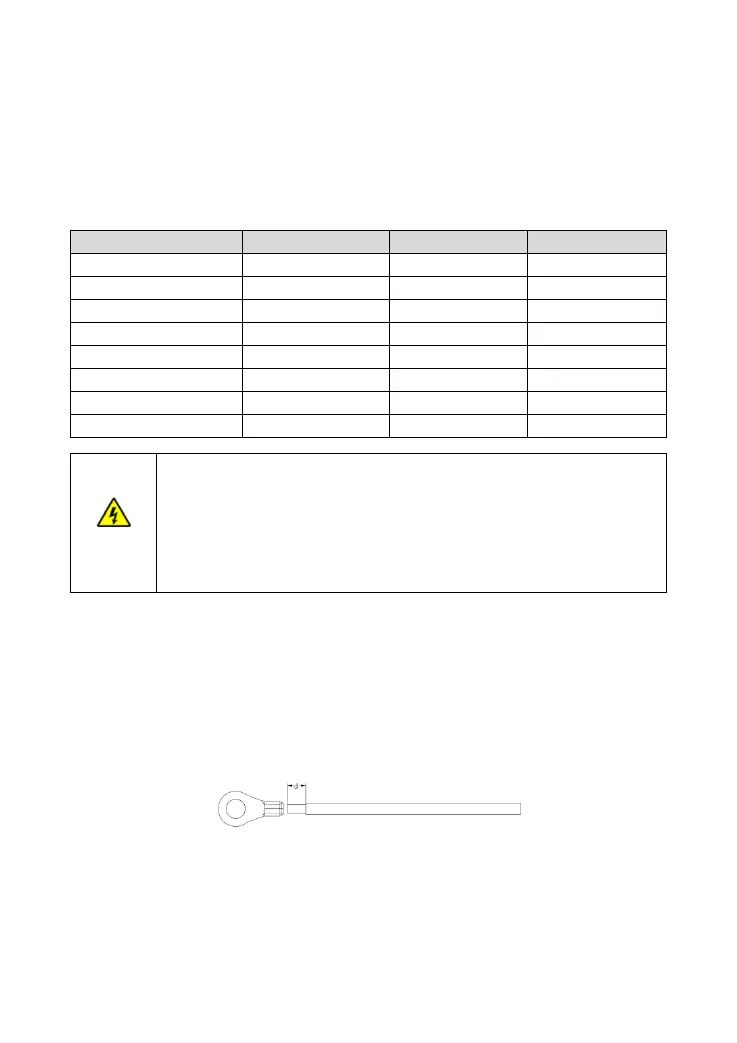

 Recommended wire size of the battery and the circuit breaker is as below.
Model
Battery wire size
Circuit breaker
Ring terminal
UP2000-HM6021
20mm
2
/4AWG
2P—125A
RNB38-8S
UP2000-HM6022
20mm
2
/4AWG
2P—125A
RNB38-8S
UP3000-HM5041
16mm
2
/5AWG
2P—100A
RNB22-8
UP3000-HM5042
16mm
2
/5AWG
2P—100A
RNB22-8
UP3000-HM8041
16mm
2
/5AWG
2P—100A
RNB22-8
UP3000-HM10021
35mm
2
/1AWG
2P—200A
RNB38-8S
UP3000-HM10022
35mm
2
/1AWG
2P—200A
RNB38-8S
UP5000-HM8042
35mm
2
/1AWG
2P—200A
RNB38-8S
WARNING
 The actual battery wire size must be no less than the recommended wire size!
 If the actual battery wire size is less than the recommended wire size, a circuit
breaker, whose current determined by the actual load current, must be installed on
the battery side.
 We are not liable for any damage caused by the choice of inappropriate wire size
and the absence of circuit breaker or external fast-acting fuse.
 Making the battery connection wire
Step1: Ring terminal 2pcs (included accessories).
Step2: Battery positive and negative connection wires 2 pcs(red +, black -). The wire length is determined
according to the customer's actual requirement.
Step3: Strip one end of the battery connection wire for about d mm (size d is determined according to
the ring terminal).
Step4: Pass the exposed wire through the ring terminal, and secure the wire firmly with a wire clamp.
