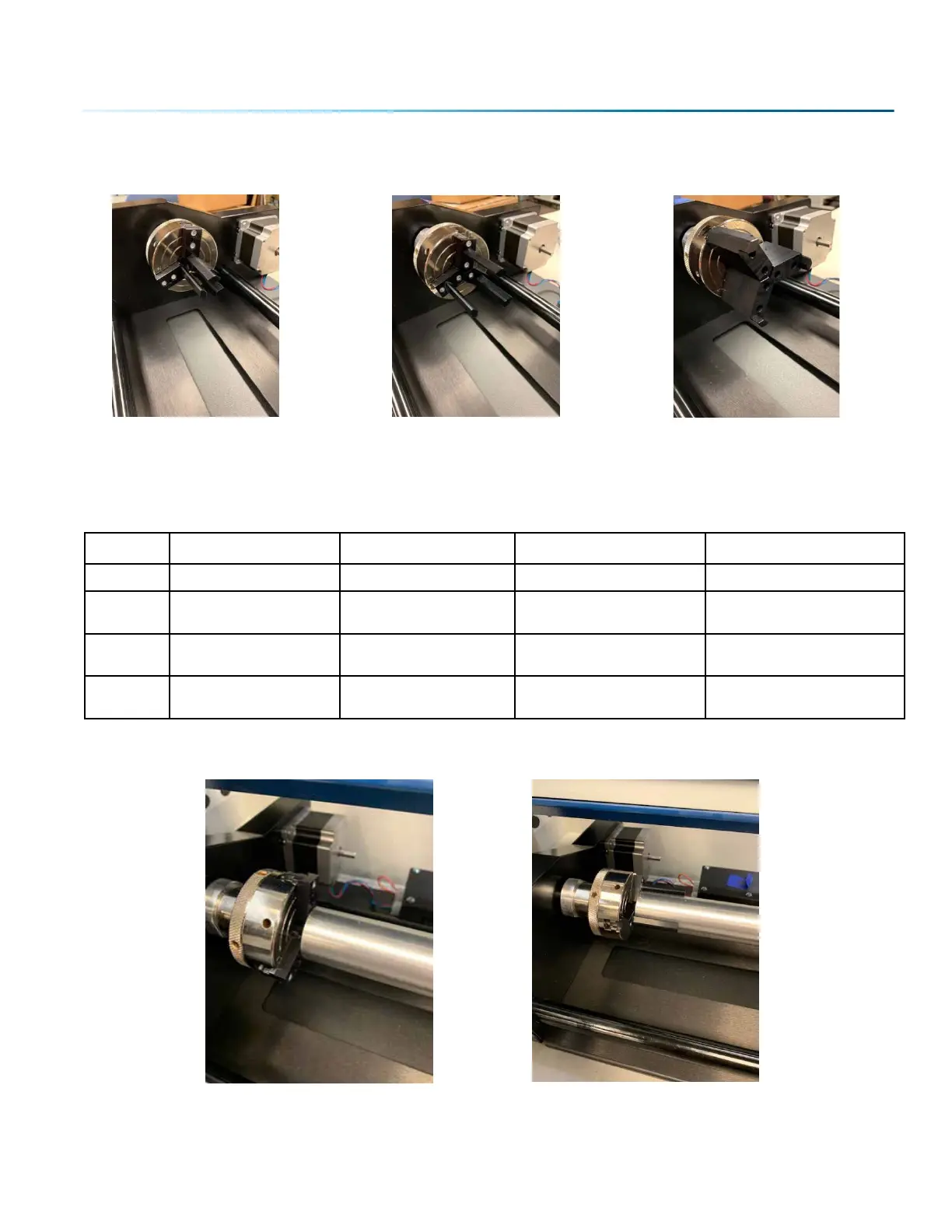

3. Select Appropriate Jaw for Size of Component:
Small Jaw Set Medium Jaw Set Large Jaw Set
3-Jaw Chuck Size Ranges (inches)
Inside Diameter (ID) Inside Diameter (ID) Outside Diameter (OD) Outside Diameter (OD)
Minimum Maximum Minimum Maximum
Small
Jaw
0.48” 1.72” 0.04” 1.28”
Medium
Jaw
1.50” 2.74” 1.06” 2.30”
Large
Jaw
2.52” 3.76” 2.06” 3.30”
4. Clamp your Cylinder: Insert your cylinder into the 3-Jaw Chuck and tighten the chuck so the
cylinder is held firmly in place.
Cylinders can be held from the inside diameter (le picture) or the outside diameter (right picture).
- 137 -
SECTION 9: OPTIONAL FEATURES
