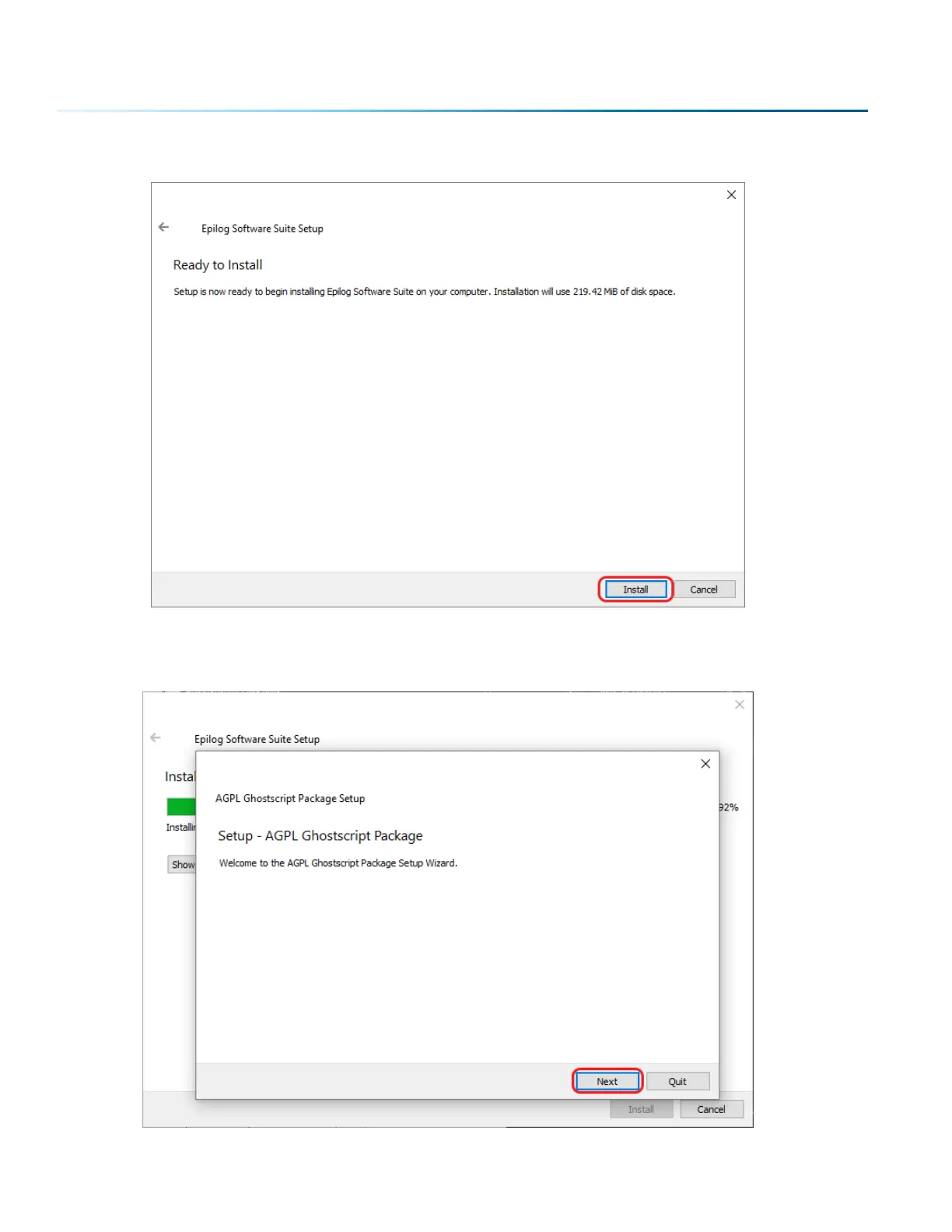

7. Click Install to begin the installation.

8. The Epilog Soware Suite will begin installing, during the installation a dialog box will pop up to

also install the AGPL Ghostscript Package, click Next.

- 28 -

SECTION 3: SOFTWARE INSTALLATION
