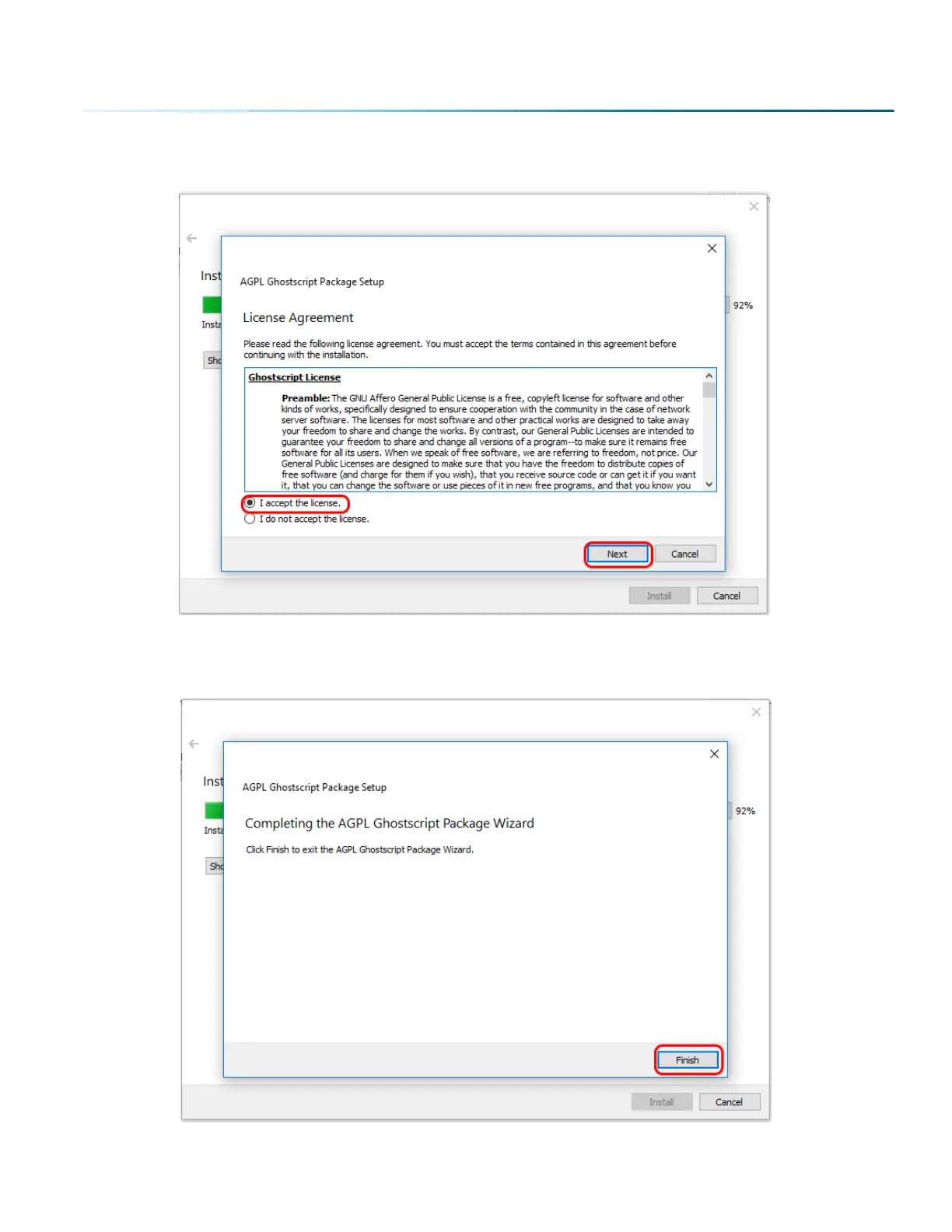

9. Read and accept the AGPL Ghostscript License Agreement, then click Next.

10. Click Finish to complete the AGPL Ghostscript installation and resume the Epilog Soware Suite

installation.

- 29 -

SECTION 3: SOFTWARE INSTALLATION
